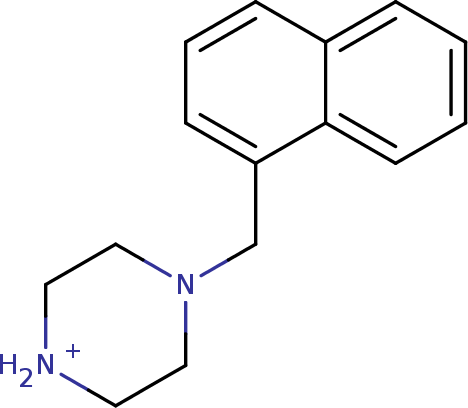

NMP (1-(Naphthalen-1-ylmethyl)piperazine)

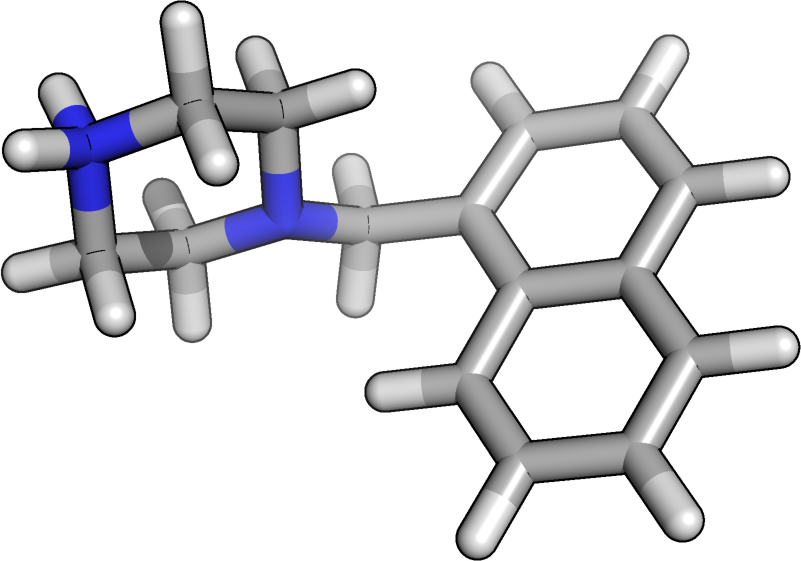

CLICK IMAGE TO ACTIVATE 3D

FORCE-FIELD PARAMETERS
GAFF files	[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf]

GENERAL PROPERTIES
Molecular Formula	C15H19N2
Molecular Weight (Da)	227.32476
# Atoms, heavy atoms, rotatable bonds	36     17     2
# H-bond donors / acceptors	1     1
Physiological charge	+1

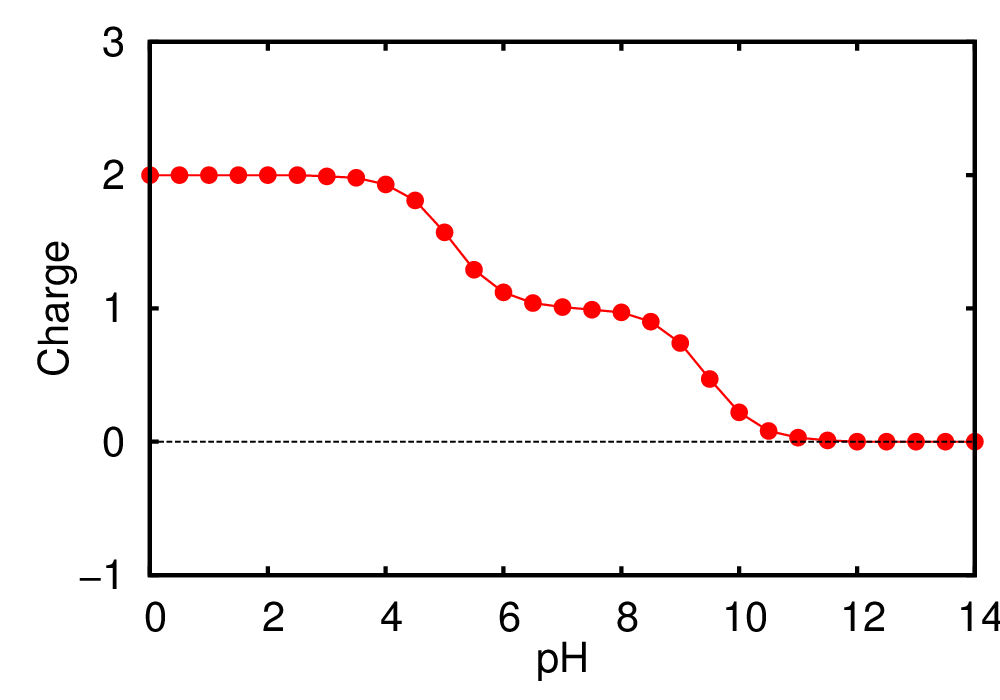

Isoelectric point	undefined   [data] [plot]
Van der Waals volume (Å3)	228.18
logP (XLOGP3 CHEMAXON ALOGPS)	2.35 [data]   2.37   2.00
logS (CHEMAXON ALOGPS)	-2.69   -3.08
Molecular surface (Å2)	pol=XX.XX   nonpol=XX.XX   tot=XX.XX   [fig]
COMPUTED QM PROPERTIES
Optimized geometry	[xyz] [sdf]
HOMO, LUMO, GAP (eV)	-1.22     -5.97     4.75/td>

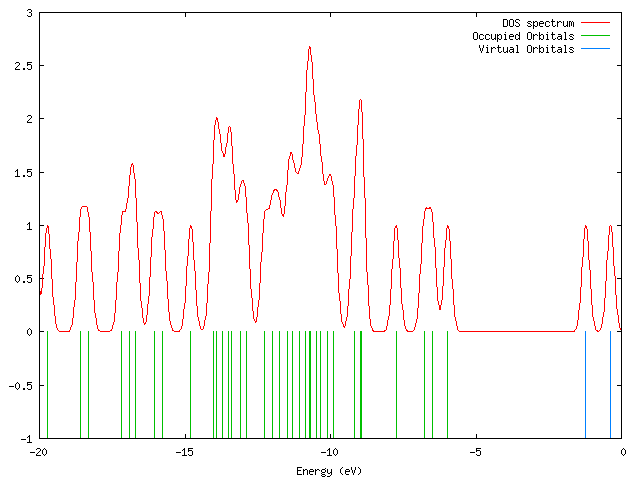

Orbital data	[data] [plot]

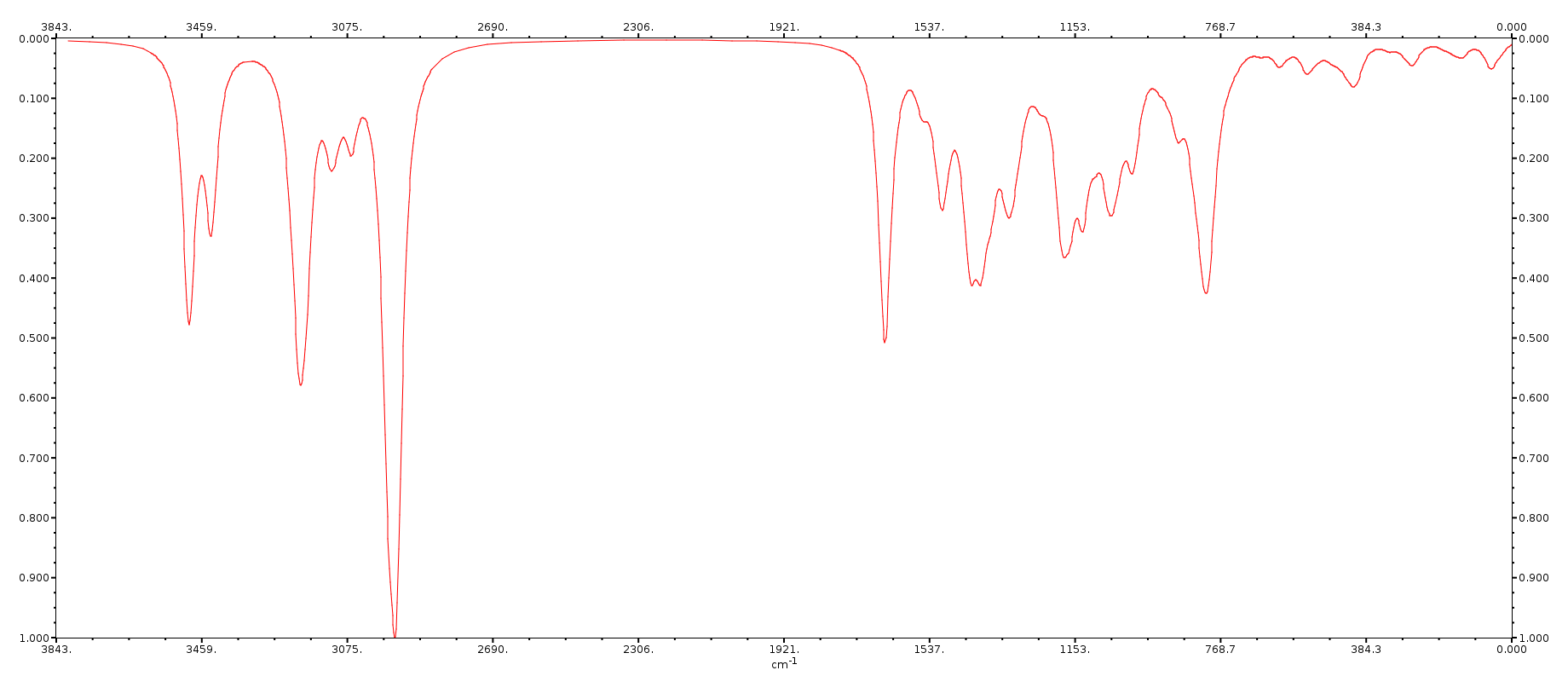

Vibrational properties	[data] [plot]
Rotational constants (GHz)	A=0.8359305   B=0.2927145   C=0.2486831

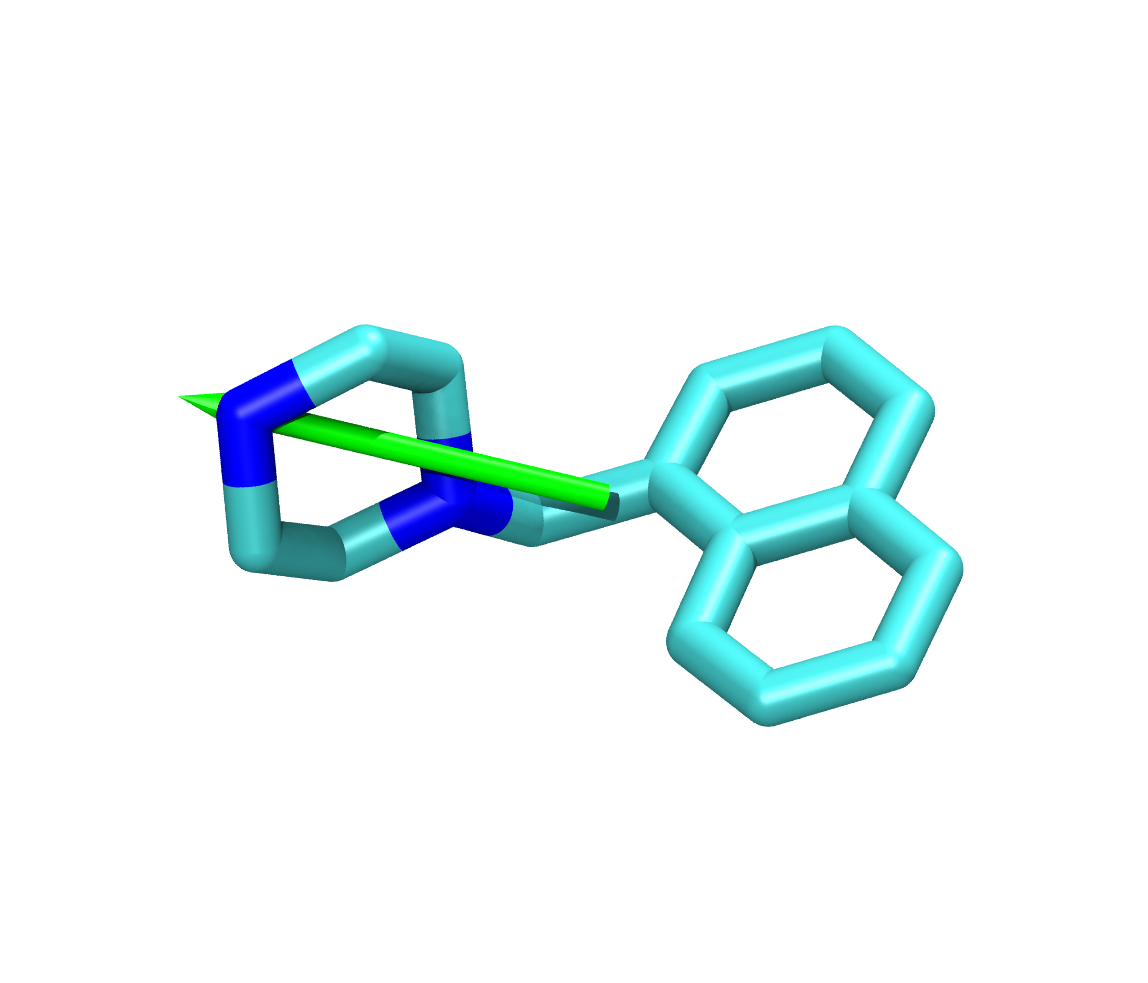

Dipole in vacuum (Debye)	15.75   [fig]
COMPUTED MD PROPERTIES

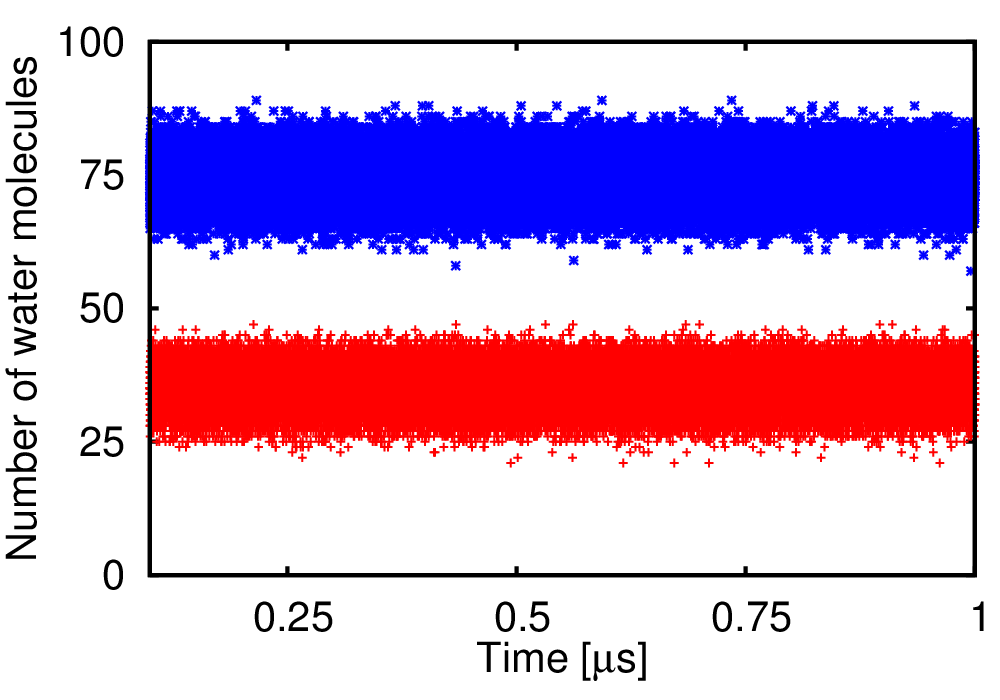

First and second water shells	[data] [plot]
Intramolecular / water H-bonds	[data] [data]
Cluster analysis	[txt] [pdb] [tgz]

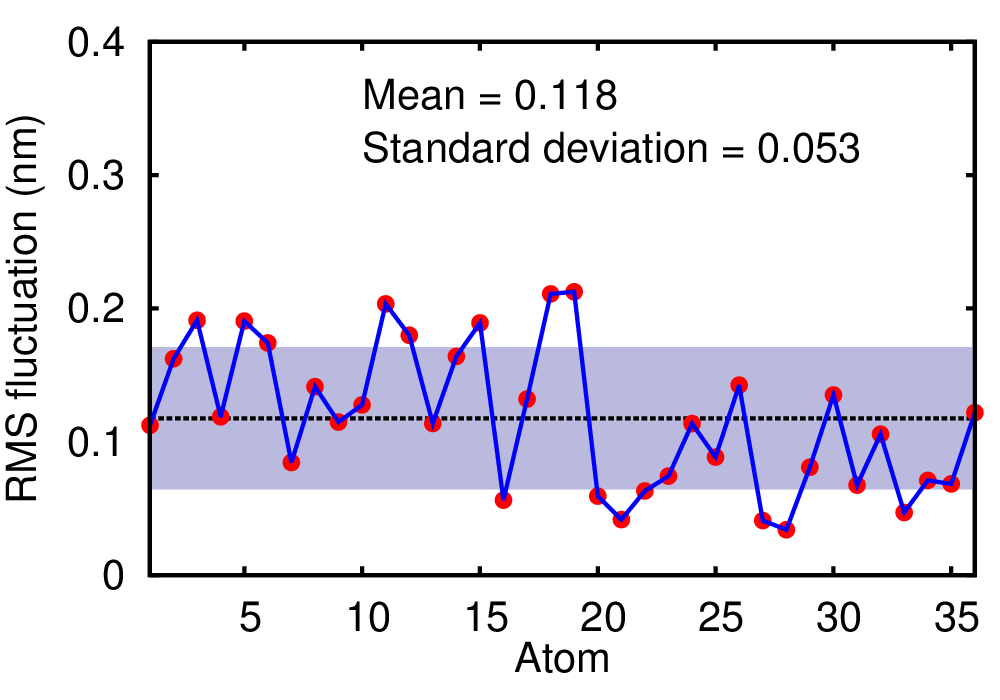

Root mean square fluctuation (nm)	mean=0.118   [data] [plot]
Minimal projection area (Å2)	mean=XX.XX   [data] [plot]

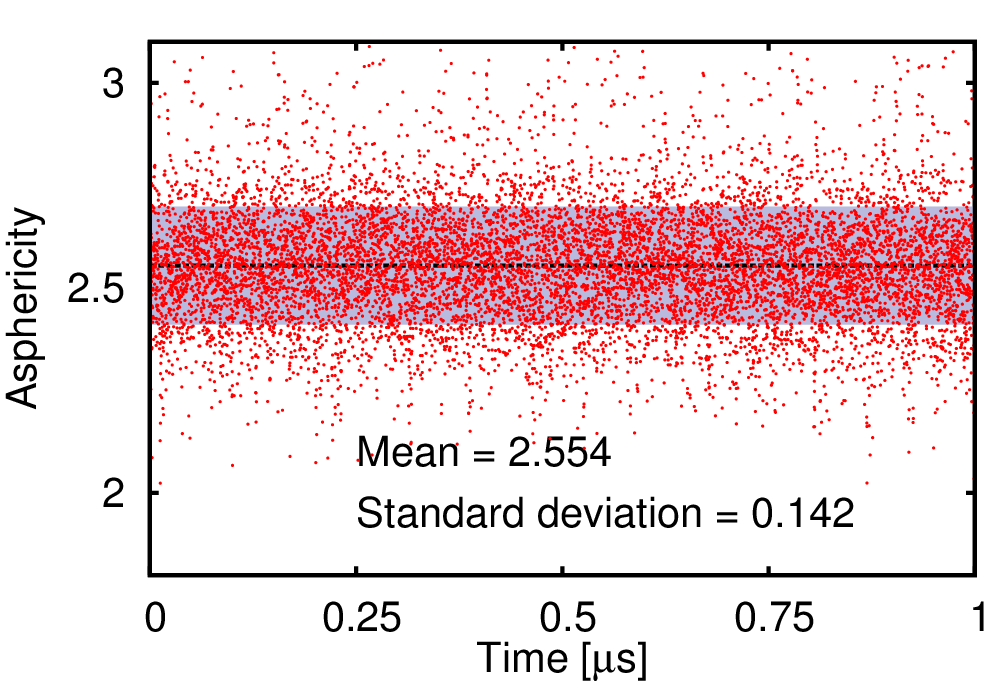

Asphericity	mean=2.554   [data] [plot]

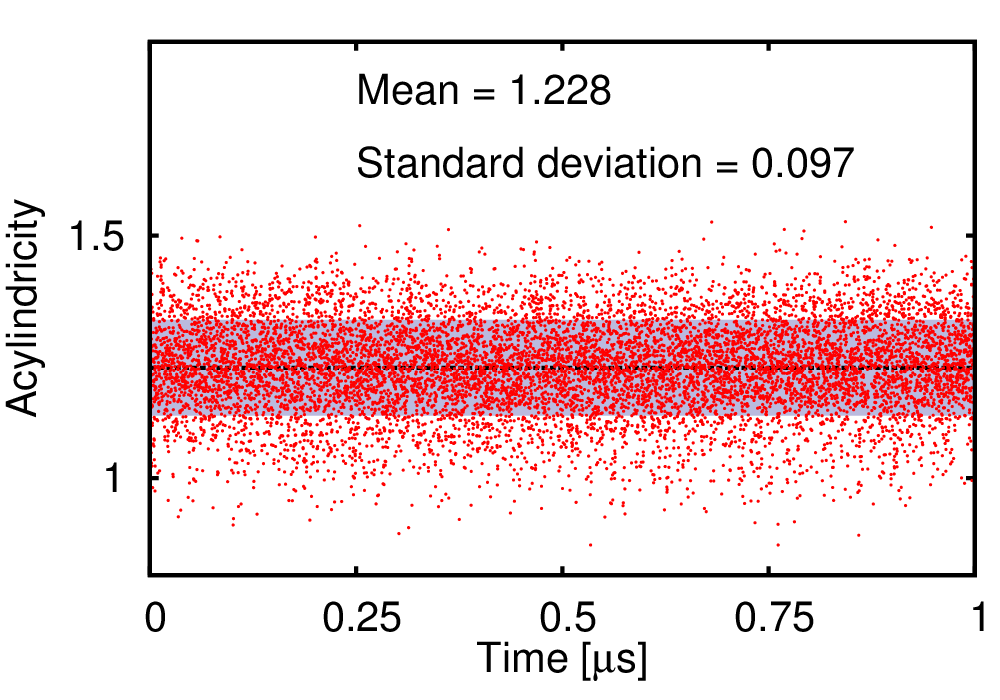

Acylindricity	mean=1.228   [data] [plot]

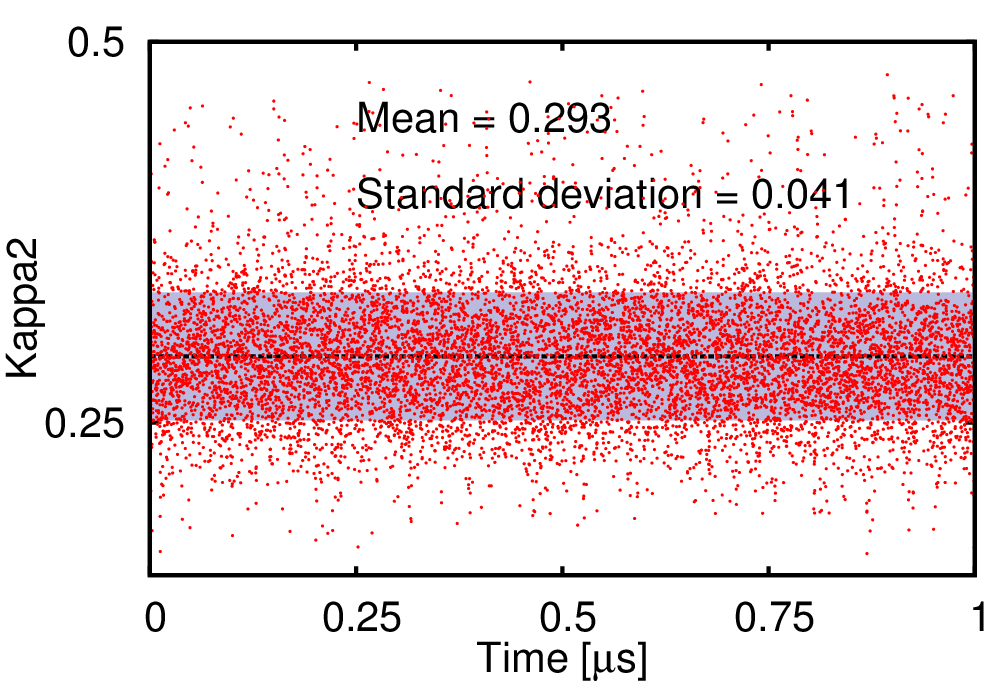

Kappa2	mean=0.293   [data] [plot]

External links

[pubchem] [chemspider]

---
