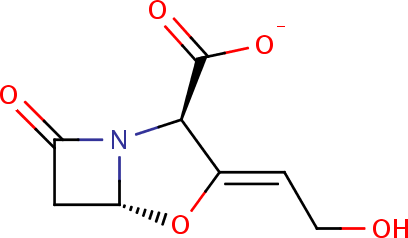

Clavulanic Acid

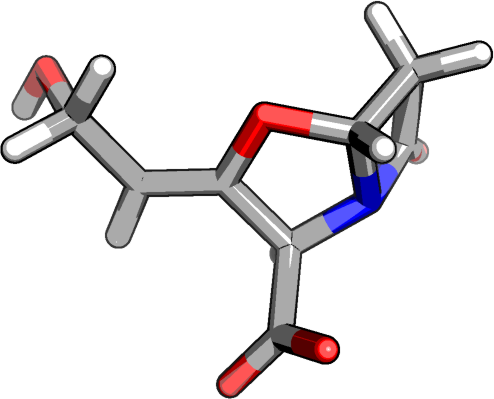

CLICK IMAGE TO ACTIVATE 3D

FORCE-FIELD PARAMETERS
GAFF files	[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf]

GENERAL PROPERTIES
Molecular Formula	C8H8NO5
Molecular Weight (Da)	198.15282
# Atoms, heavy atoms, rotatable bonds	22     14     2
# H-bond donors / acceptors	1     5
Physiological charge	-1

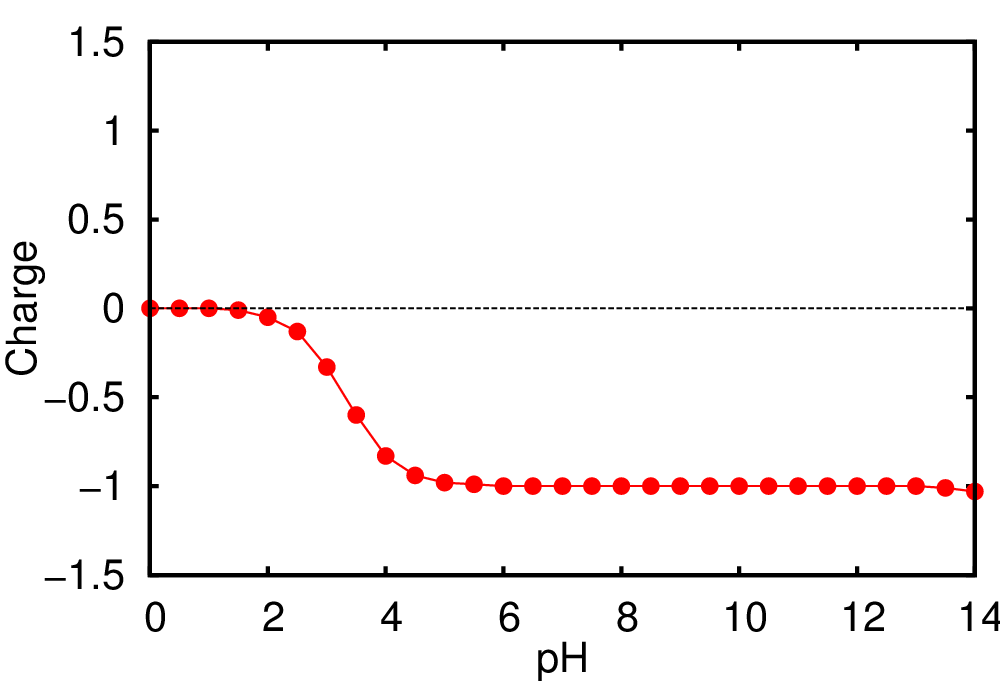

Isoelectric point	0.38 [data] [plot]
Van der Waals volume (Å3)	159.22
logP (XLOGP3 CHEMAXON ALOGPS)	-0.80 [data]   -1.52   -1.37
logS (CHEMAXON ALOGPS)	-1.37   0.41

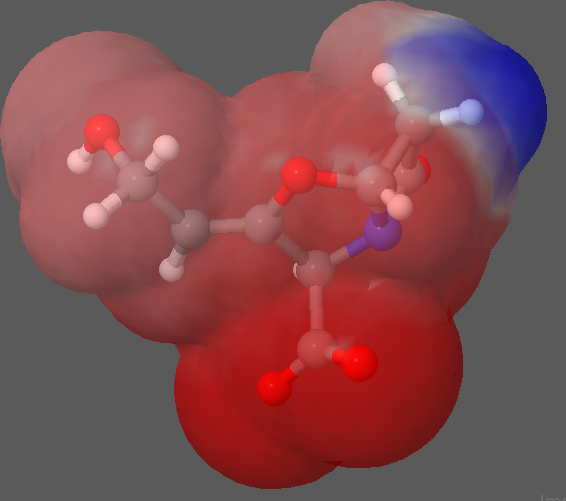

Molecular surface (Å2)	pol=173.46   nonpol=0.00   tot=173.46   [fig]
COMPUTED QM PROPERTIES
Optimized geometry	[xyz] [sdf]
HOMO, LUMO, GAP (eV)	-5.44     0.05     5.49

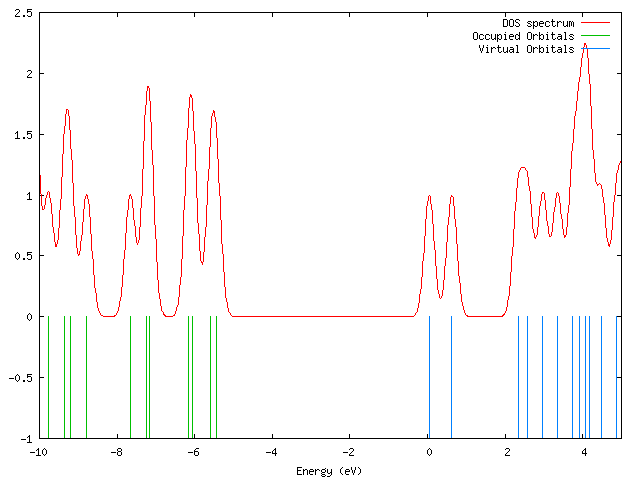

Orbital data	[data] [plot]

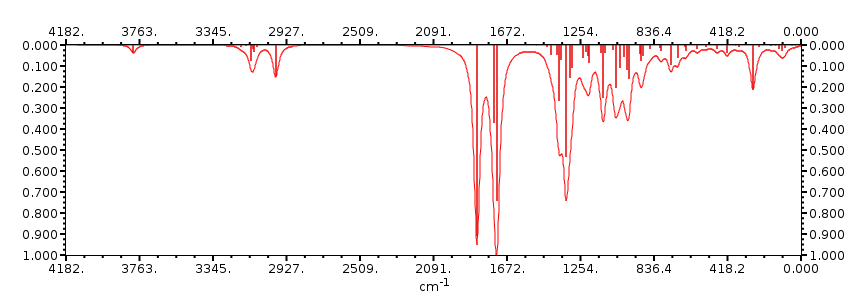

Vibrational properties	[data] [plot]
Rotational constants (GHz)	A=0.80361   B=0.57460   C=0.41213

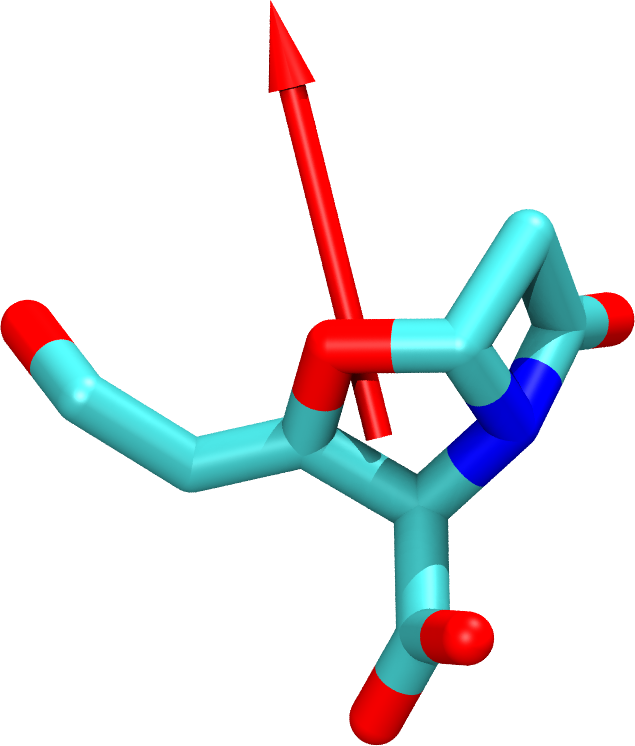

Dipole in vacuum (Debye)	8.08     [fig]
COMPUTED MD PROPERTIES

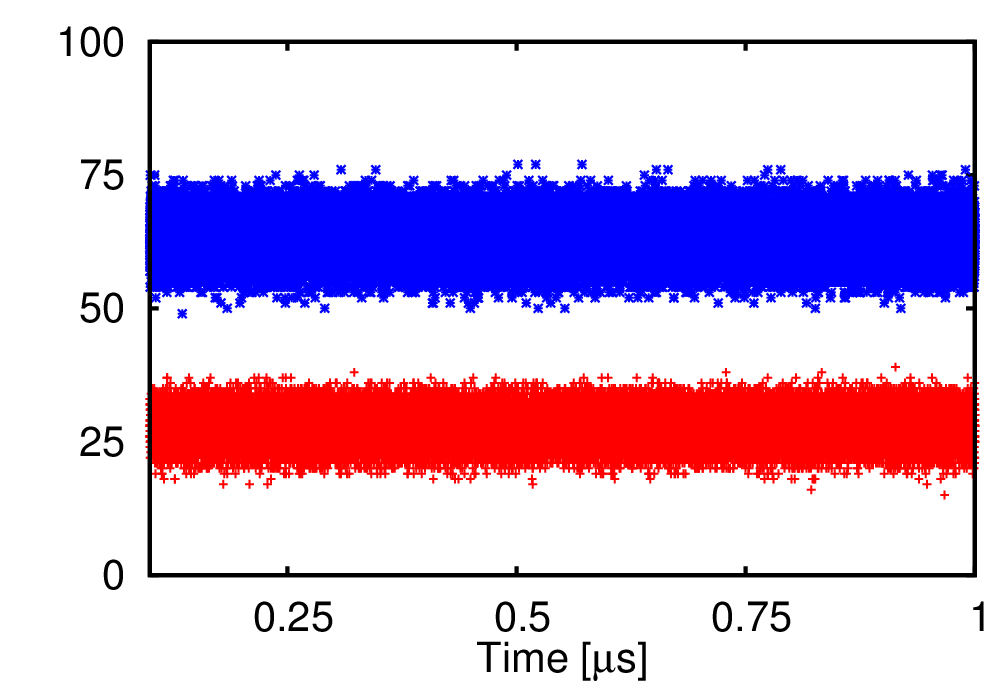

First and second water shells	[data] [plot]
Intramolecular / water H-bonds	[data] [data]
Cluster analysis	[txt] [pdb] [tgz]

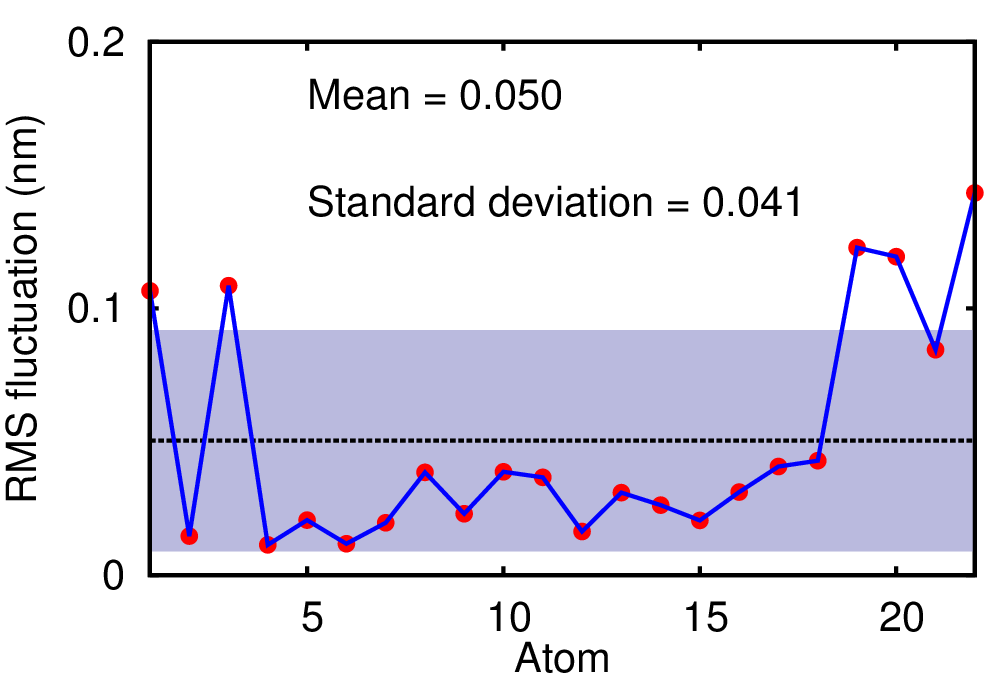

Root mean square fluctuation (nm)	mean=0.050   [data] [plot]

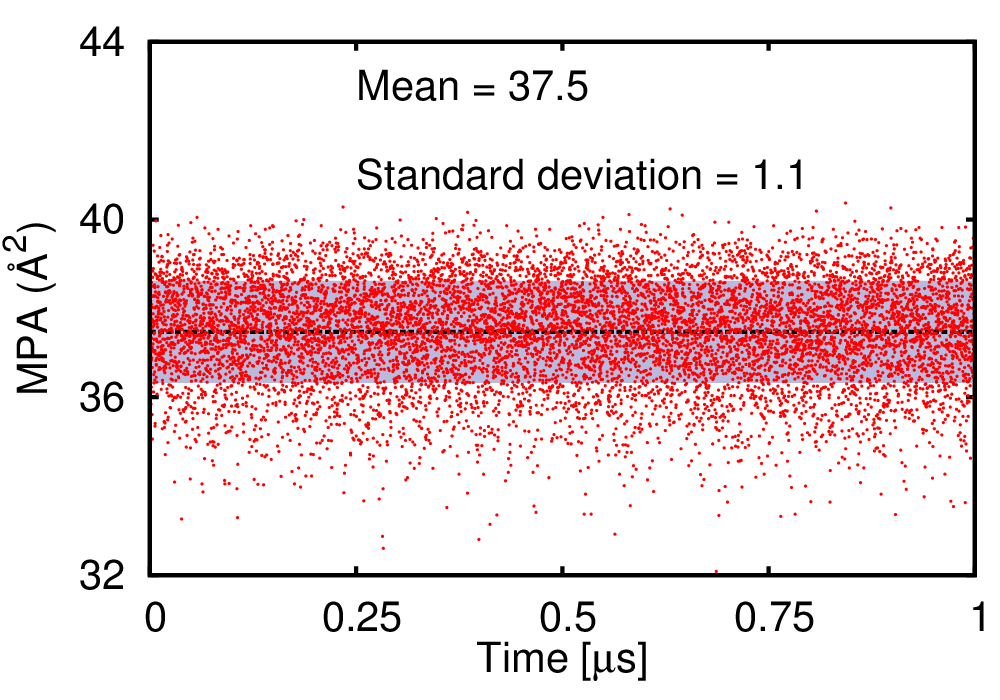

Minimal projection area (Å2)	mean=37.47   [data] [plot]

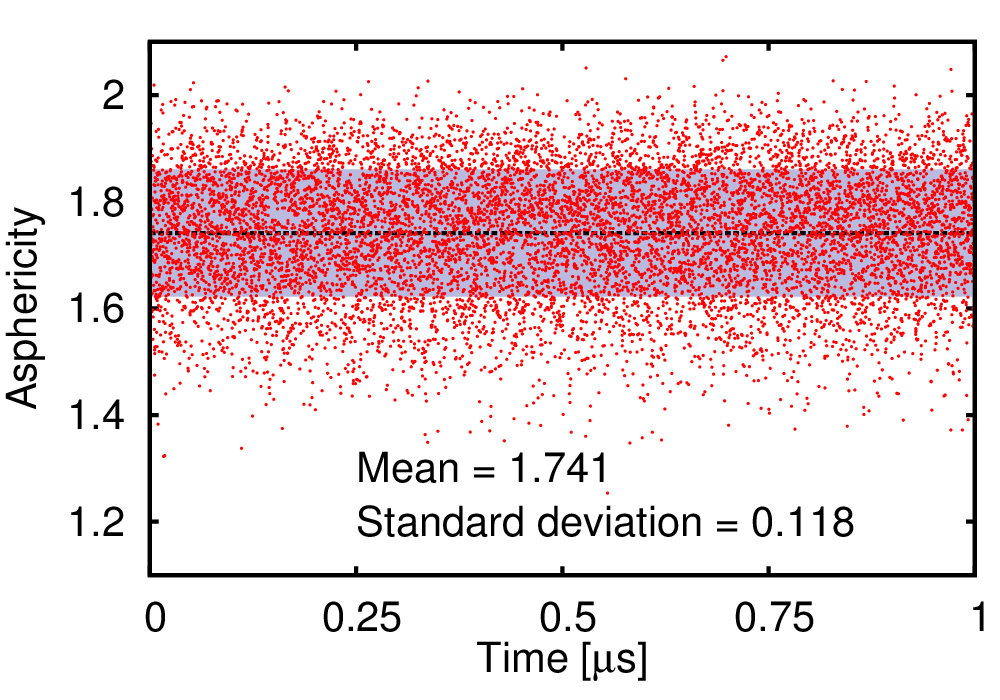

Asphericity	mean=1.741   [data] [plot]

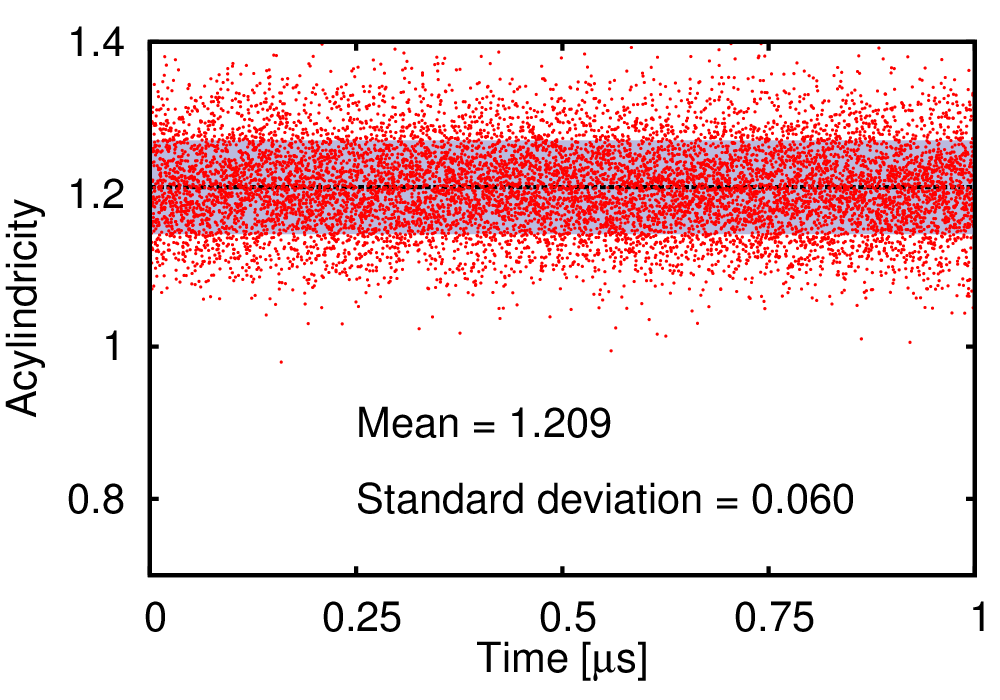

Acylindricity	mean=1.209   [data] [plot]

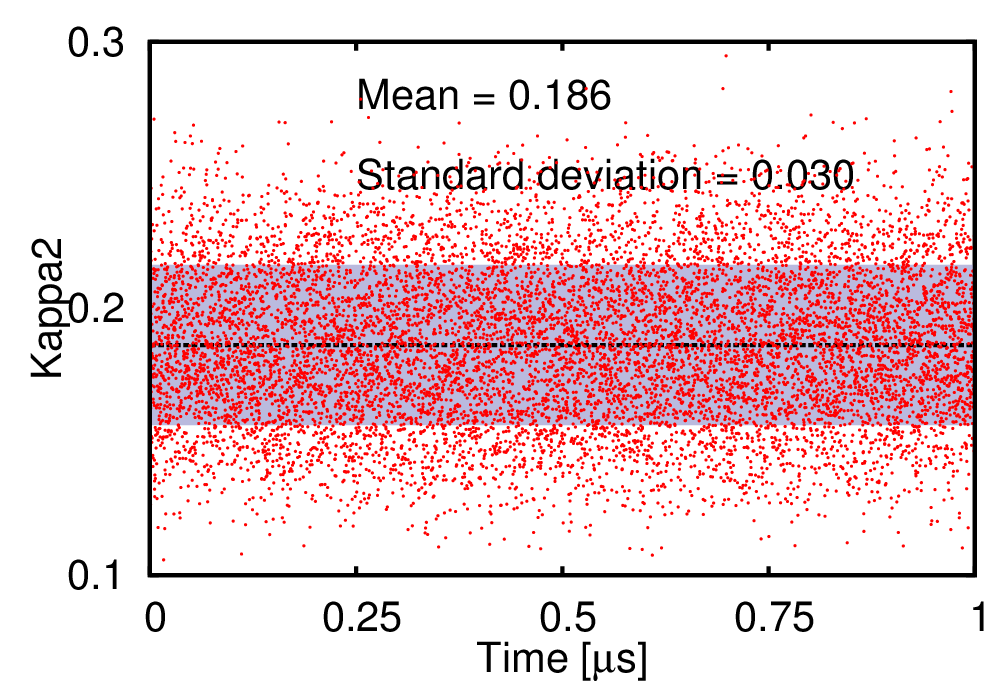

Kappa2	mean=0.186   [data] [plot]

External links

[wiki] [pubchem] [chemspider]

---
