FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

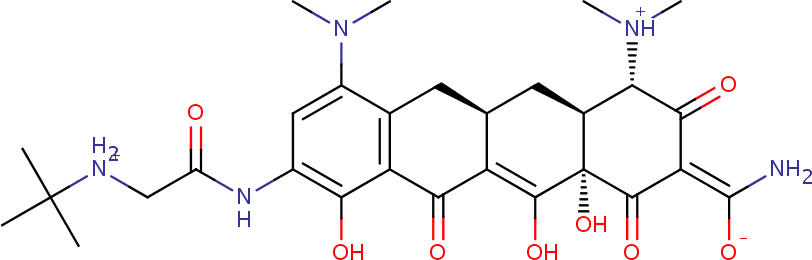

Molecular Formula | C29H40N5O8 |
Molecular Weight (Da) | 586.6566 |
# Atoms, heavy atoms, rotatable bonds | 82     42     7 |
# H-bond donors / acceptors | 7     10 |
Physiological charge | 1 |

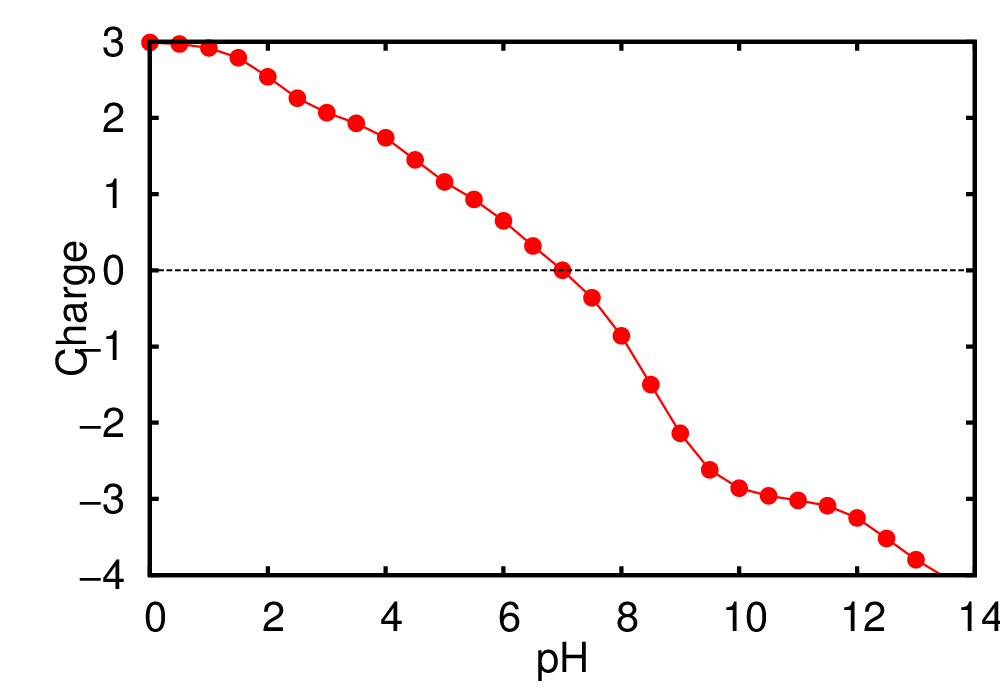

Isoelectric point | 7.00 [data] [plot] |
Van der Waals volume (Å3) | 538.85 |
logP (XLOGP3 CHEMAXON ALOGPS) | 1.20 [data]   -0.83   0.74 |
logS (CHEMAXON ALOGPS) | -2.62   -4.97 |

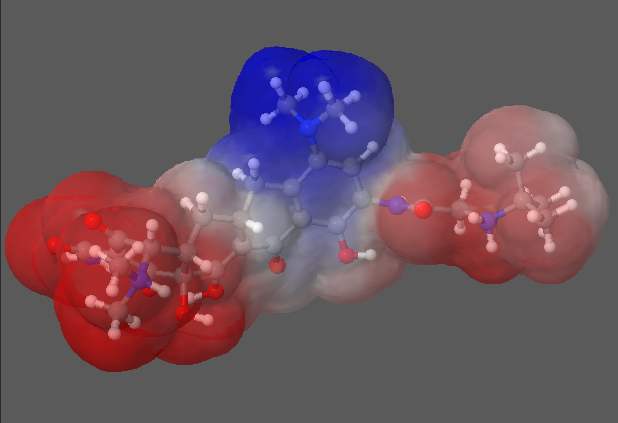

Molecular surface (Å2) | pol=368.99   nonpol=136.33   tot=505.32   [fig] |
COMPUTED QM PROPERTIES |
|

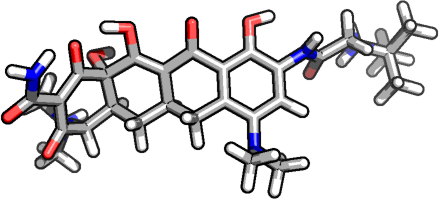

Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.57     -1.76     3.81 |

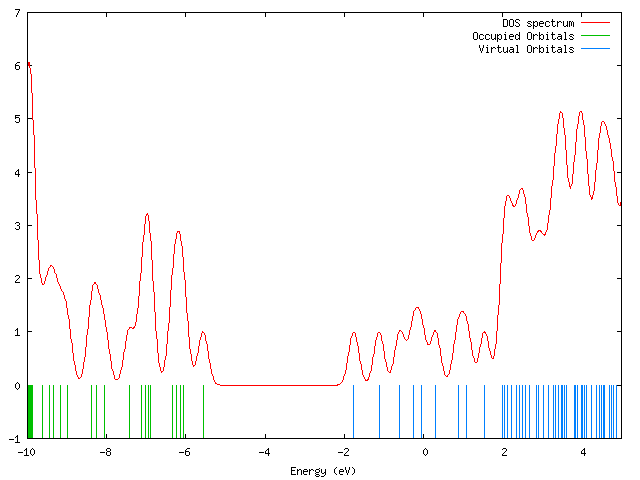

Orbital data | [data] [plot] |

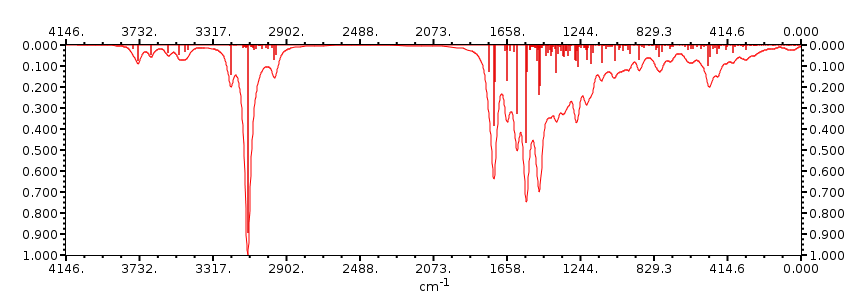

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.18221   B=0.02824   C=0.02760 |

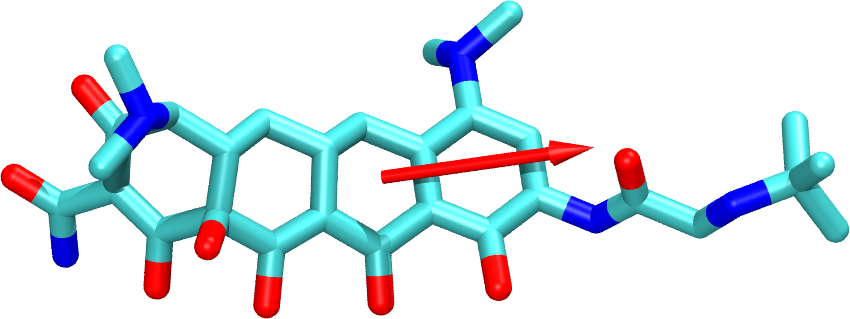

Dipole in vacuum (Debye) | 39.83     [fig] |
COMPUTED MD PROPERTIES |
|

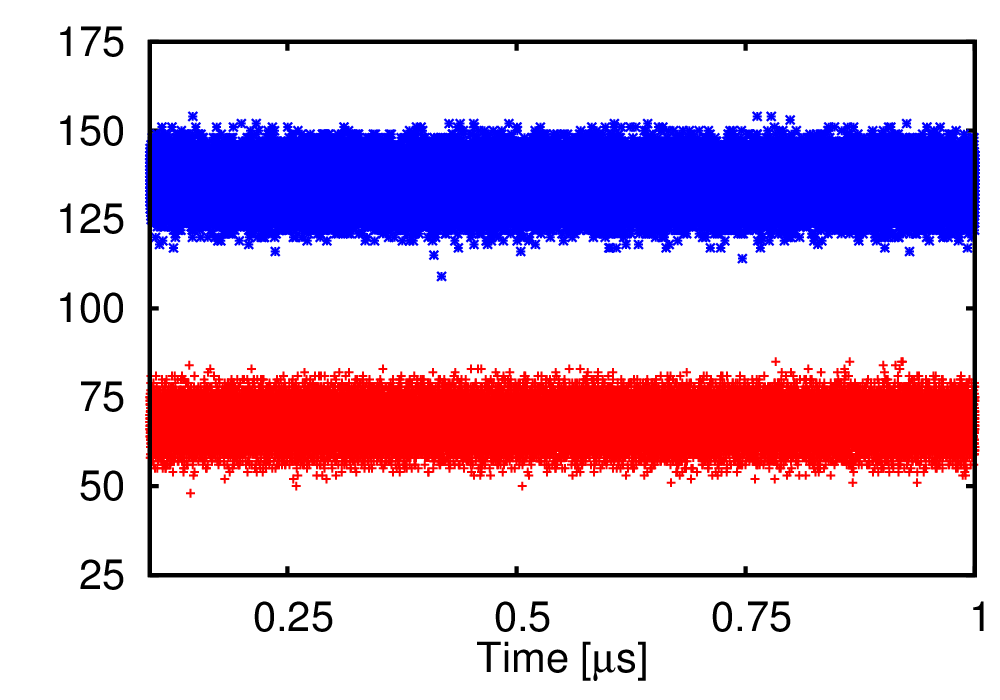

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

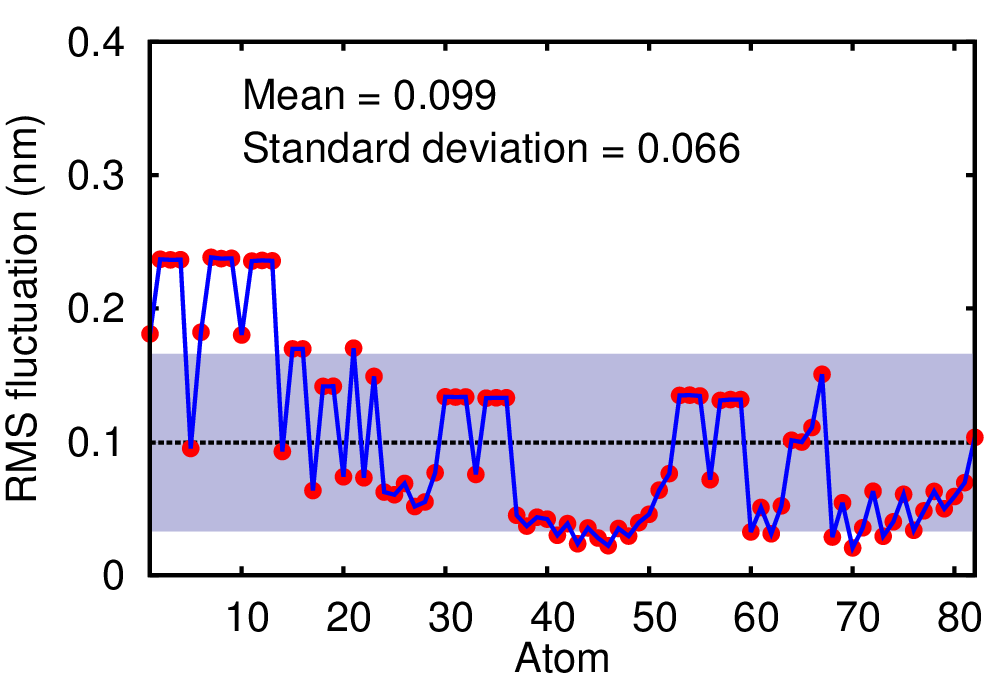

Root mean square fluctuation (nm) | mean=0.099   [data] [plot] |

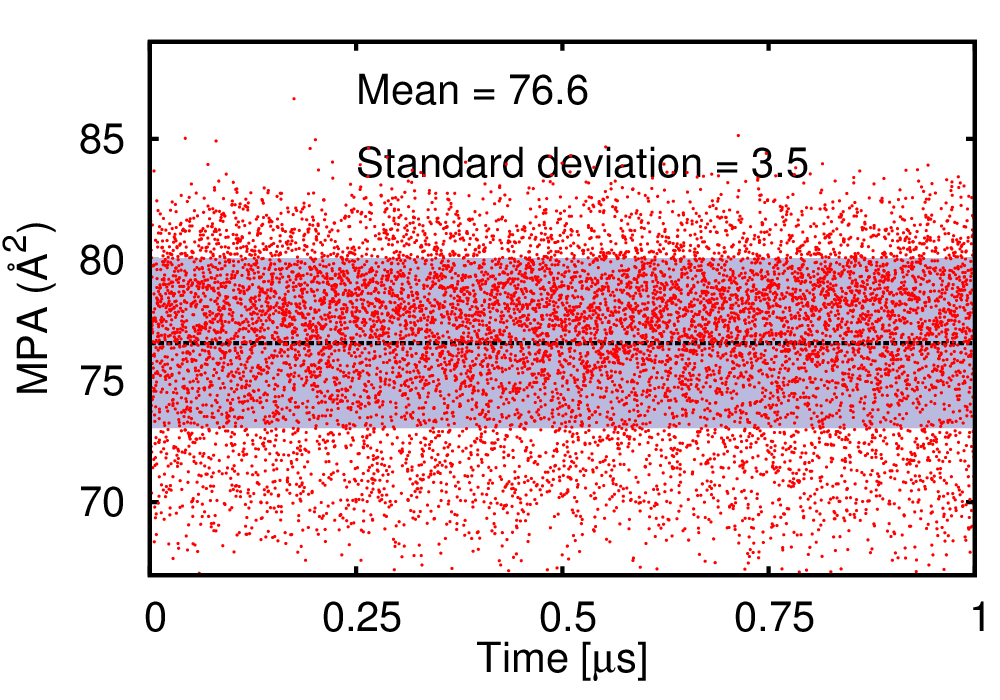

Minimal projection area (Å2) | mean=76.56   [data] [plot] |

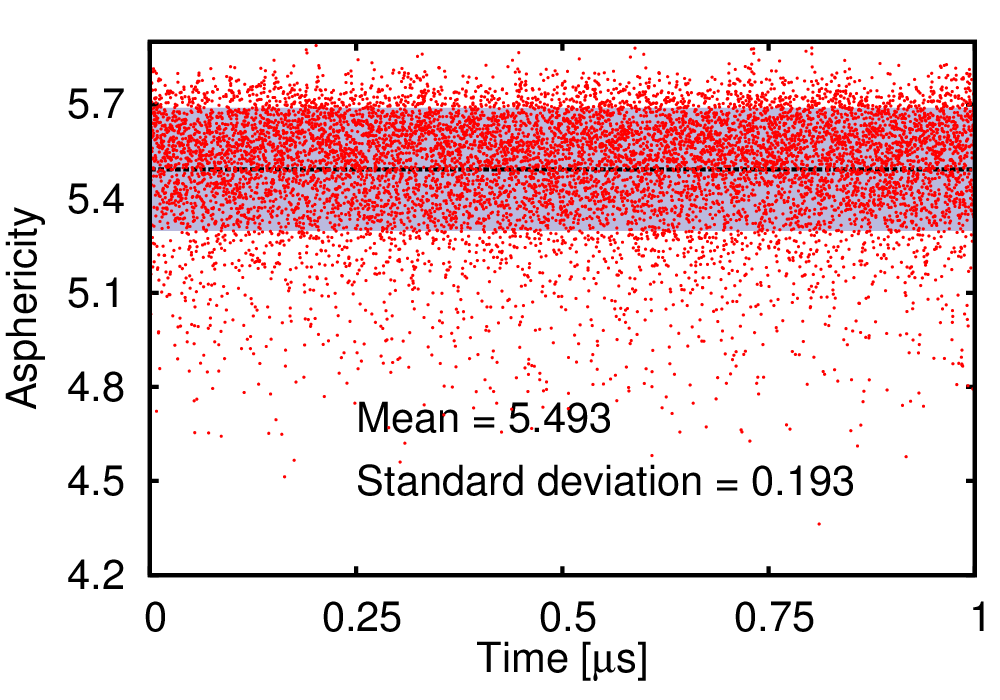

Asphericity | mean=5.493   [data] [plot] |
Acylindricity | mean=1.227   [data] [plot] |

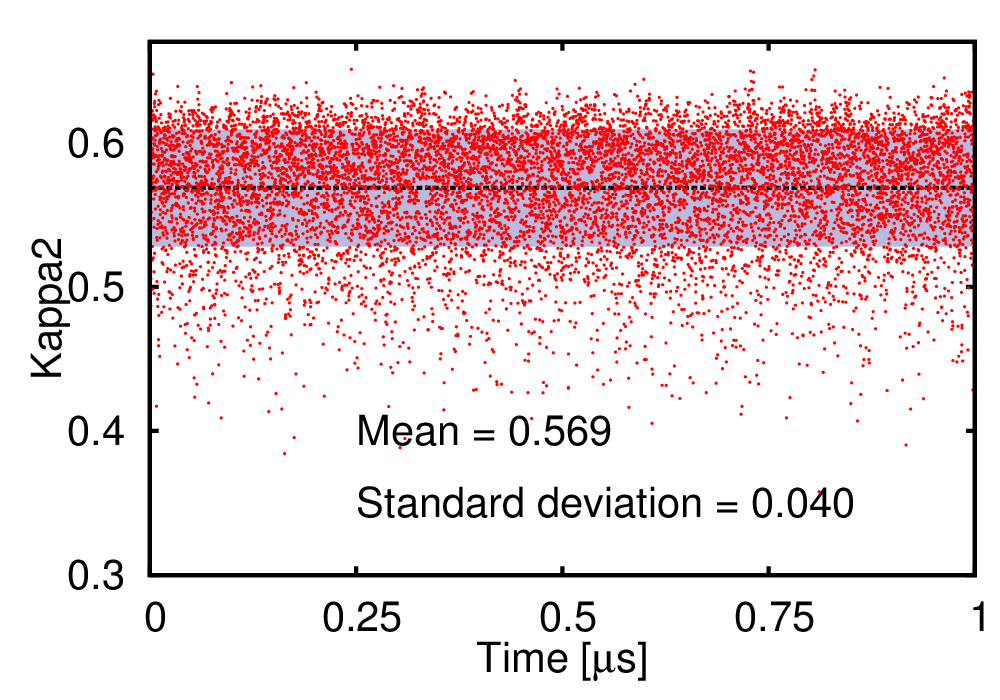

Kappa2 | mean=0.569   [data] [plot] |
External links |
[wiki]
[pubchem] [chemspider] |
