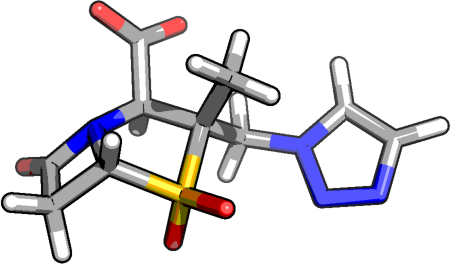

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

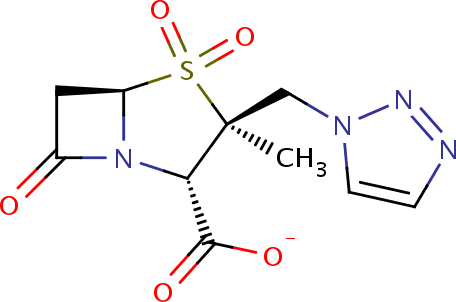

Molecular Formula | C10H11N4O5S |
Molecular Weight (Da) | 299.28314 |
# Atoms, heavy atoms, rotatable bonds | 31     20     3 |
# H-bond donors / acceptors | 0     7 |
Physiological charge | -1 |

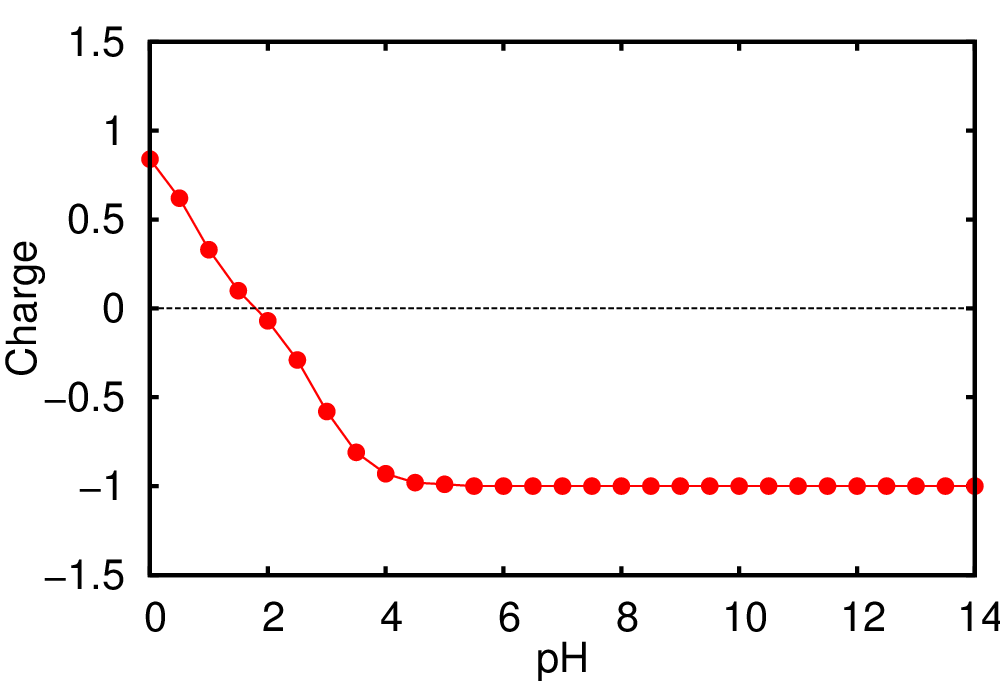

Isoelectric point | 1.79 [data] [plot] |
Van der Waals volume (Å3) | 229.84 |
logP (XLOGP3 CHEMAXON ALOGPS) | -1.33 [data]   -1.40   -1.69 |
logS (CHEMAXON ALOGPS) | -1.55   -1.50 |

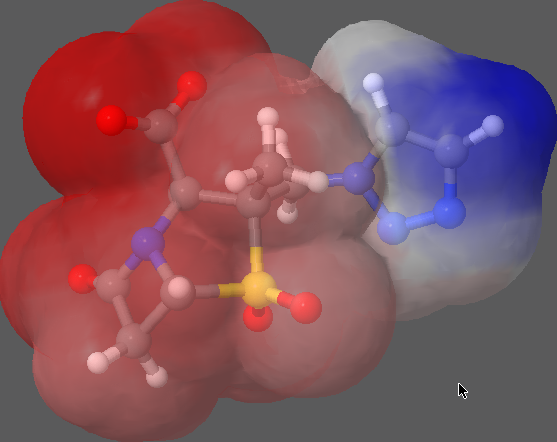

Molecular surface (Å2) | pol=188.69   nonpol=28.94   tot=217.63   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.77     -0.31     5.46 |

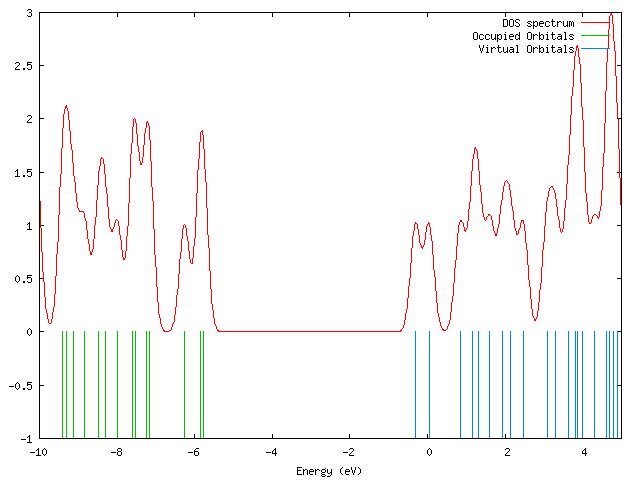

Orbital data | [data] [plot] |

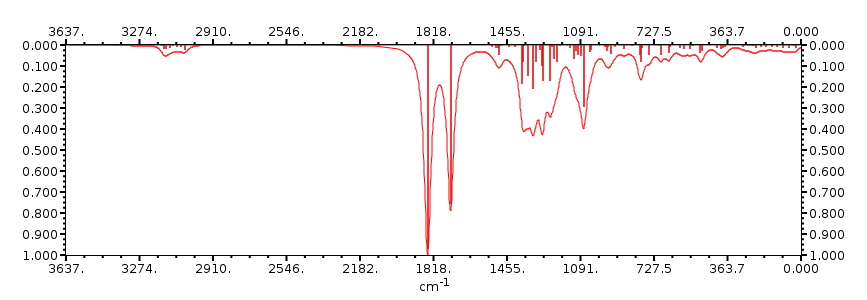

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.54485   B=0.26331   C=0.20516 |

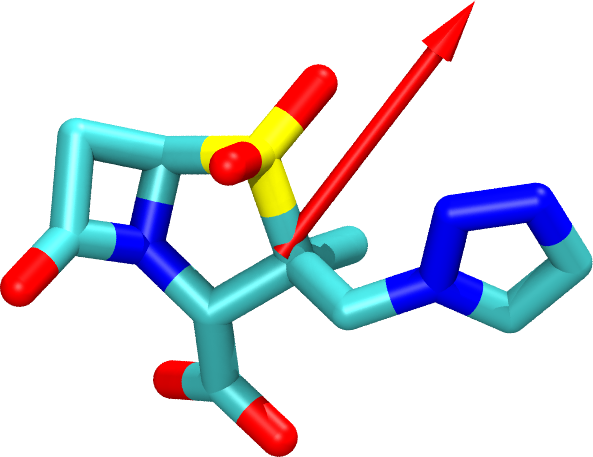

Dipole in vacuum (Debye) | 5.46     [fig] |
COMPUTED MD PROPERTIES |
|

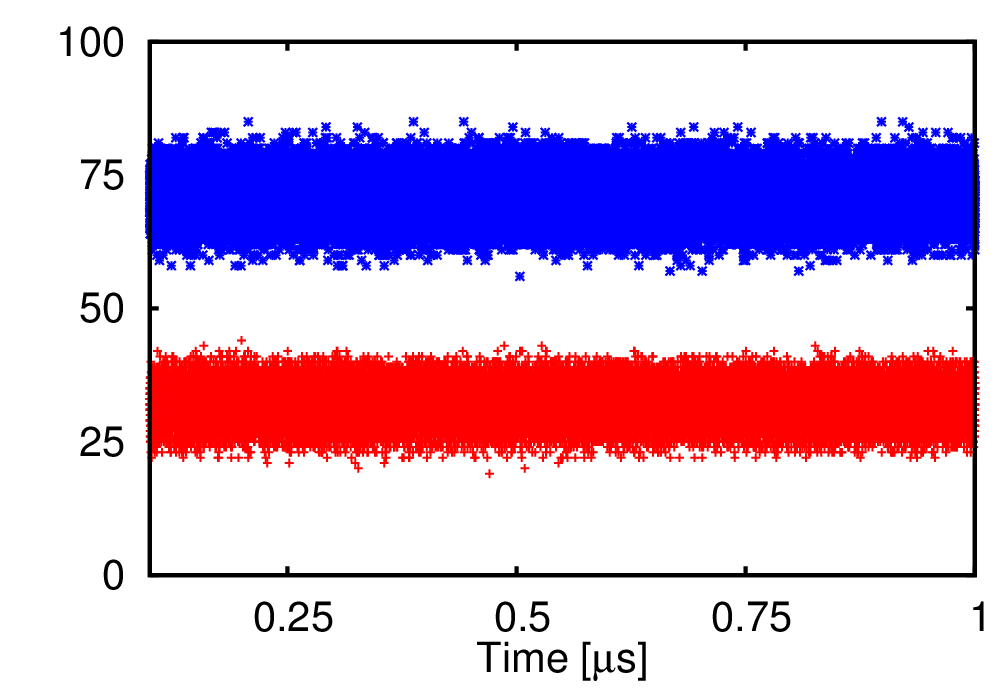

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

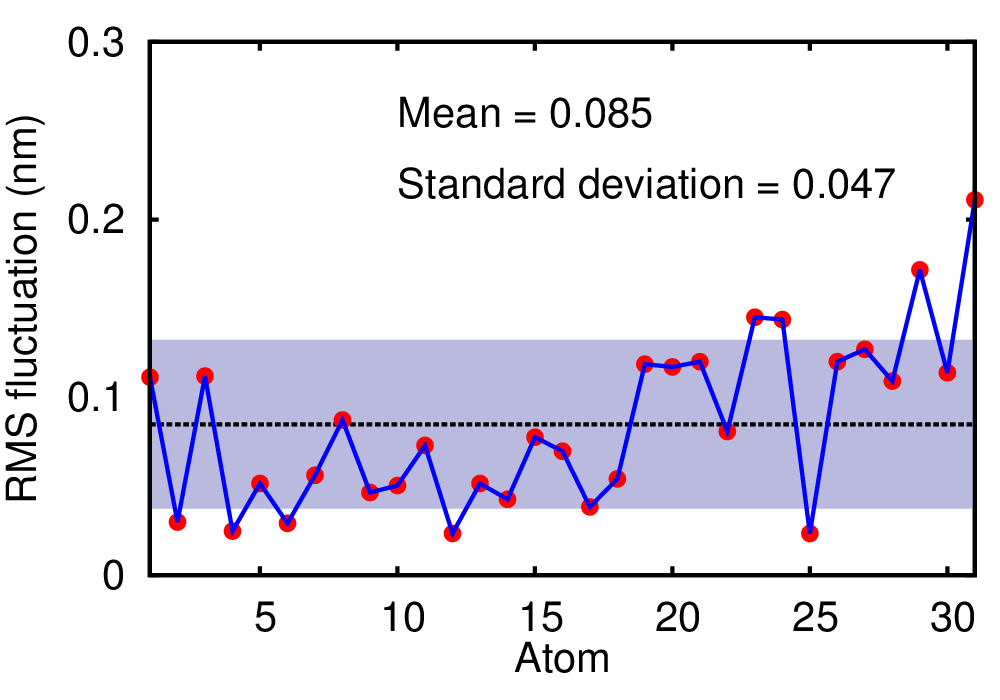

Root mean square fluctuation (nm) | mean=0.085   [data] [plot] |
Minimal projection area (Å2) | mean=44.16   [data] [plot] |

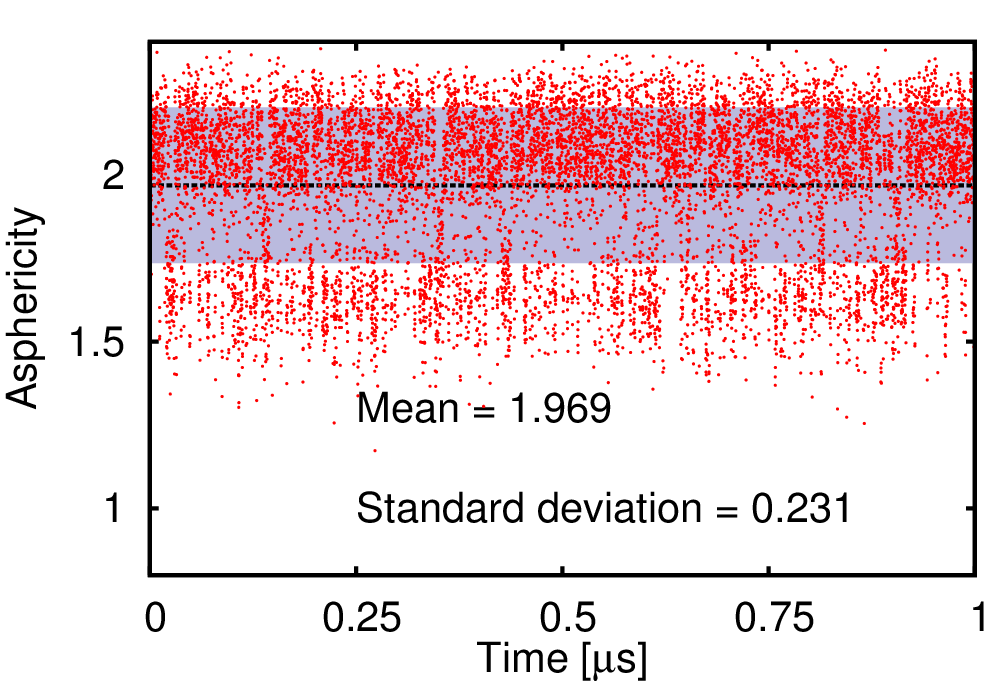

Asphericity | mean=1.969   [data] [plot] |

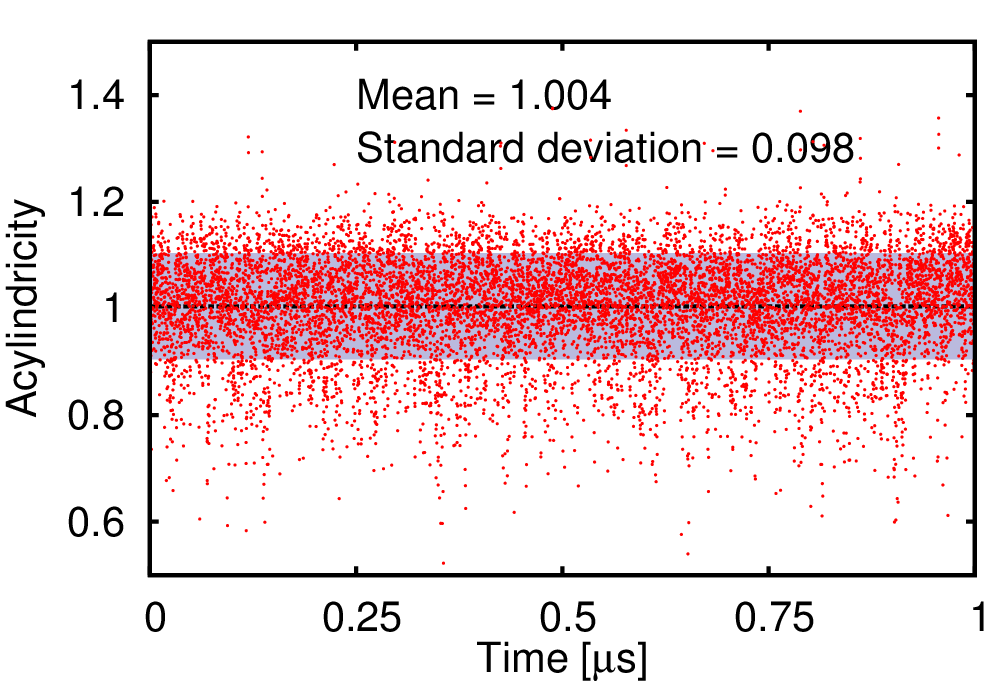

Acylindricity | mean=1.004   [data] [plot] |

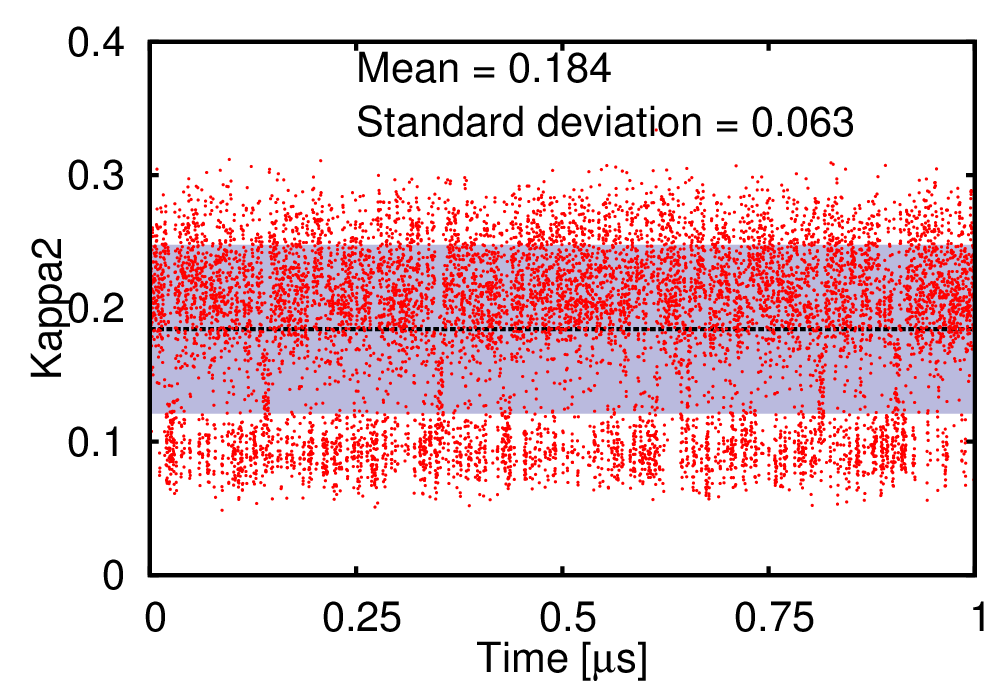

Kappa2 | mean=0.184   [data] [plot] |
External links |
[wiki]
[pubchem] [chemspider] |
