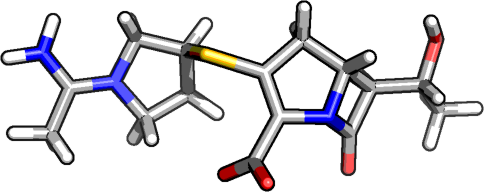

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|
Molecular Formula | C15H21N3O4S |
Molecular Weight (Da) | 339.40994 |
# Atoms, heavy atoms, rotatable bonds | 44     23     5 |
# H-bond donors / acceptors | 2     5 |
Physiological charge | 0 |
Van der Waals volume (Å3) | 301.10 |

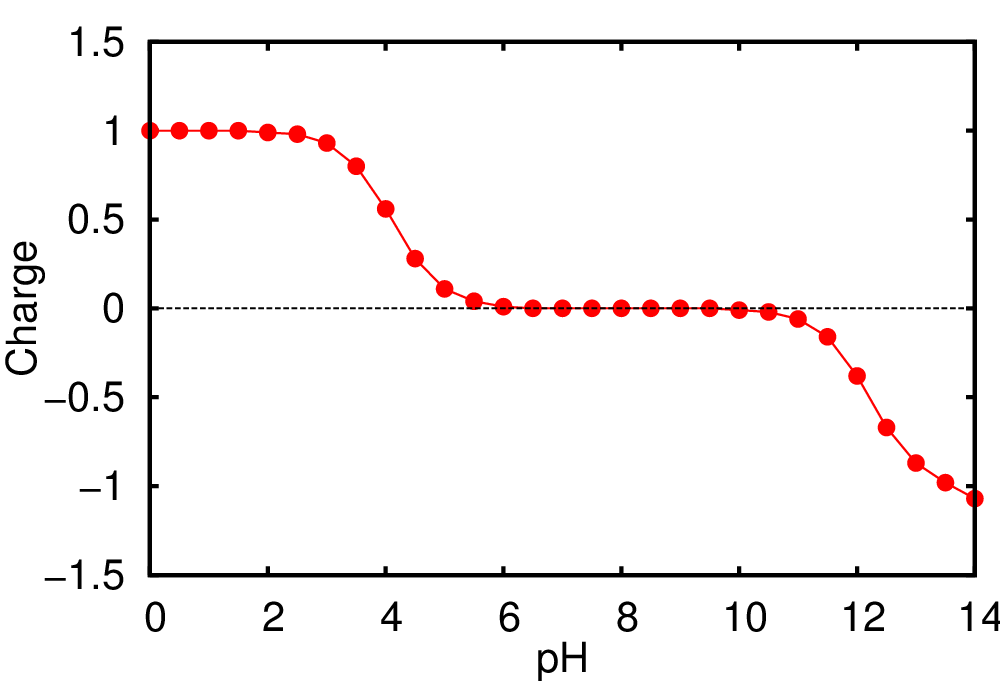

Isoelectric point | 8.14 [data] [plot] |
logP (XLOGP3 CHEMAXON ALOGPS) | -1.54 [data]   -4.05   -1.66 |
logS (CHEMAXON ALOGPS) | -1.93   -2.29 |

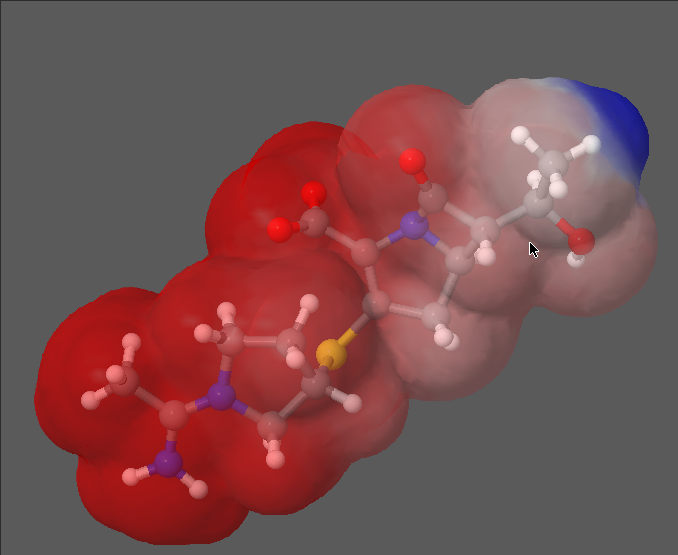

Molecular surface (Å2) | pol=293.68   nonpol=12.76   tot=306.44   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.54     -0.78     4.76 |

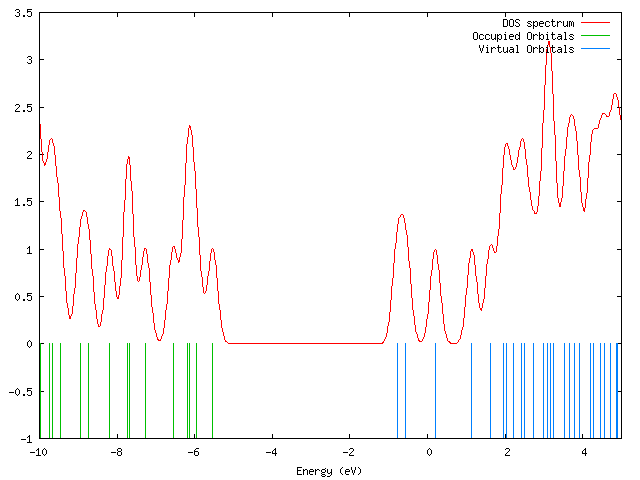

Orbital data | [data] [plot] |

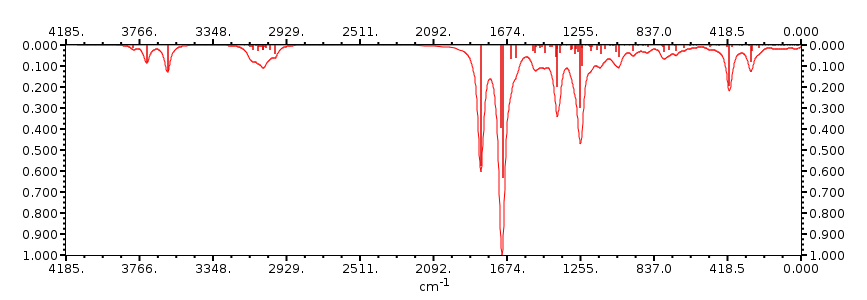

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.53166   B=0.11075   C=0.10336 |

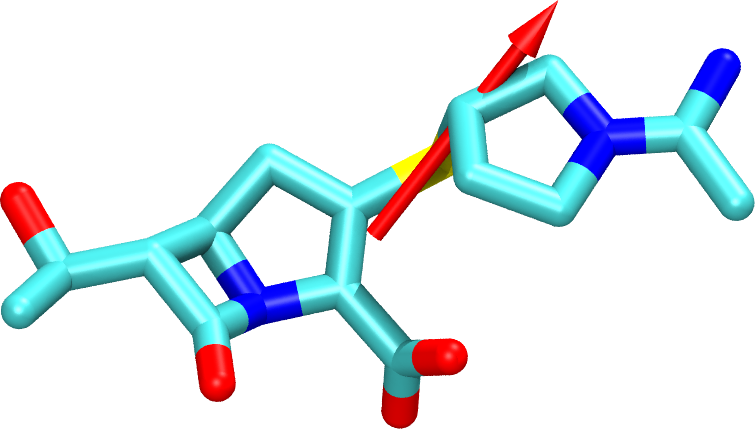

Dipole in vacuum (Debye) | 23.07     [fig] |
COMPUTED MD PROPERTIES |
|

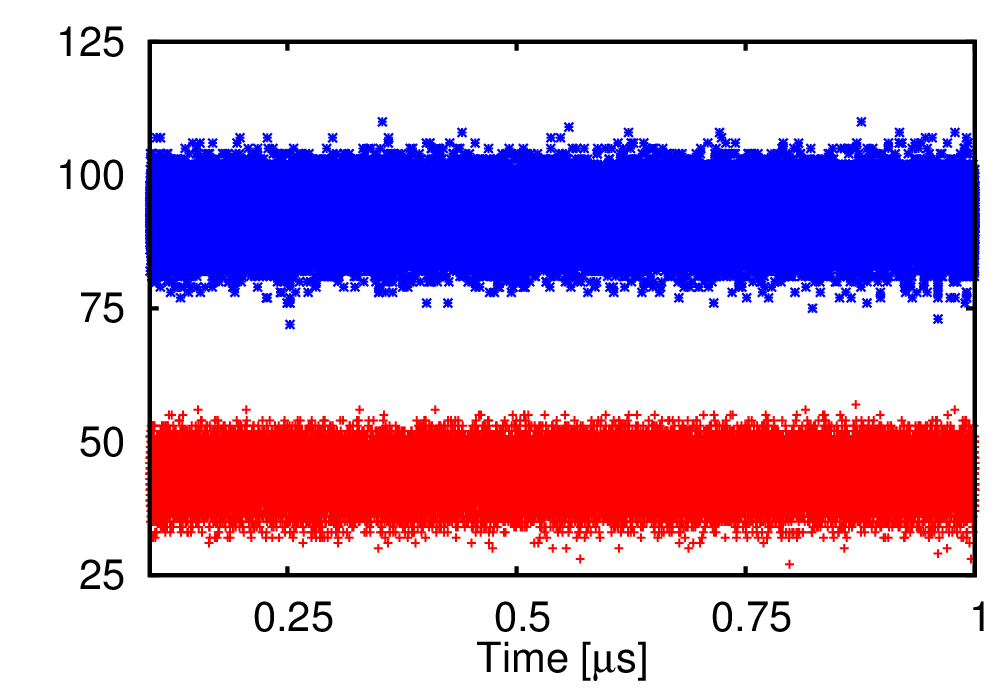

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

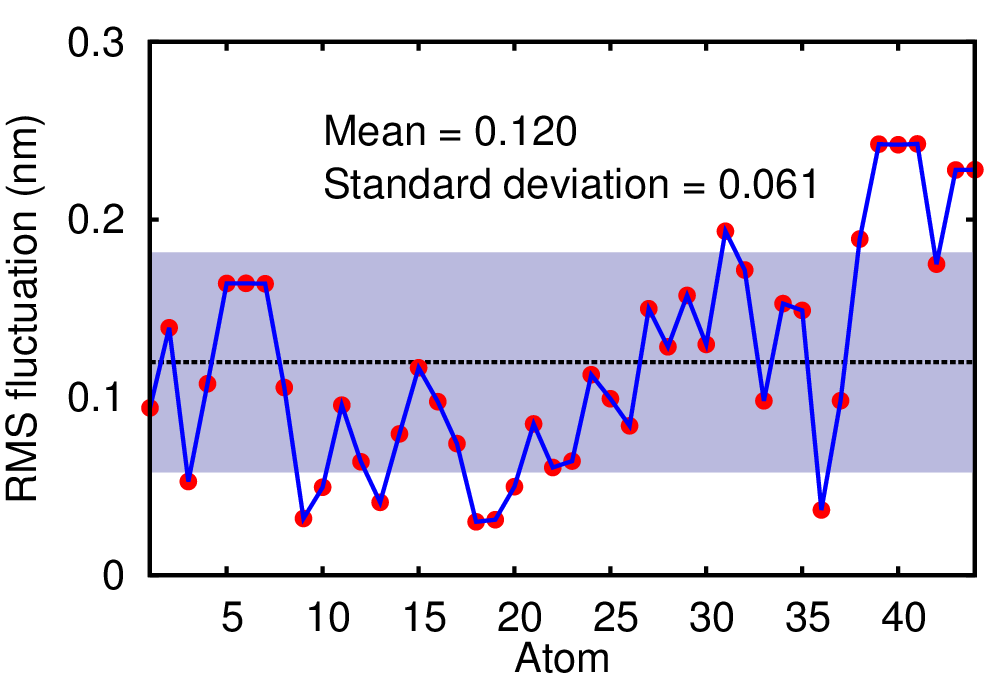

Root mean square fluctuation (nm) | mean=0.120   [data] [plot] |

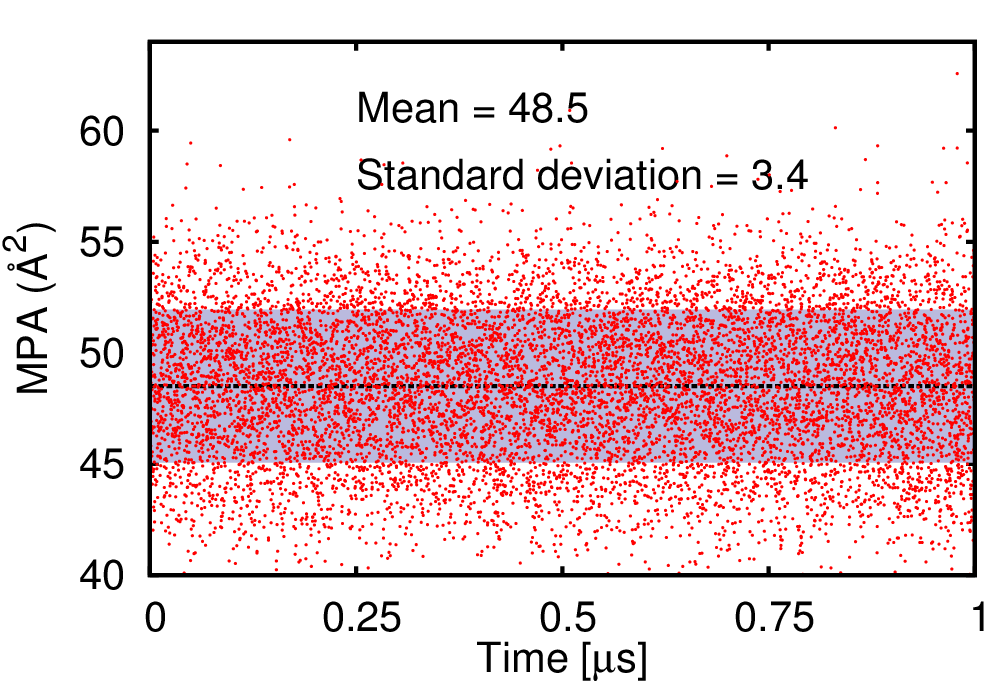

Minimal projection area (Å2) | mean=48.50   [data] [plot] |

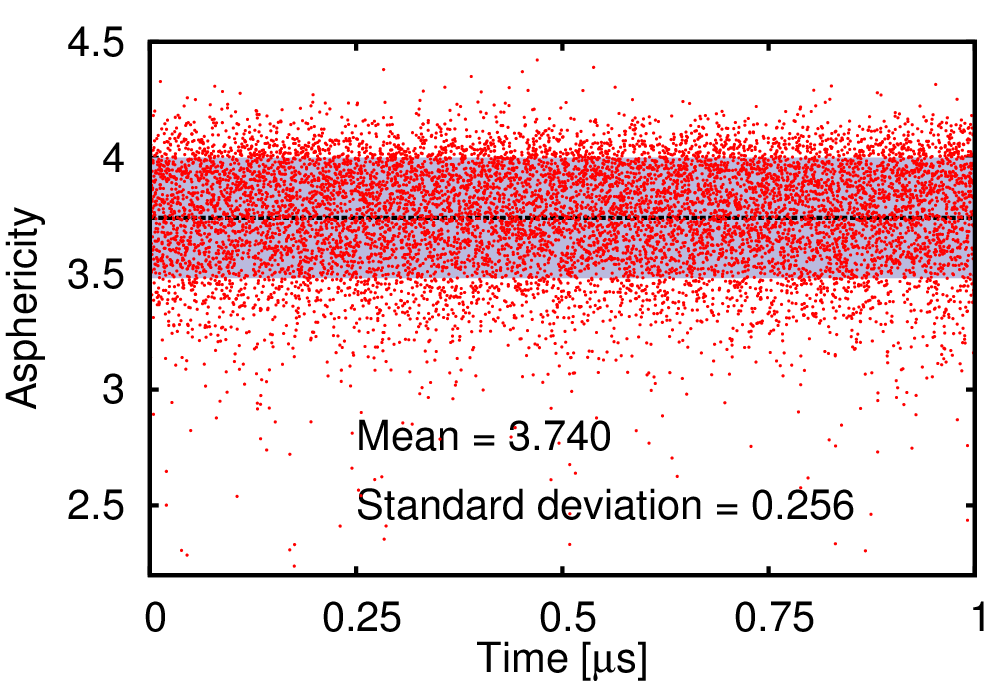

Asphericity | mean=3.740   [data] [plot] |

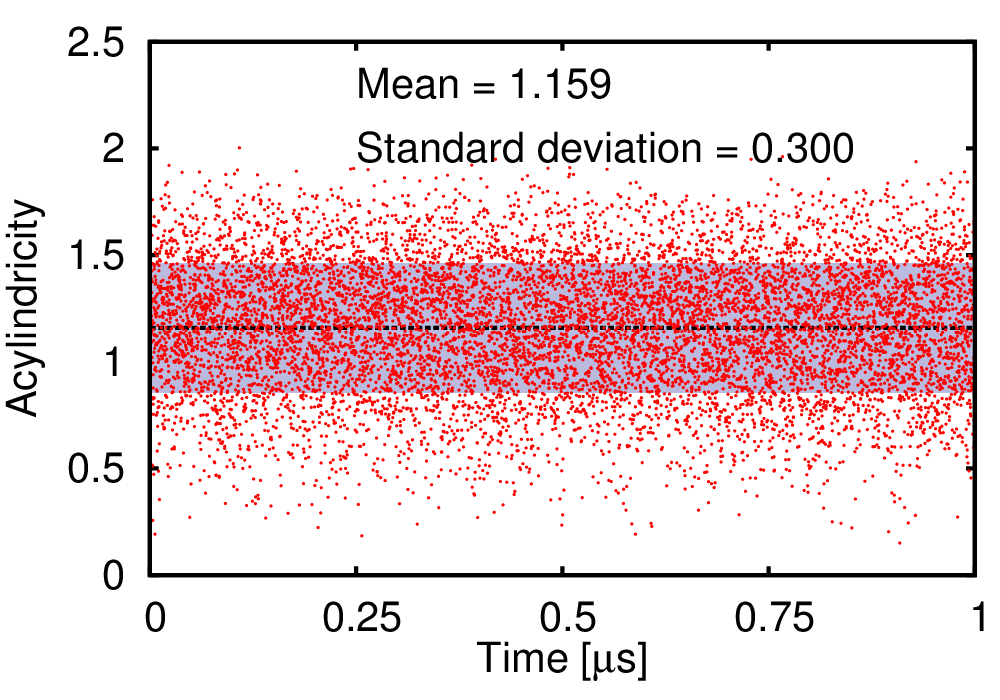

Acylindricity | mean=1.159   [data] [plot] |

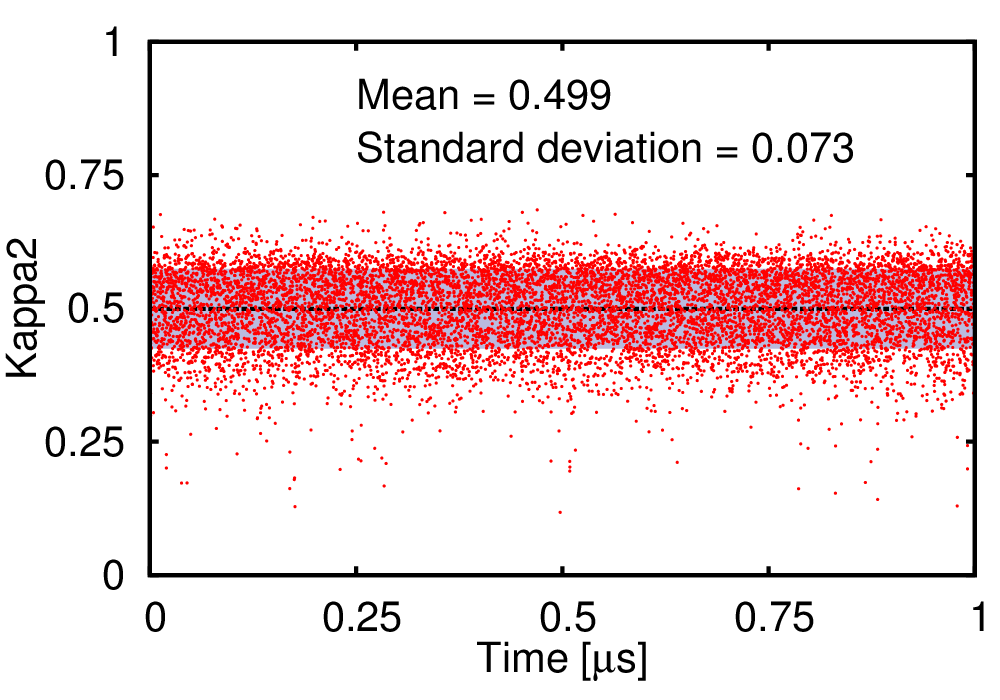

Kappa2 | mean=0.499   [data] [plot] |
External links |
[wiki]
[pubchem] [chemspider] |
