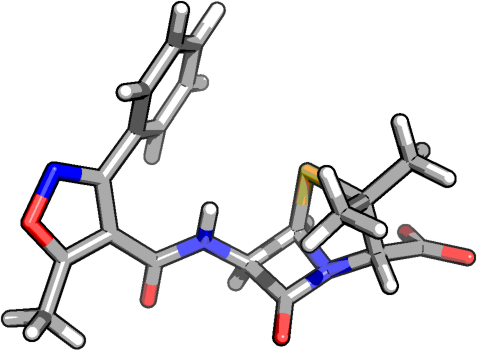

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

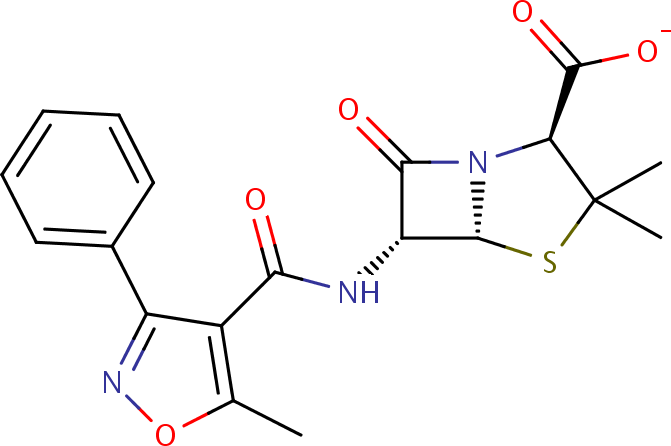

Molecular Formula | C19H18N3O5S |
Molecular Weight (Da) | 400.42832 |
# Atoms, heavy atoms, rotatable bonds | 46     28     4 |
# H-bond donors / acceptors | 1     5 |
Physiological charge | -1 |

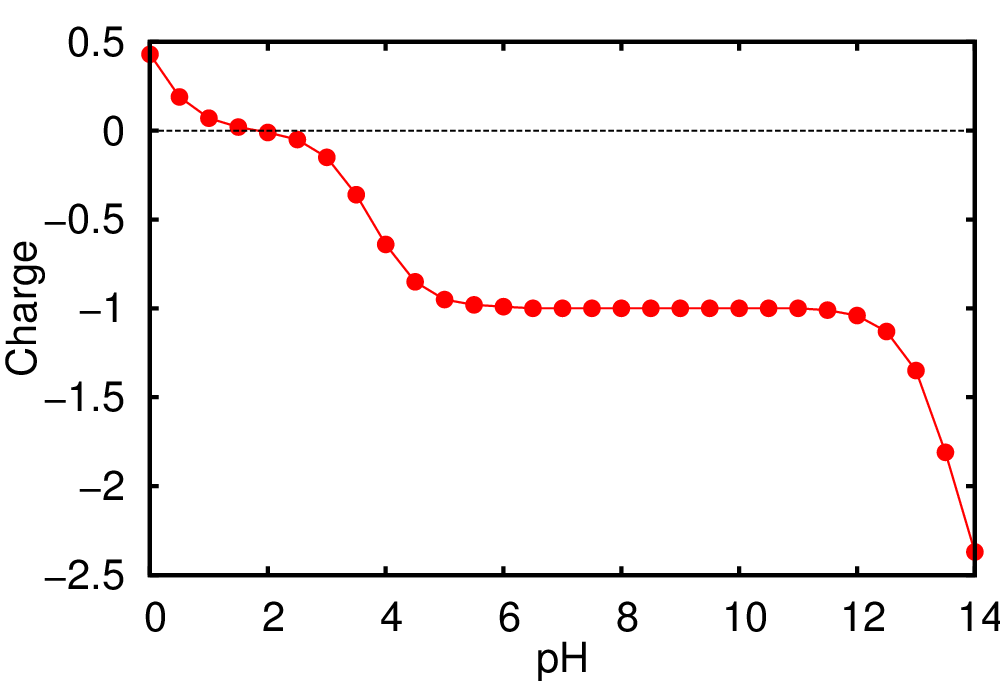

Isoelectric point | 1.82 [data] [plot] |
Van der Waals volume (Å3) | 335.52 |
logP (XLOGP3 CHEMAXON ALOGPS) | 2.53 [data]   1.70   2.10 |
logS (CHEMAXON ALOGPS) | -6.25   -3.55 |

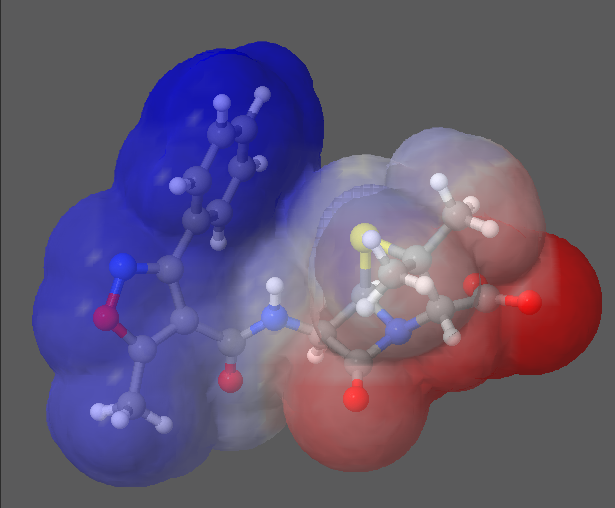

Molecular surface (Å2) | pol=115.56   nonpol=204.72   tot=320.28   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.48     -1.08     4.40 |

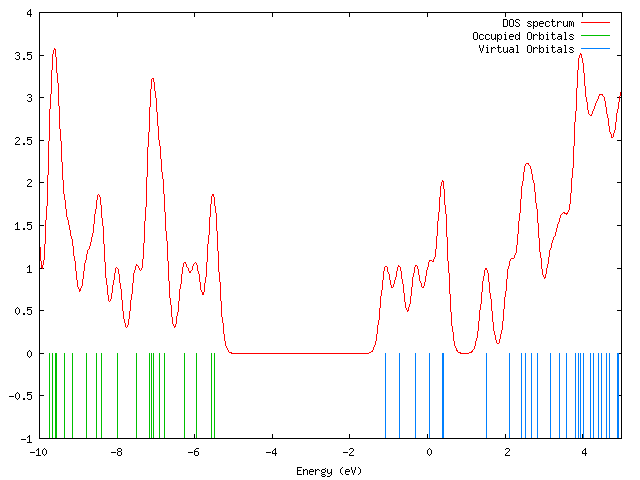

Orbital data | [data] [plot] |

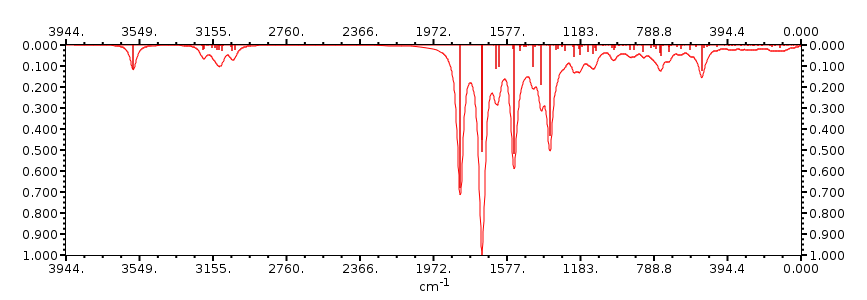

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.27264   B=0.11340   C=0.09146 |

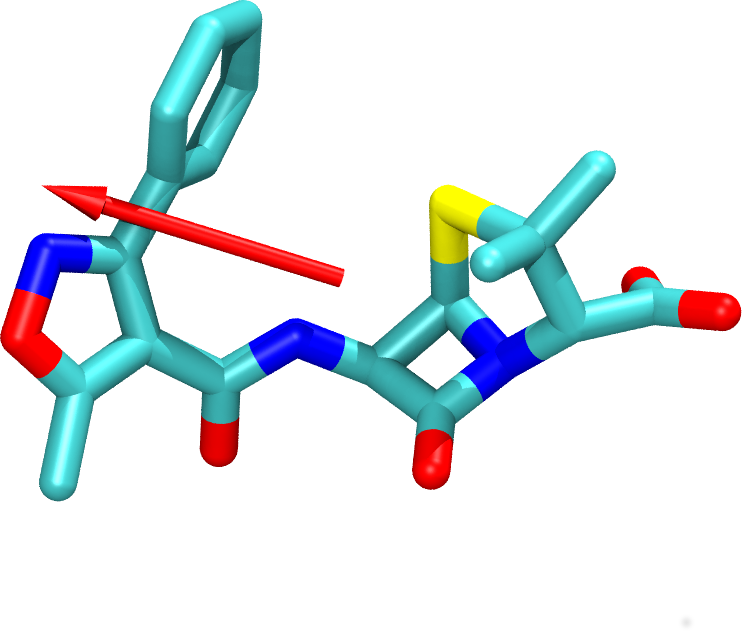

Dipole in vacuum (Debye) | 17.06     [fig] |
COMPUTED MD PROPERTIES |
|

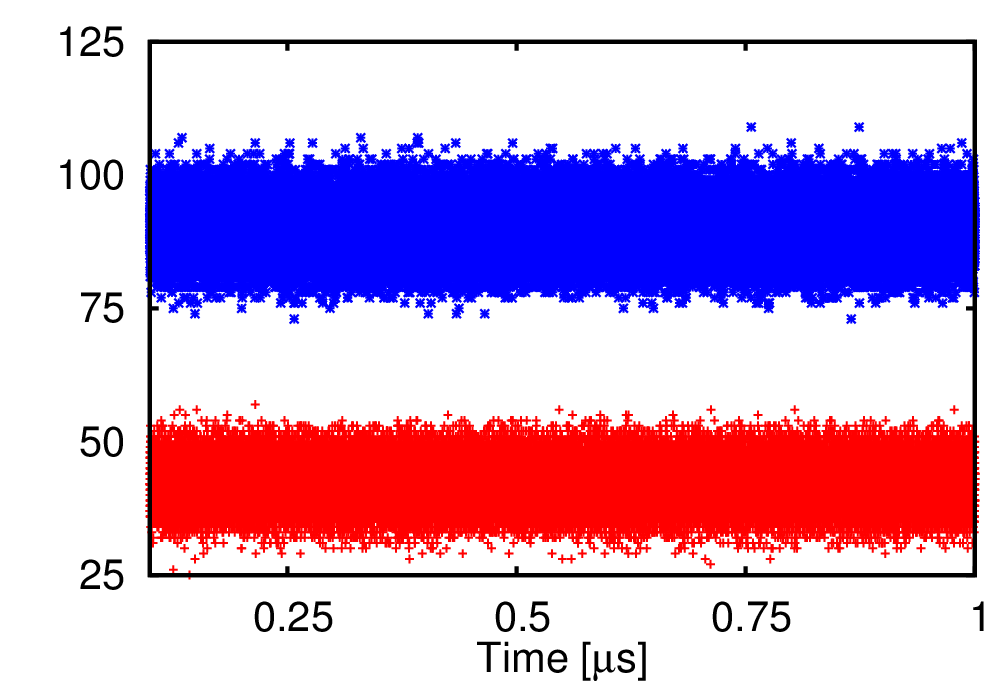

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

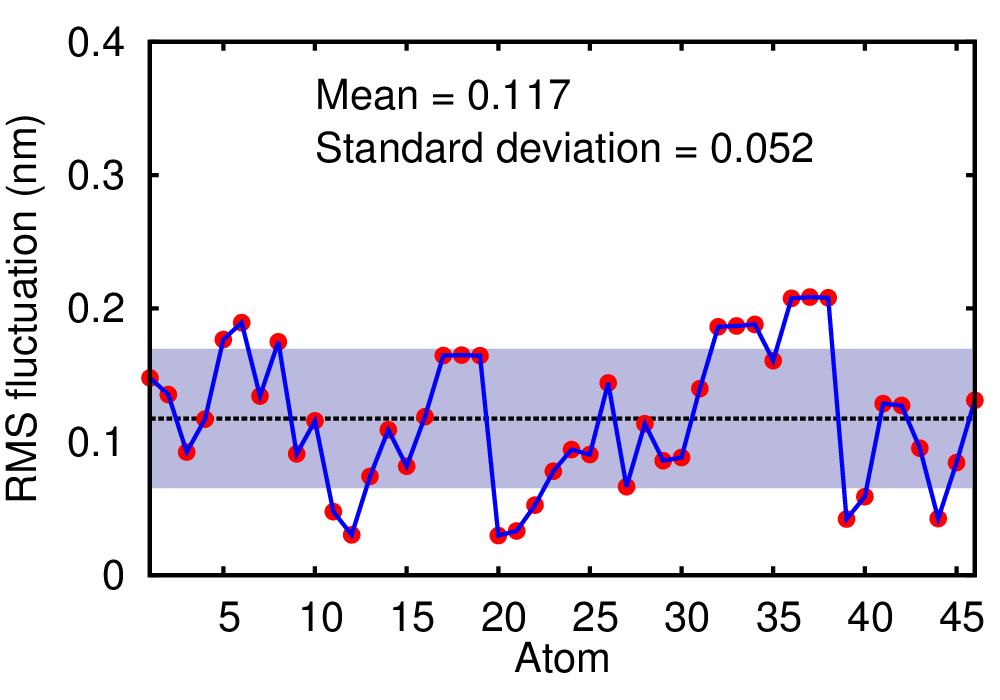

Root mean square fluctuation (nm) | mean=0.117   [data] [plot] |

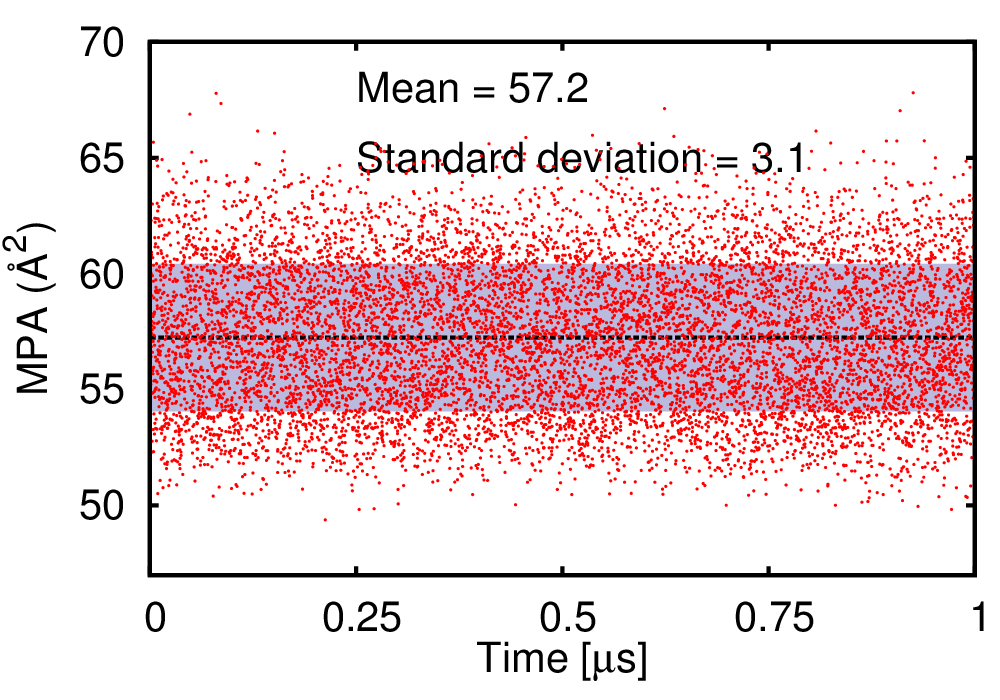

Minimal projection area (Å2) | mean=57.24   [data] [plot] |

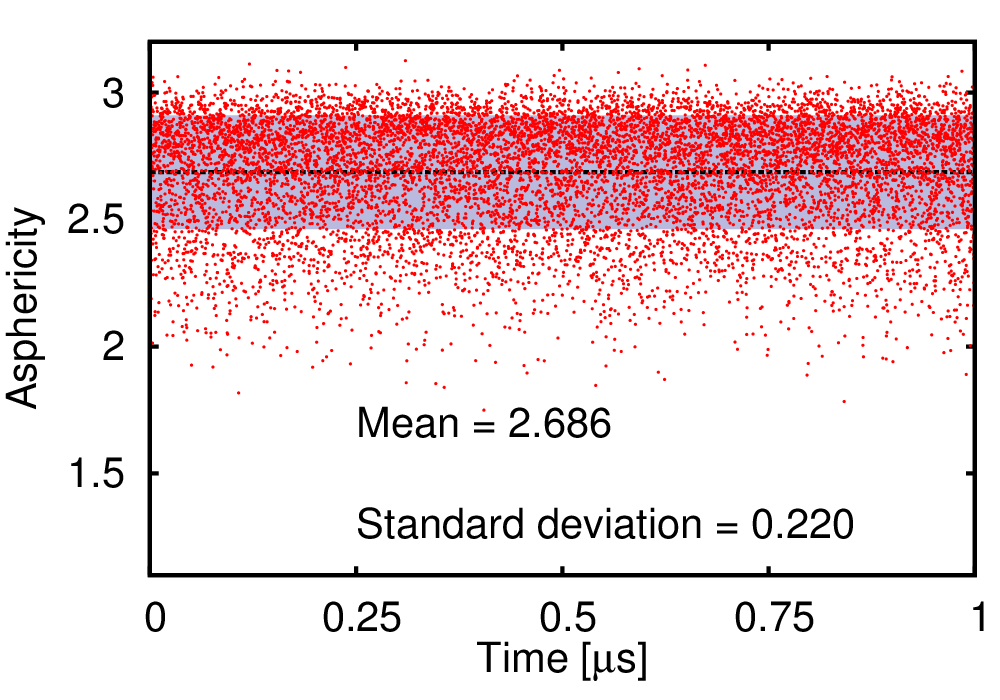

Asphericity | mean=2.686   [data] [plot] |

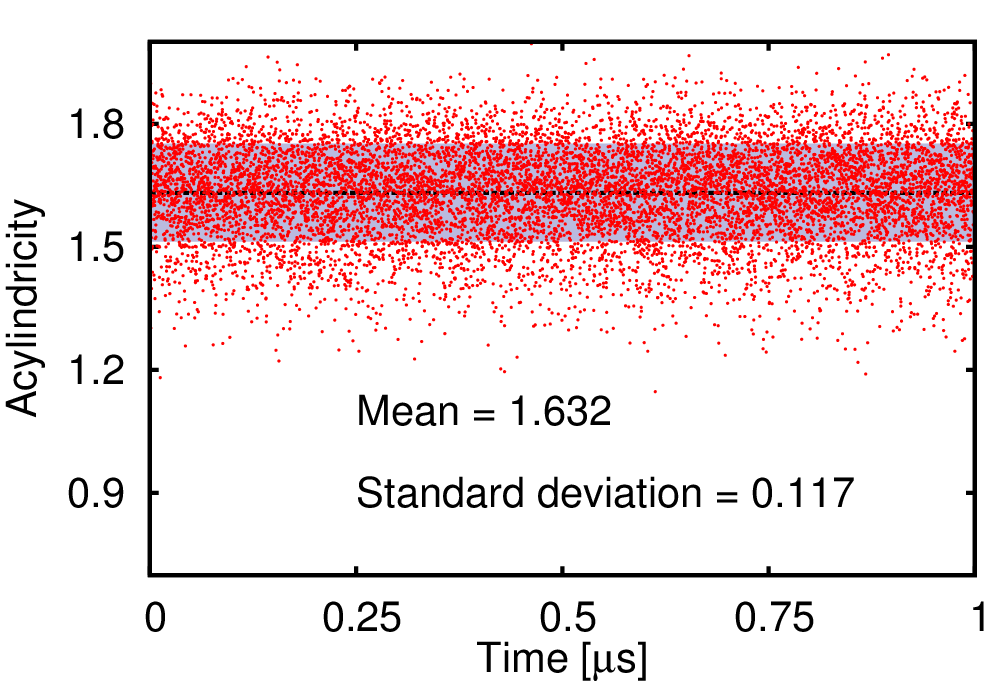

Acylindricity | mean=1.632   [data] [plot] |

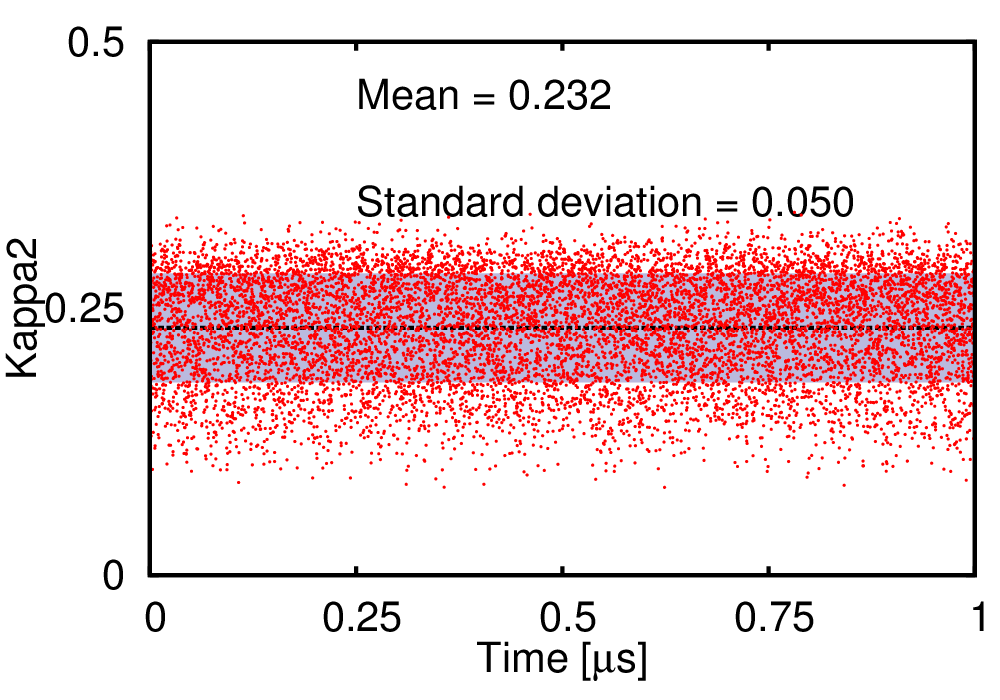

Kappa2 | mean=0.232   [data] [plot] |
External links |
[wiki]
[pubchem] [chemspider] |
