Minocycline

CLICK IMAGE TO ACTIVATE 3D

FORCE-FIELD PARAMETERS
GAFF files	[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf]

GENERAL PROPERTIES

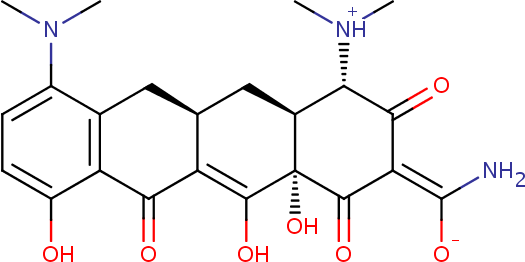

Molecular Formula	C23H27N3O7
Molecular Weight (Da)	457.47638
# Atoms, heavy atoms, rotatable bonds	60     33     2
# H-bond donors / acceptors	5     9
Physiological charge	0

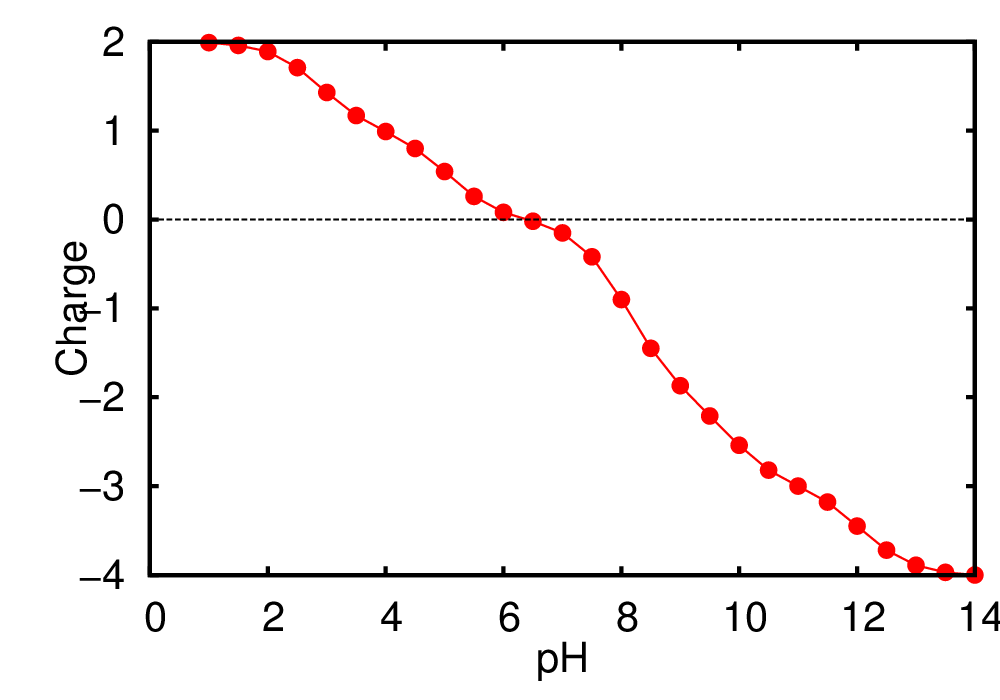

Isoelectric point	6.41 [data] [plot]
Van der Waals volume (Å3)	403.66
logP (XLOGP3 CHEMAXON ALOGPS)	1.85 [data]   -1.53   0.20
logS (CHEMAXON ALOGPS)	-2.46   -3.89

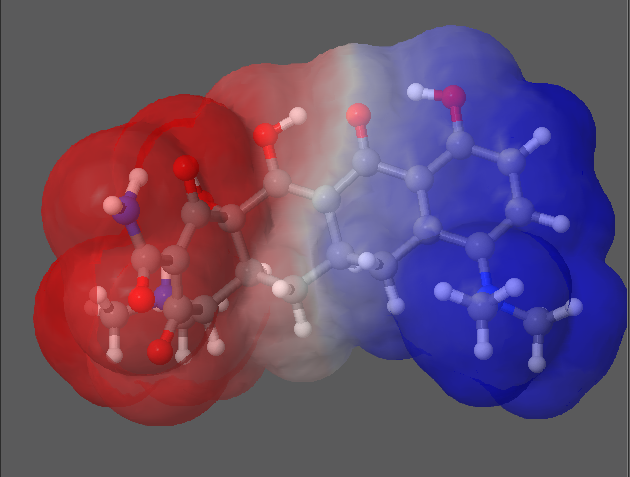

Molecular surface (Å2)	pol=211.54   nonpol=157.72   tot=369.26   [fig]
COMPUTED QM PROPERTIES

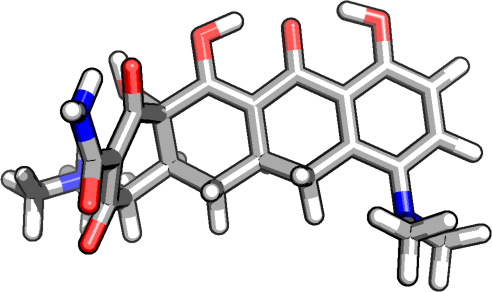

Optimized geometry	[xyz] [sdf]
HOMO, LUMO, GAP (eV)	-5.50     -2.15     3.35

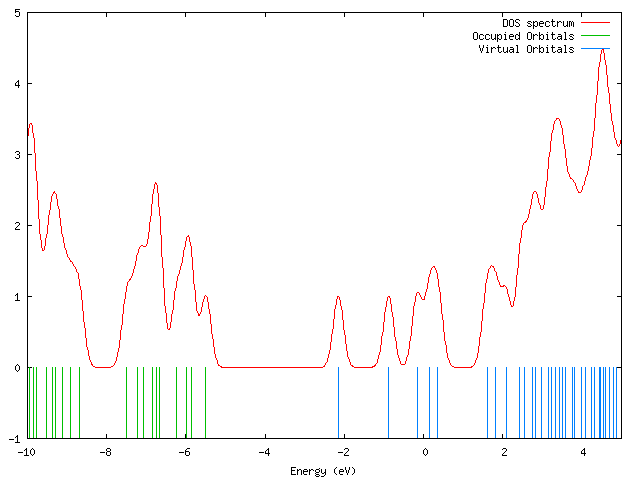

Orbital data	[data] [plot]

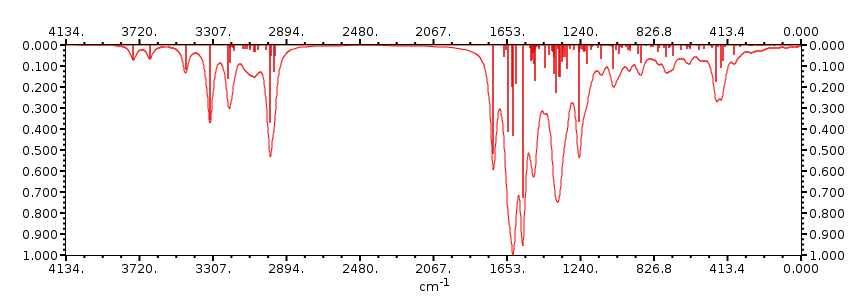

Vibrational properties	[data] [plot]
Rotational constants (GHz)	A=0.21551   B=0.07560   C=0.07020

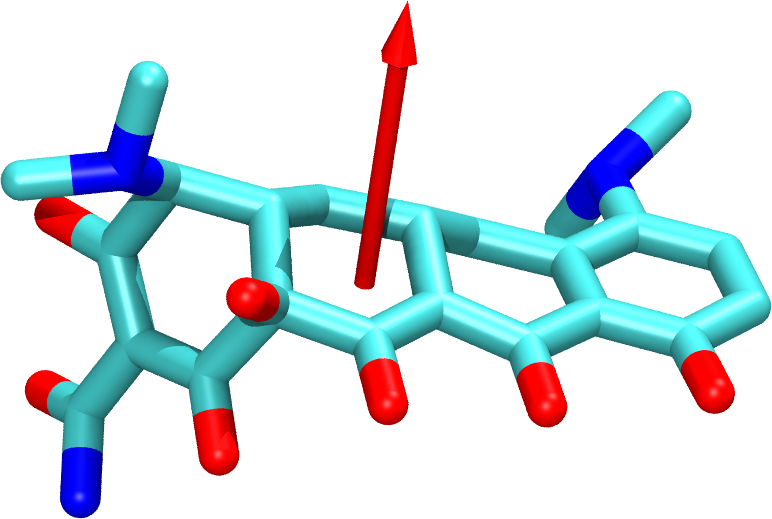

Dipole in vacuum (Debye)	10.94     [fig]
COMPUTED MD PROPERTIES
First and second water shells	[data] [plot]
Intramolecular / water H-bonds	[data] [data]
Cluster analysis	[txt] [pdb] [tgz]

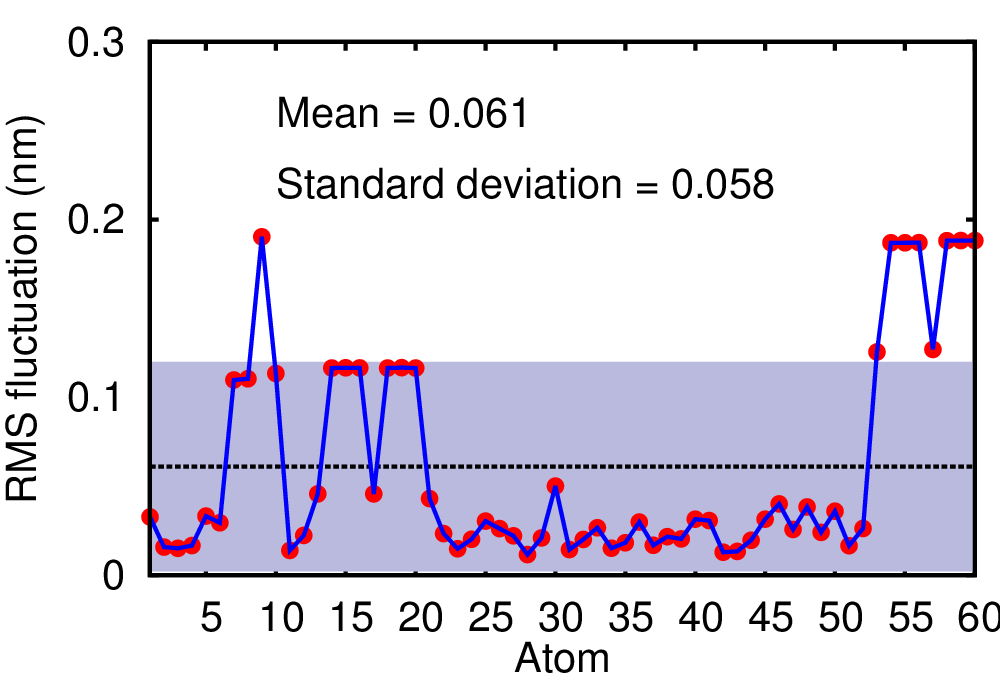

Root mean square fluctuation (nm)	mean=0.061   [data] [plot]

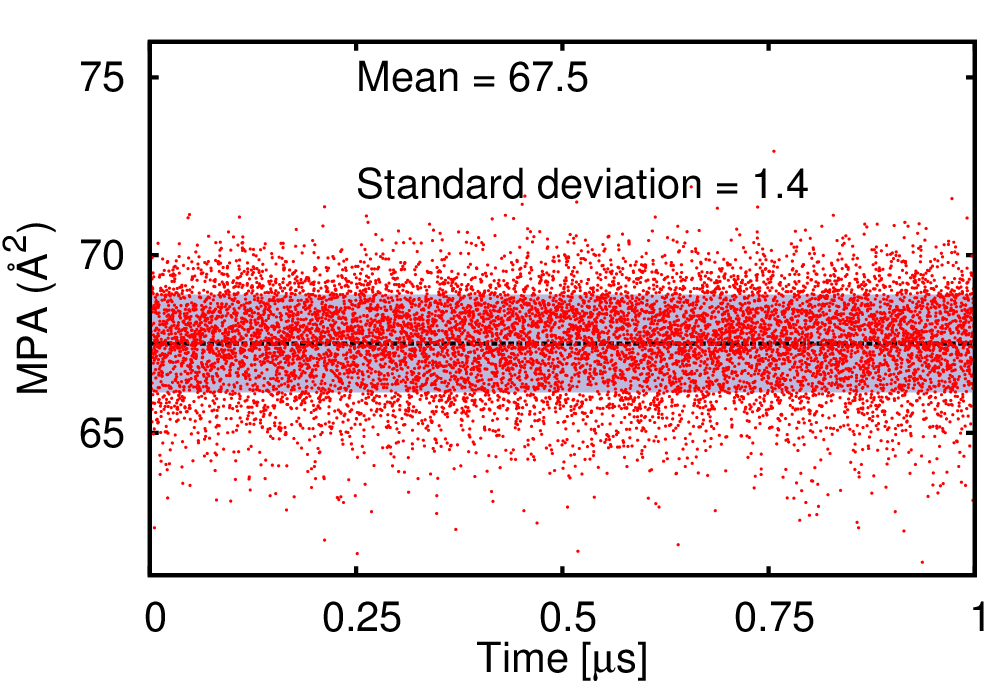

Minimal projection area (Å2)	mean=67.51   [data] [plot]

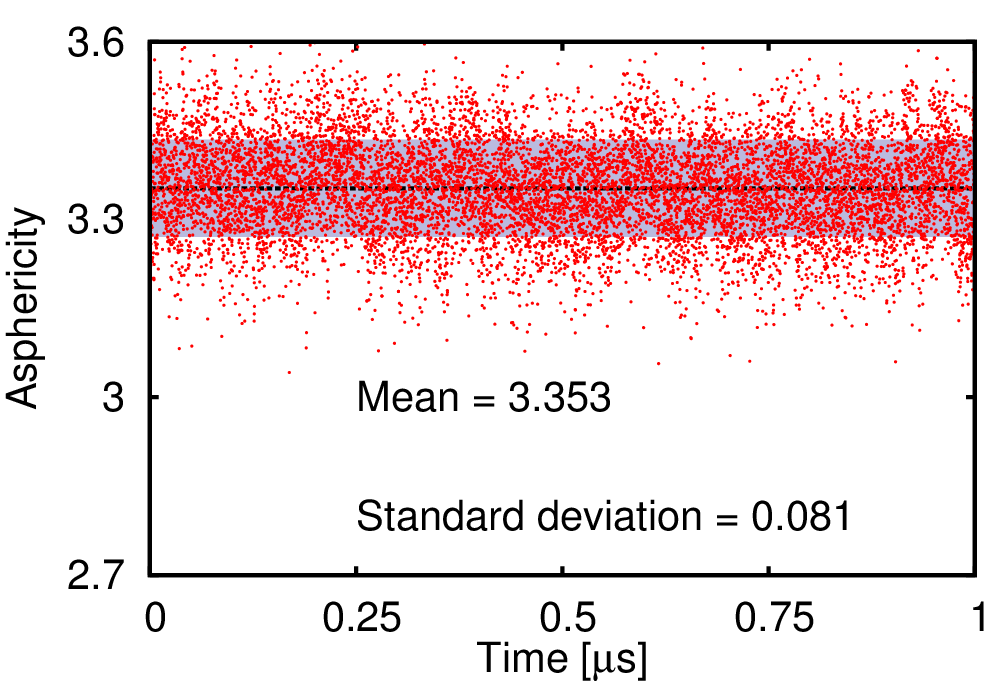

Asphericity	mean=3.353   [data] [plot]

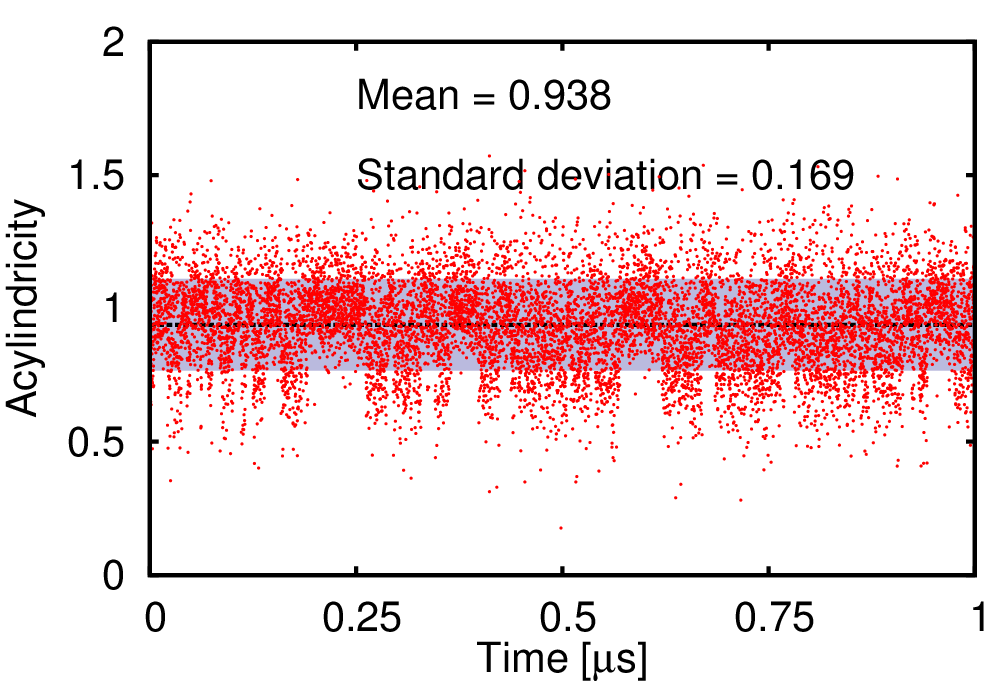

Acylindricity	mean=0.938   [data] [plot]

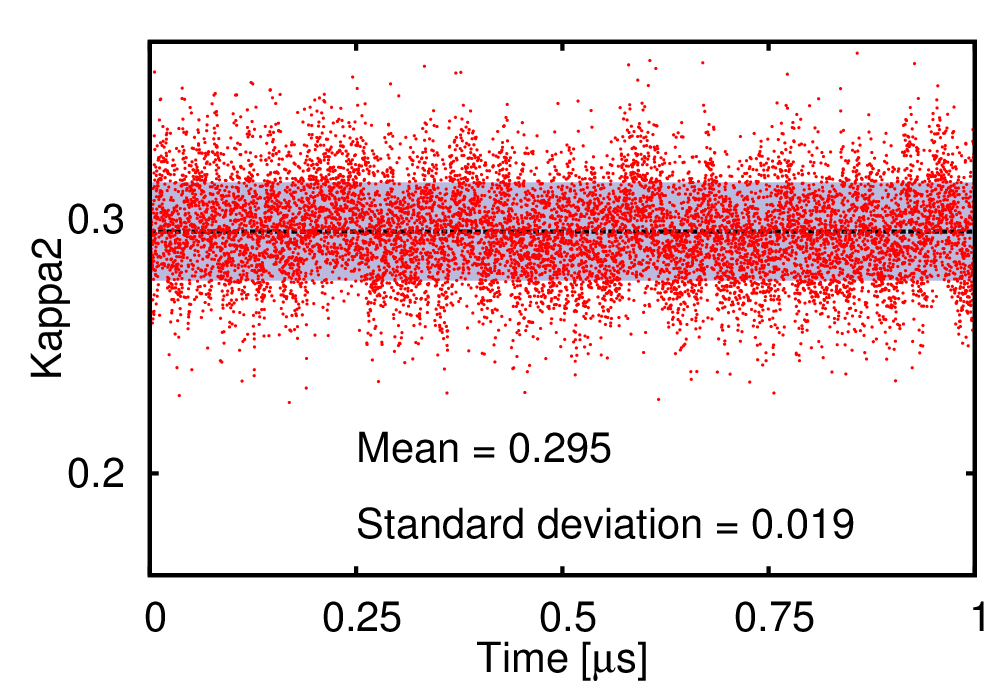

Kappa2	mean=0.295   [data] [plot]

External links

[wiki] [pubchem] [chemspider]

---
