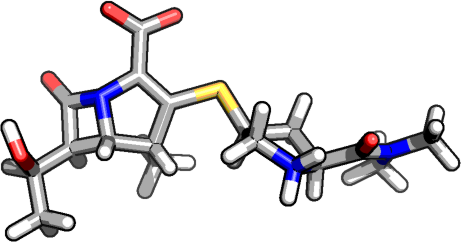

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

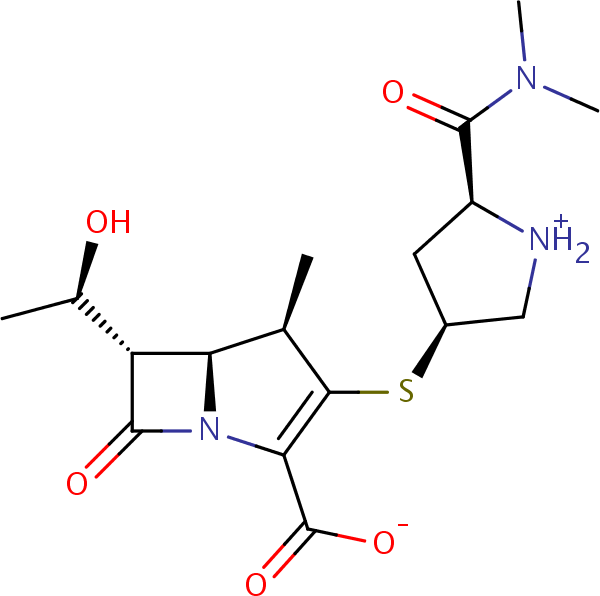

Molecular Formula | C17H25N3O5S |
Molecular Weight (Da) | 383.46250 |
# Atoms, heavy atoms, rotatable bonds | 51     26     5 |
# H-bond donors / acceptors | 2     5 |
Physiological charge | 0 |

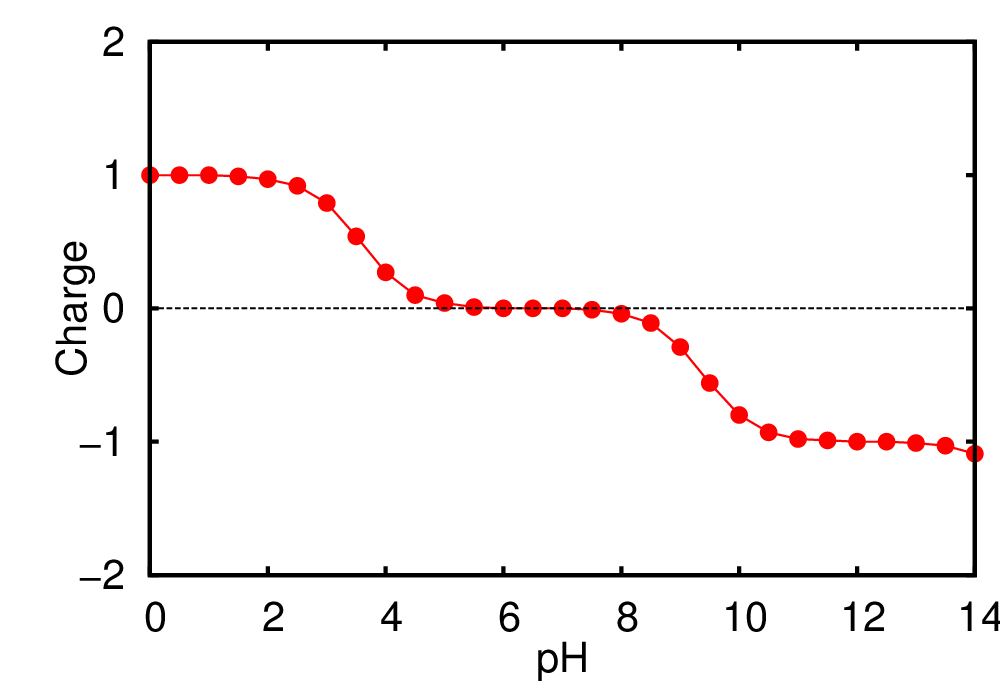

Isoelectric point | 6.48 [data] [plot] |
Van der Waals volume (Å3) | 340.41 |
logP o/w (XLOGP3 CHEMAXON ALOGPS) | -1.71 [data]   -4.35   -0.70 |
logS (CHEMAXON ALOGPS) | -2.58   -3.22 |

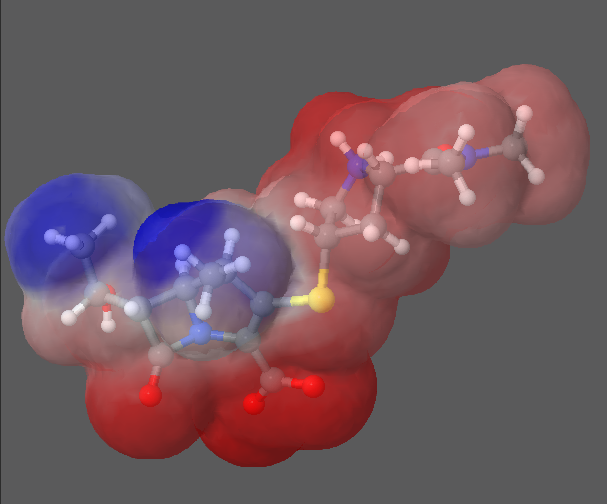

Molecular surface (Å2) | pol=299.17   nonpol=45.02   tot=344.19   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.35     -0.48     4.87 |

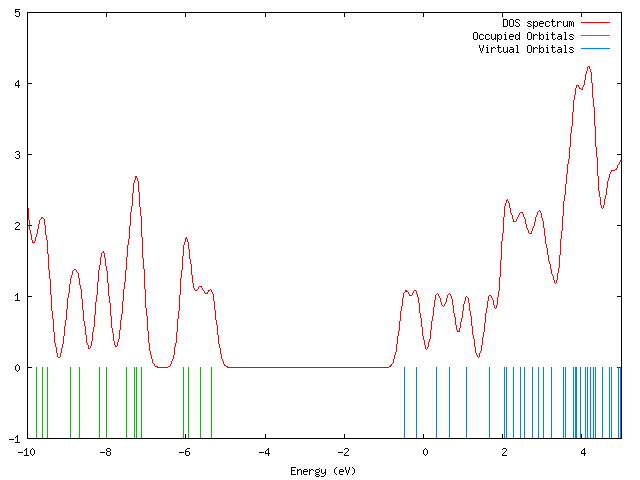

Orbital data | [data] [plot] |

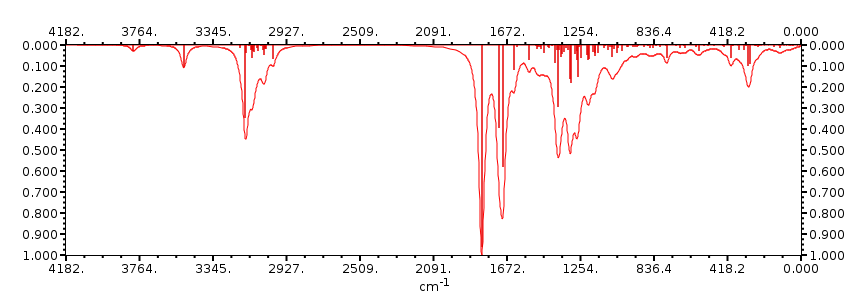

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.34054   B=0.08455   C=0.07669 |

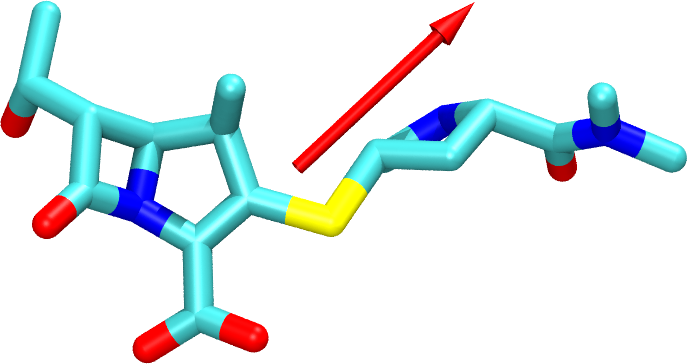

Dipole in vacuum (Debye) | 30.95     [fig] |
COMPUTED MD PROPERTIES |
|

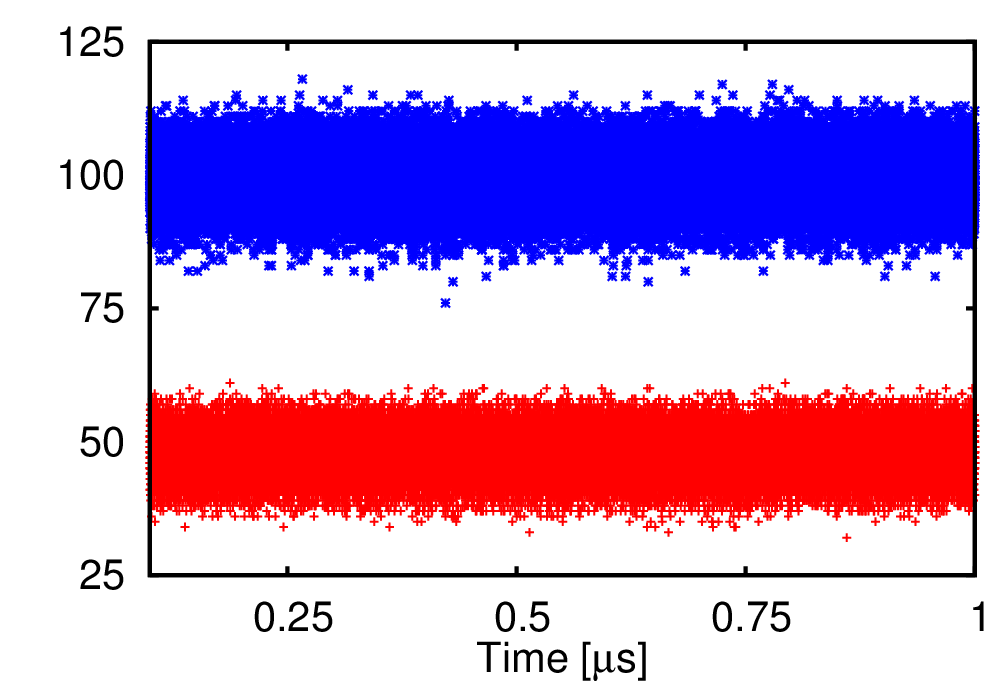

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

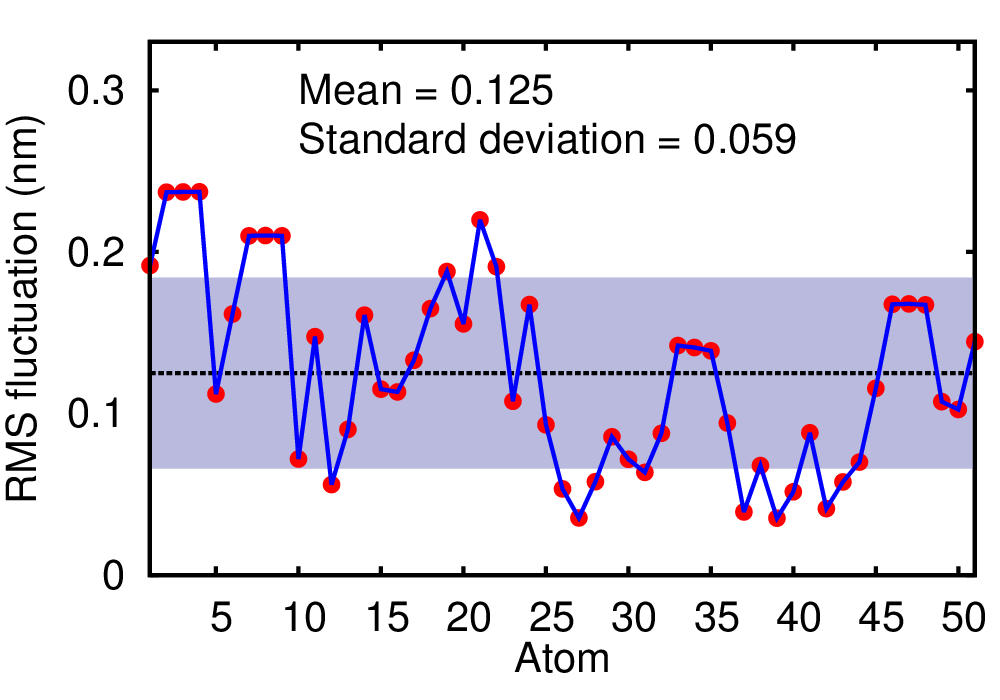

Root mean square fluctuation (nm) | mean=0.125   [data] [plot] |

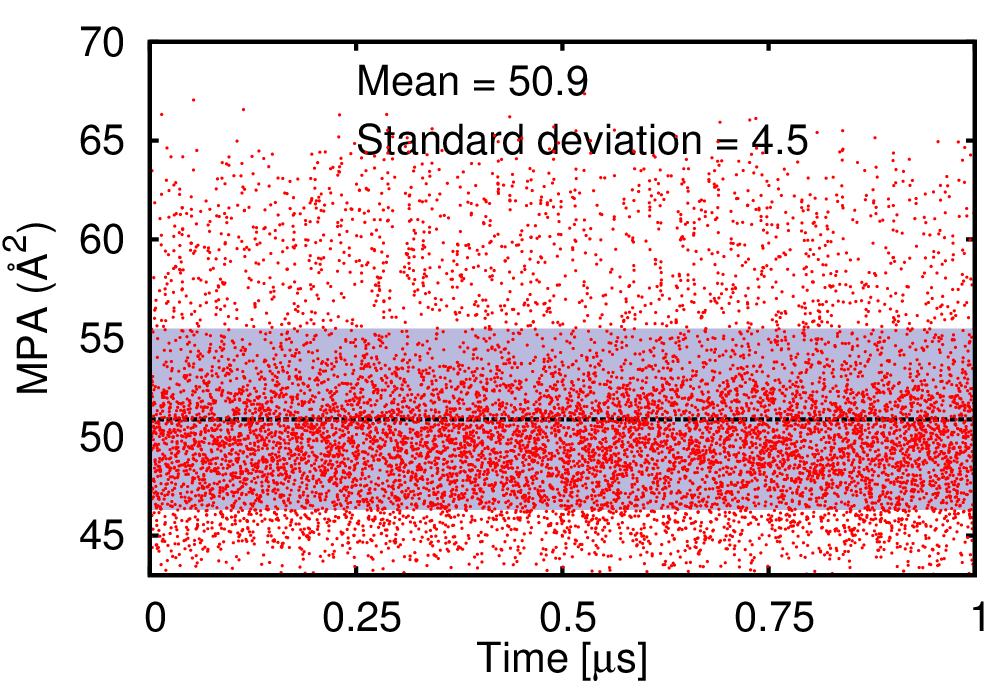

Minimal projection area (Å2) | mean=50.89   [data] [plot] |

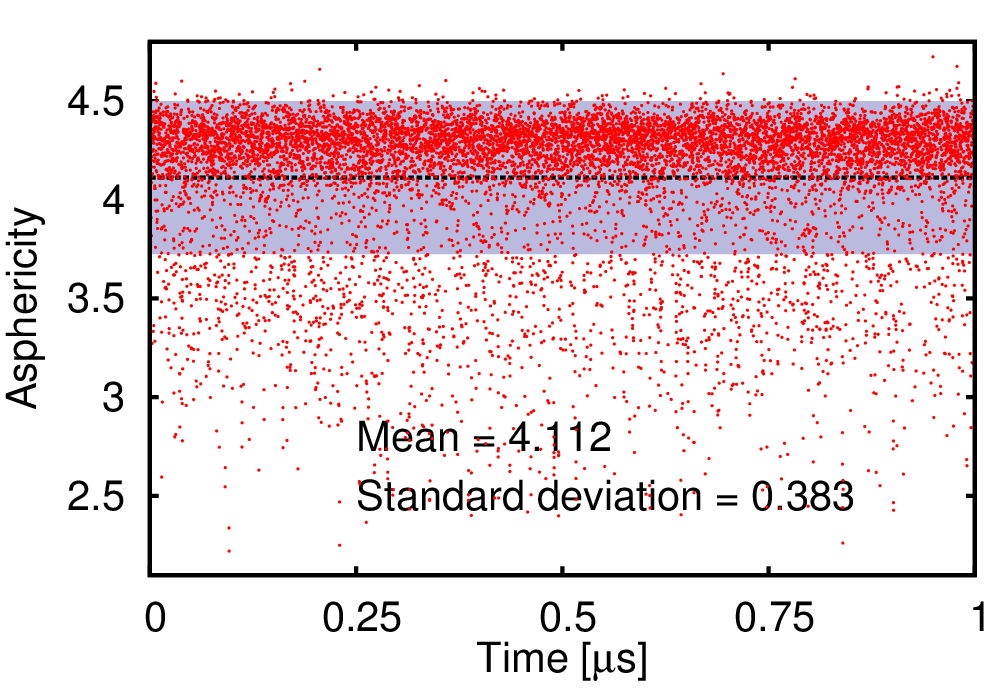

Asphericity | mean=4.112   [data] [plot] |

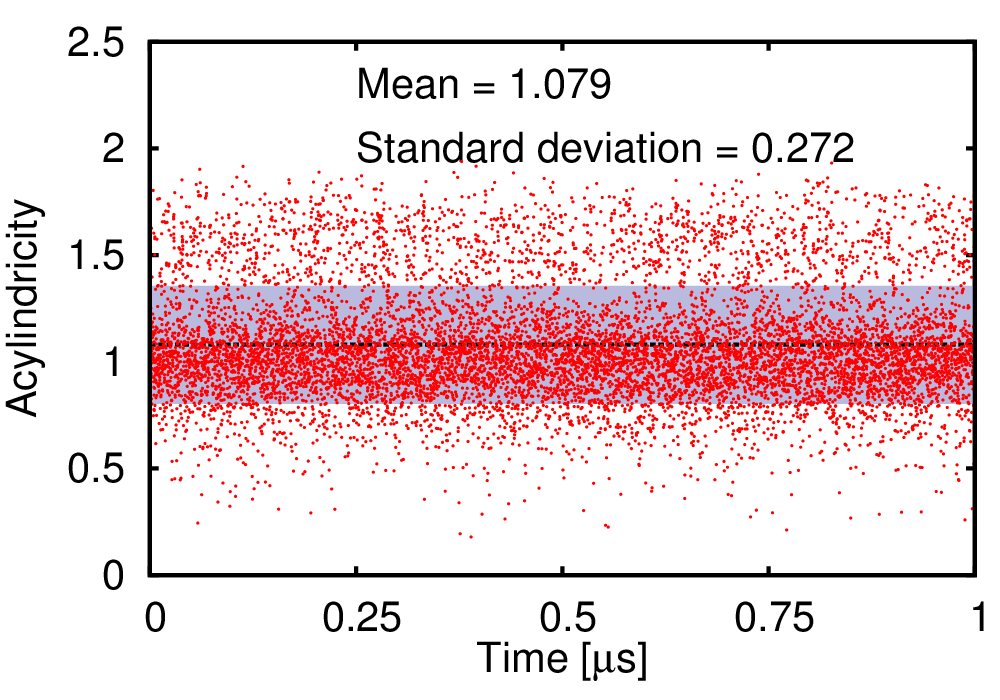

Acylindricity | mean=1.079   [data] [plot] |

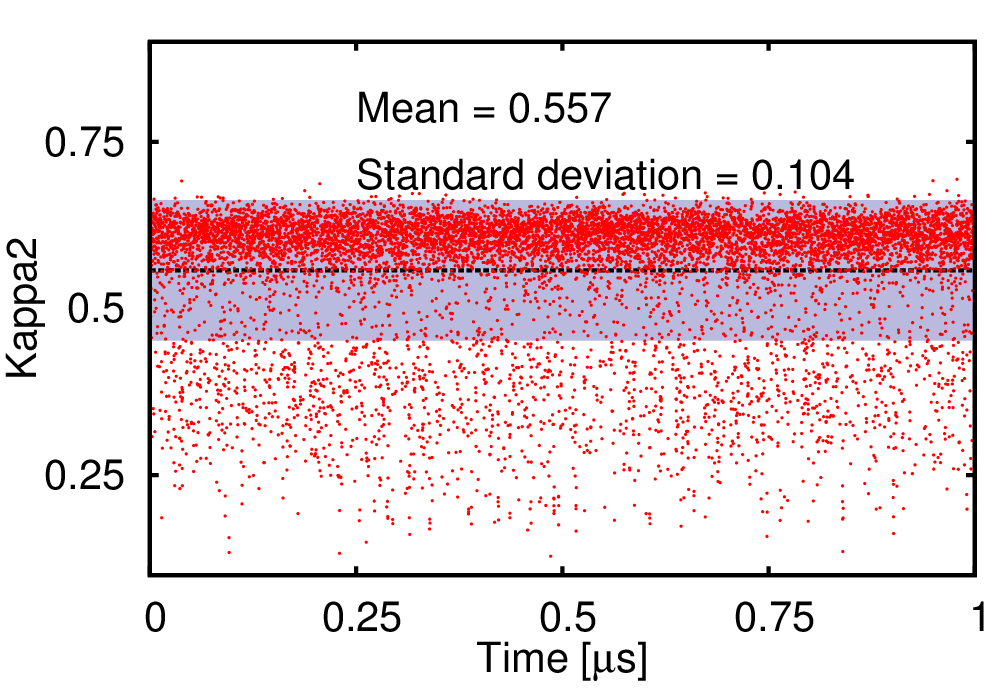

Kappa2 | mean=0.557   [data] [plot] |
External links |
[wiki]
[pubchem] [chemspider] |
