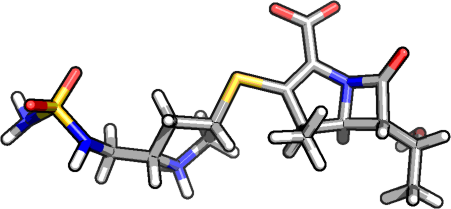

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

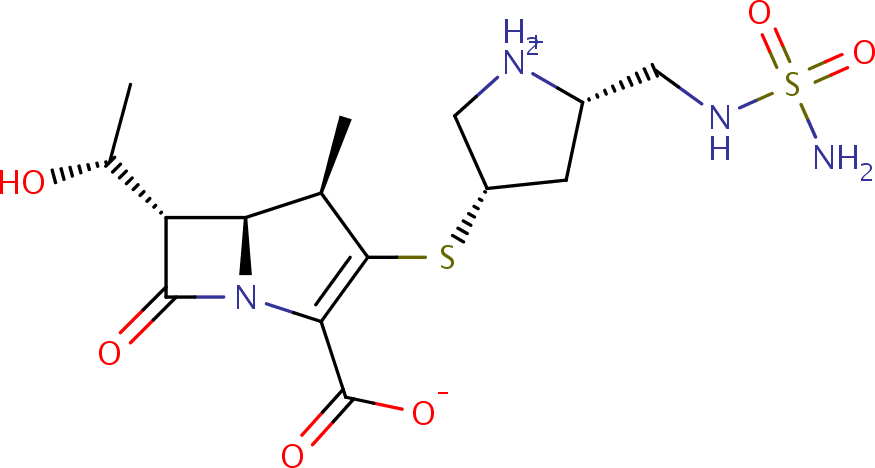

Molecular Formula | C15H24N4O6S2 |
Molecular Weight (Da) | 420.50426 |
# Atoms, heavy atoms, rotatable bonds | 51     27     6 |
# H-bond donors / acceptors | 4     7 |
Physiological charge | 0 |

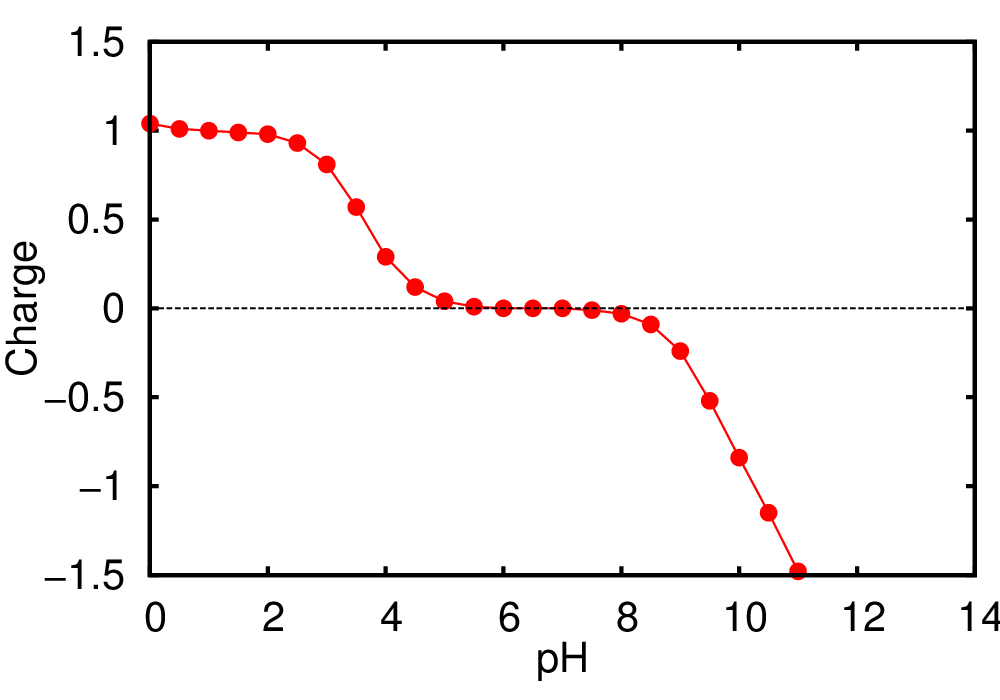

Isoelectric point | 6.55 [data] [plot] |
Van der Waals volume (Å3) | 348.83 |
logP (XLOGP3 CHEMAXON ALOGPS) | -2.78 [data]   -5.56   -0.84 |
logS (CHEMAXON ALOGPS) | -2.35   -2.62 |

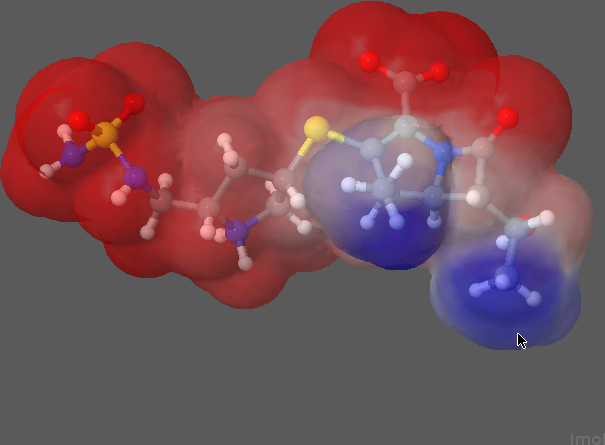

Molecular surface (Å2) | pol=323.44   nonpol=42.61   tot=366.05   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.34     -0.43     4.91 |

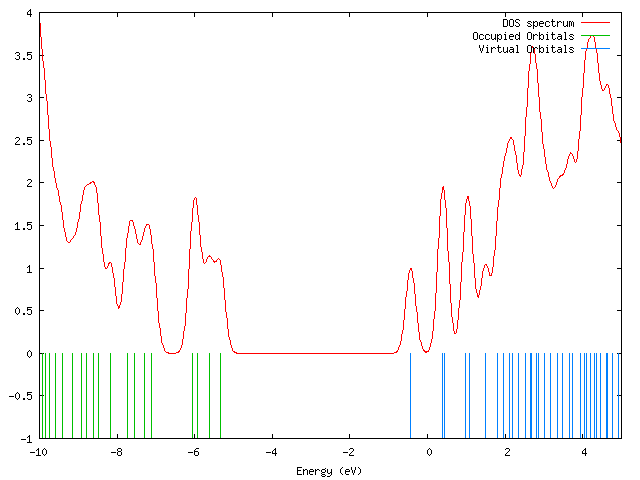

Orbital data | [data] [plot] |

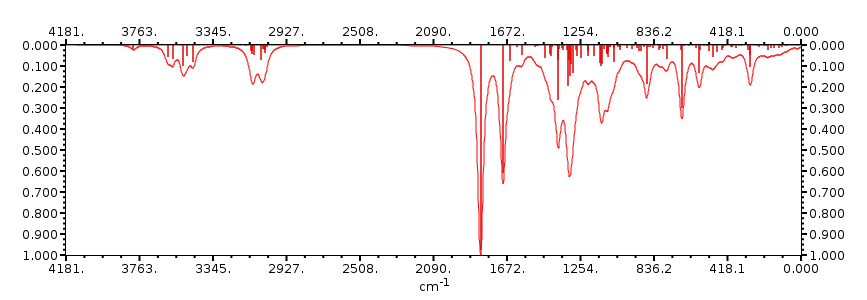

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.36811   B=0.05799   C=0.05326 |

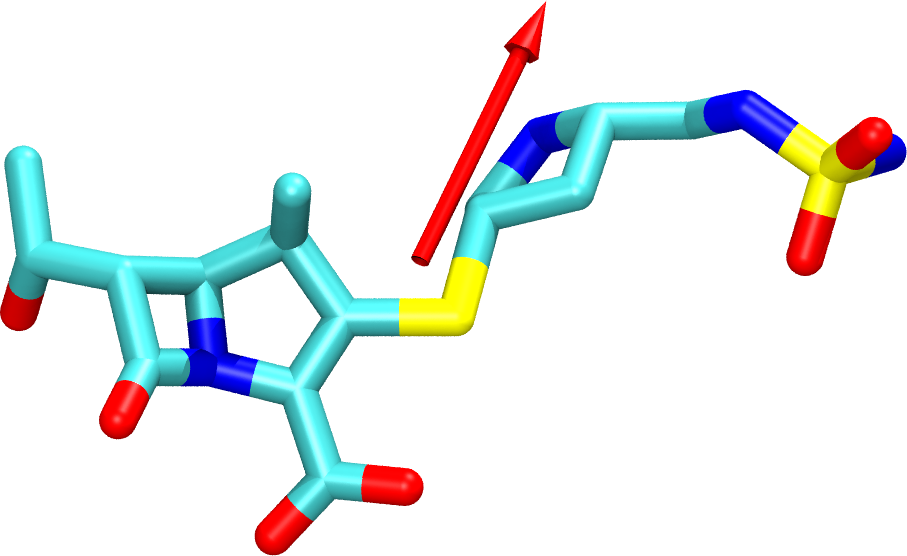

Dipole in vacuum (Debye) | 35.43     [fig] |
COMPUTED MD PROPERTIES |
|

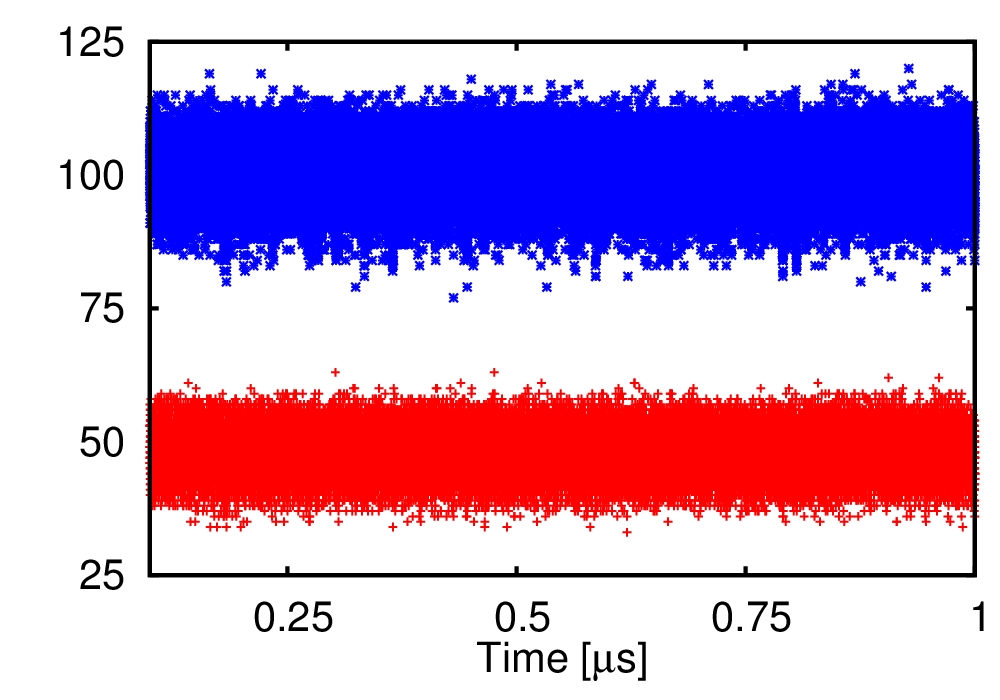

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

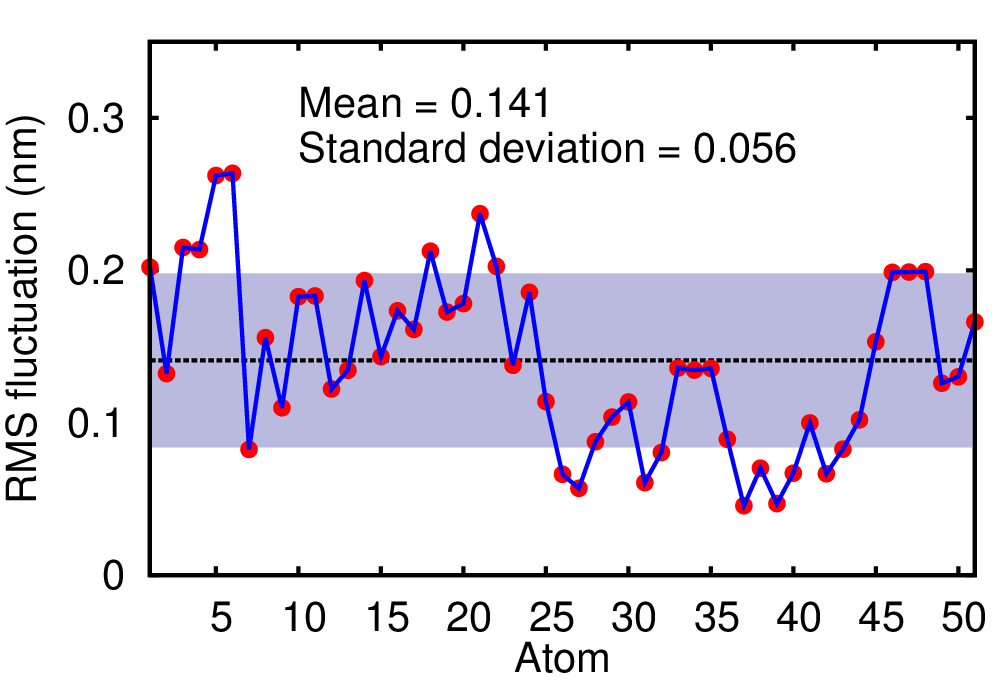

Root mean square fluctuation (nm) | mean=0.141   [data] [plot] |

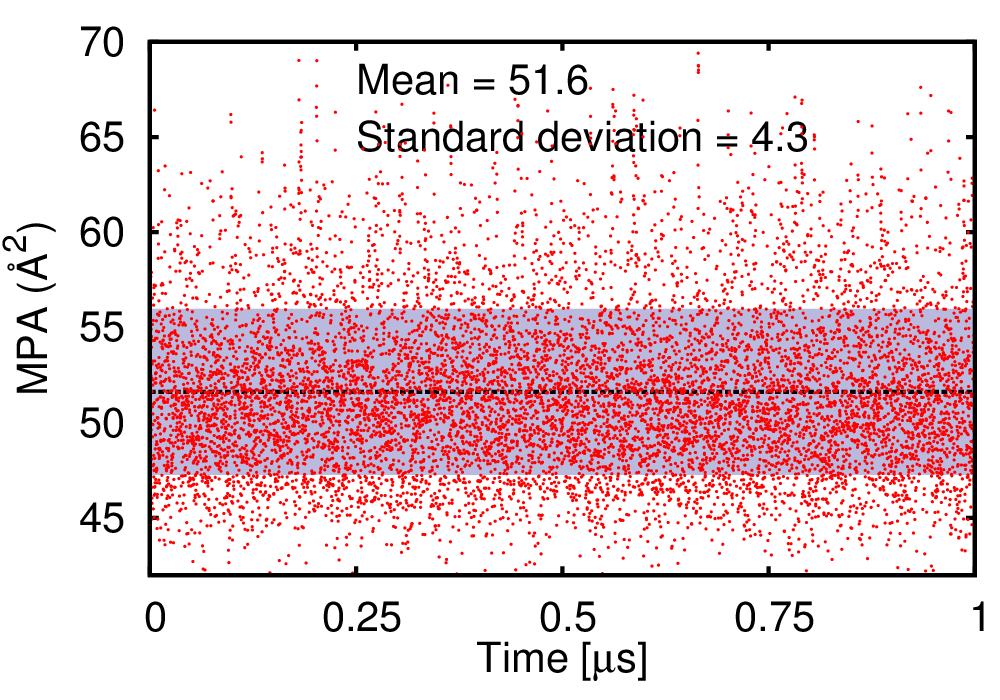

Minimal projection area (Å2) | mean=51.61   [data] [plot] |

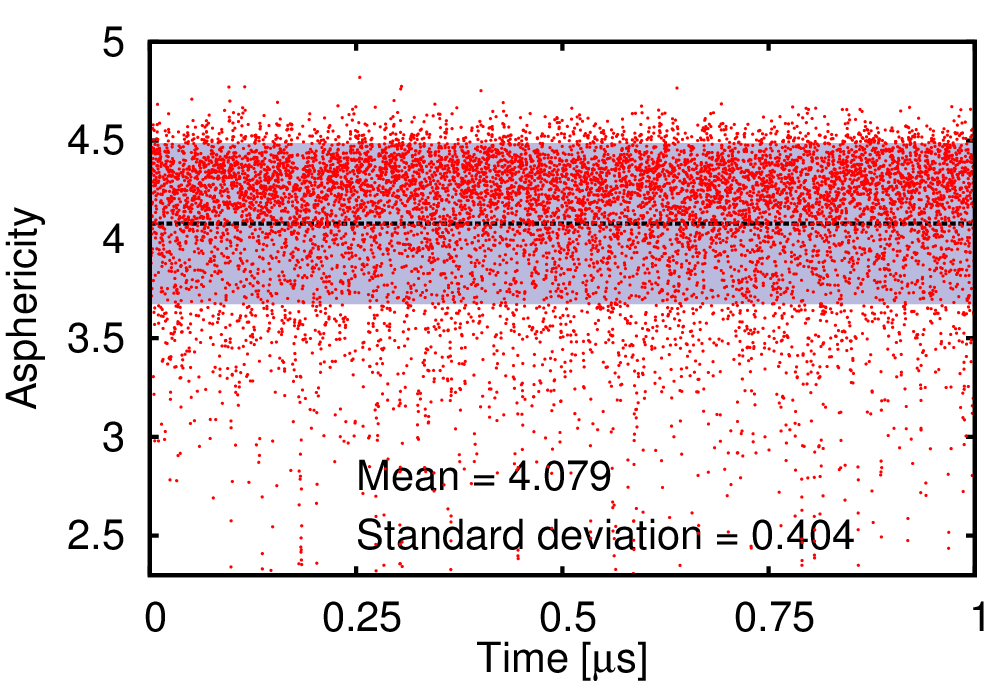

Asphericity | mean=4.079   [data] [plot] |

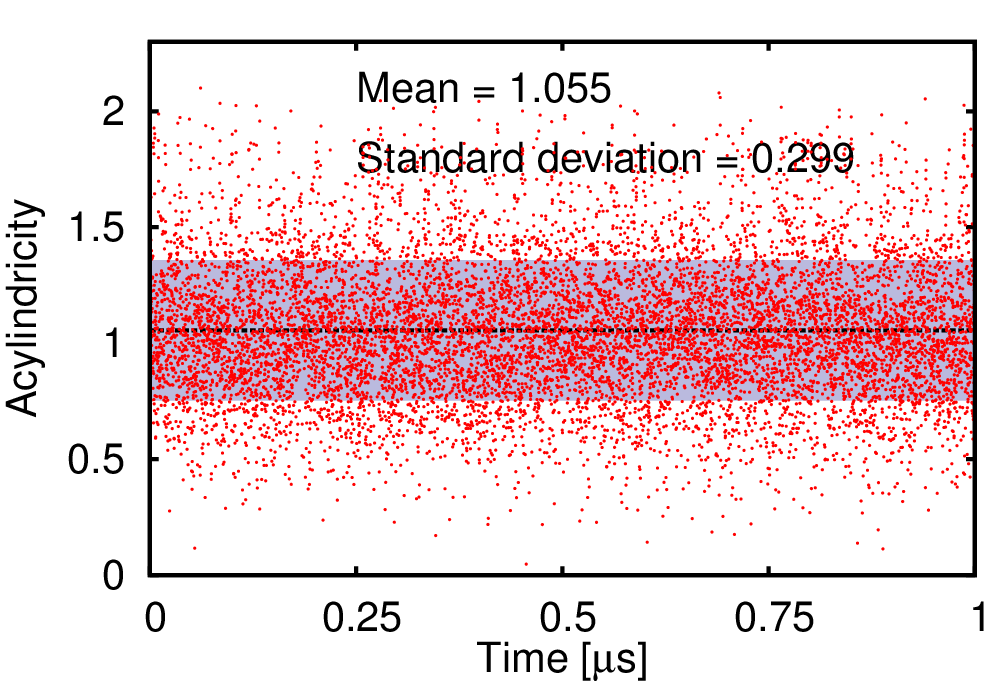

Acylindricity | mean=1.055   [data] [plot] |

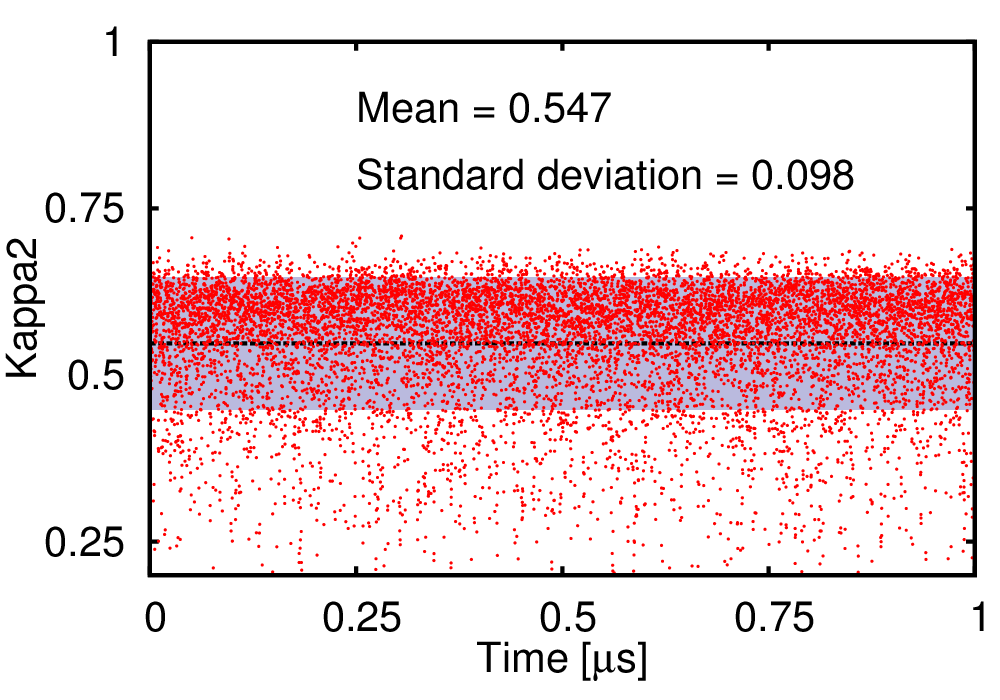

Kappa2 | mean=0.547   [data] [plot] |
External links |
[wiki]
[pubchem] [chemspider] |
