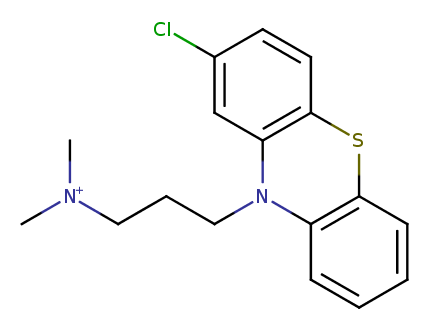

Chlorpromazine

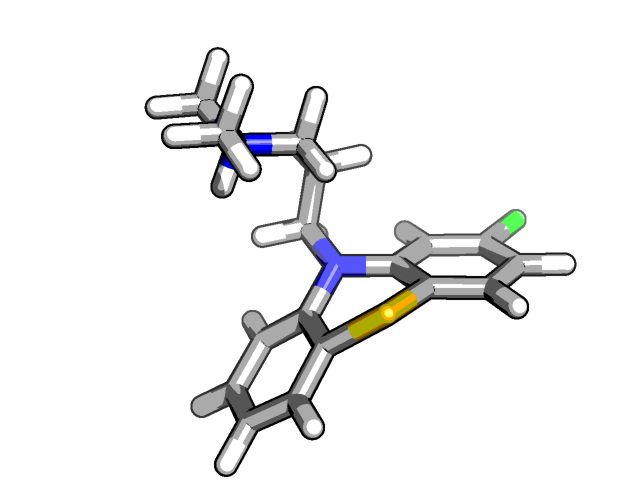

CLICK IMAGE TO ACTIVATE 3D

FORCE-FIELD PARAMETERS
GAFF files	[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf]

GENERAL PROPERTIES
Molecular Formula	C17H20ClN2S
Molecular Weight (Da)	319.8721
# Atoms, heavy atoms, rotatable bonds	41     21     4
# H-bond donors / acceptors	1     1
Physiological charge	+1

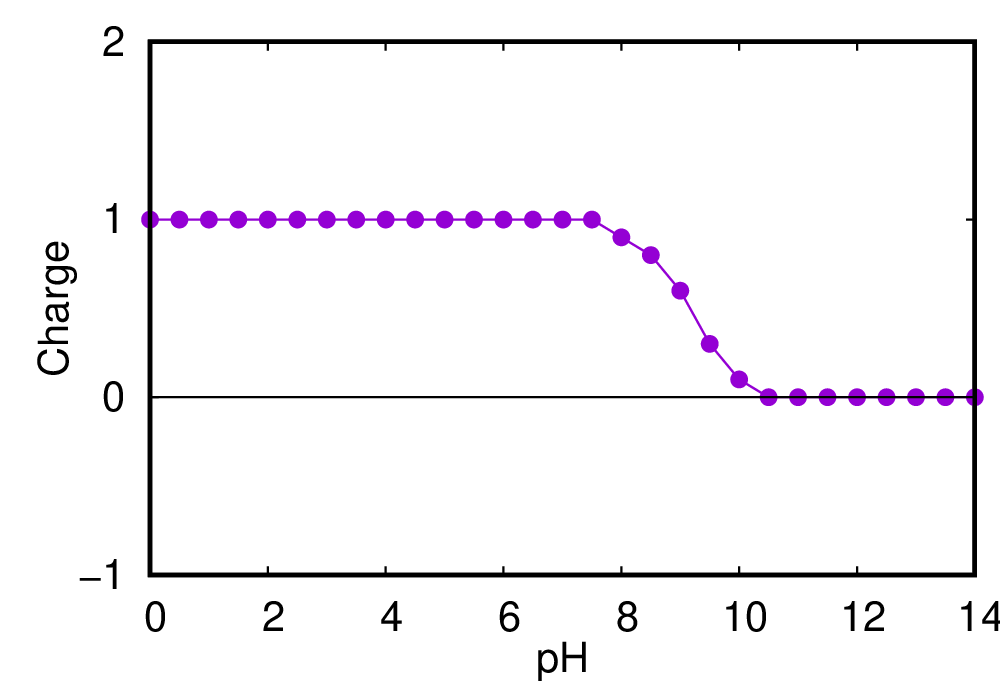

Isoelectric point	undefined   [data] [plot]
Van der Waals volume (Å3)	288.66
logP (XLOGP3 CHEMAXON ALOGPS)	4.77 [data]   4.54   5.18
logS (CHEMAXON ALOGPS)	-4.85   -4.88
COMPUTED QM PROPERTIES
Optimized geometry	[xyz] [sdf]
HOMO, LUMO, GAP (eV)	-5.56     -0.75     4.81/td>

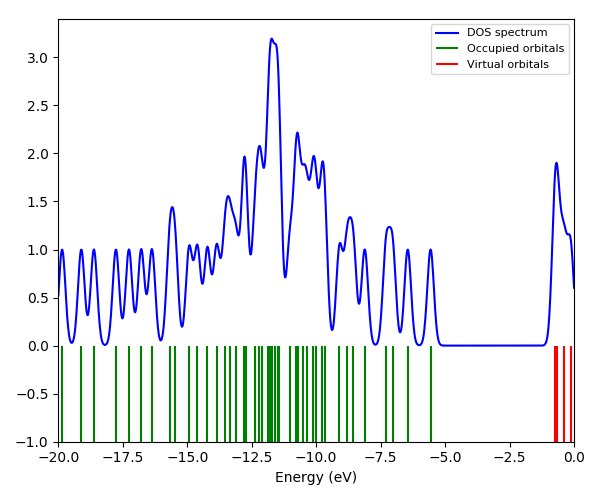

Orbital data	[data] [plot]

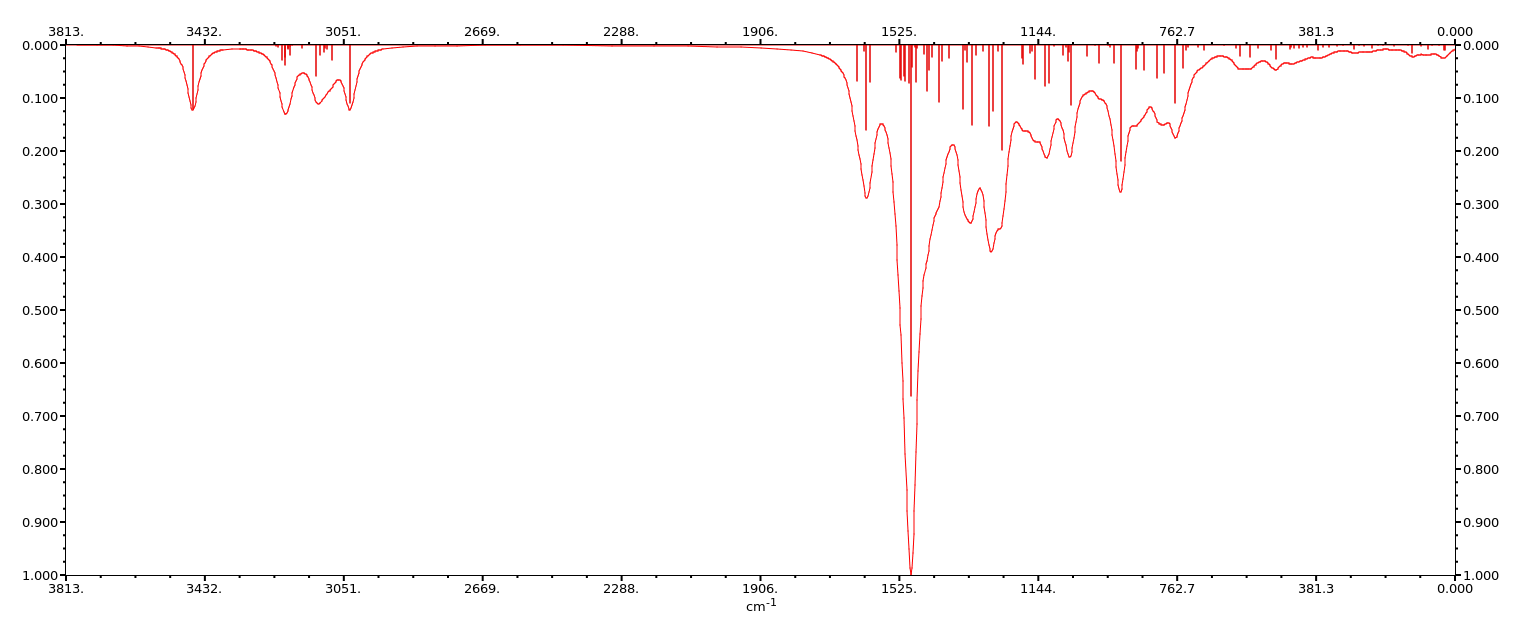

Vibrational properties	[data] [plot]
Rotational constants (GHz)	A=0.29268   B=0.19992   C=0.14957

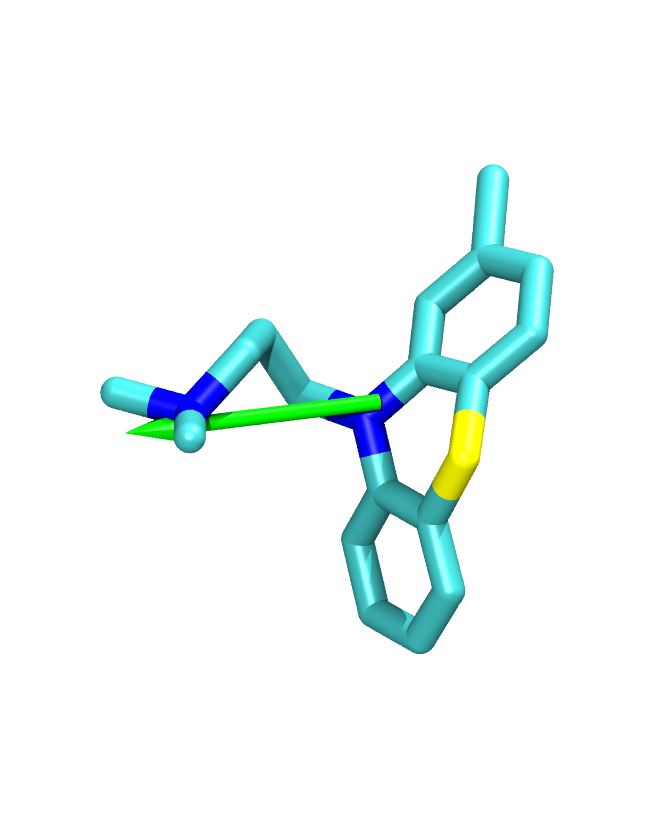

Dipole in vacuum (Debye)	15.83   [fig]
COMPUTED MD PROPERTIES

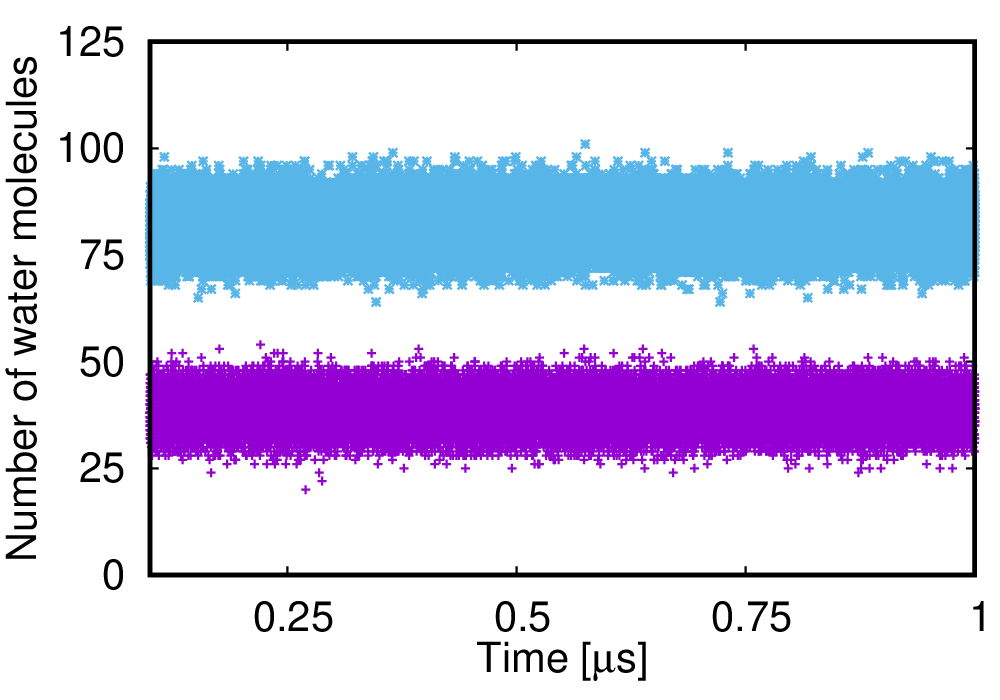

First and second water shells	[data] [plot]
Intramolecular / water H-bonds	[data] [data]
Cluster analysis	[txt] [pdb] [tgz]

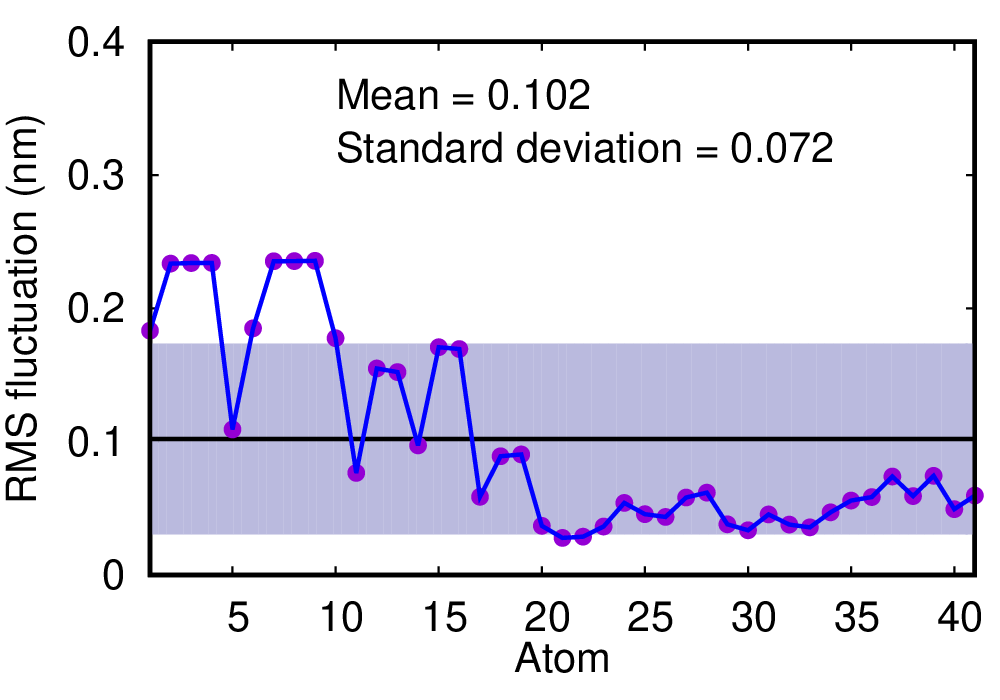

Root mean square fluctuation (nm)	mean=0.102   [data] [plot]

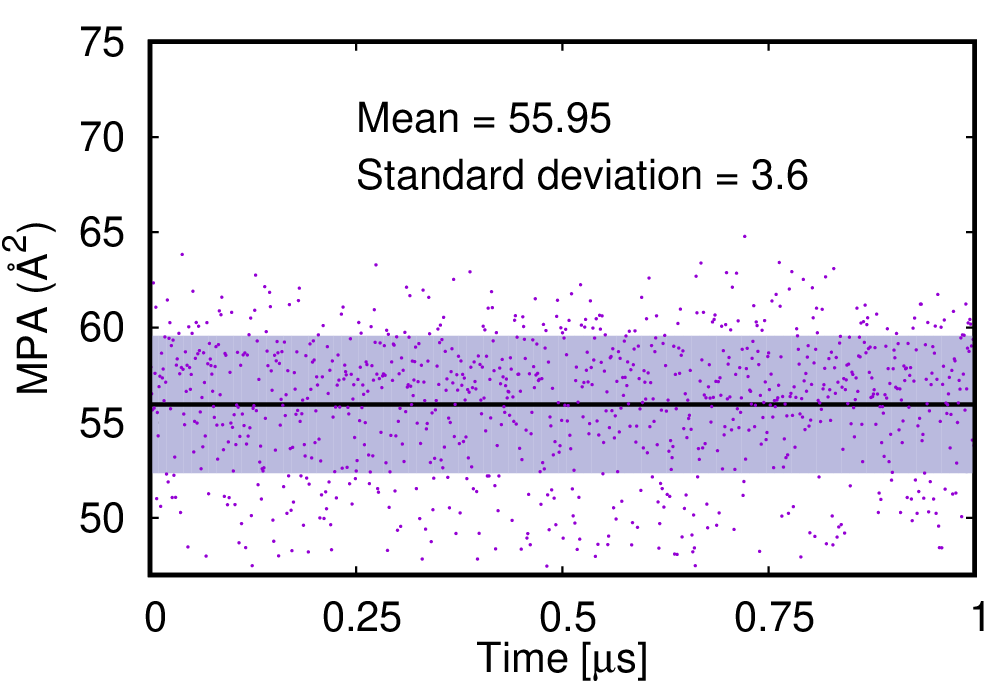

Minimal projection area (Å2)	mean=55.95   [data] [plot]

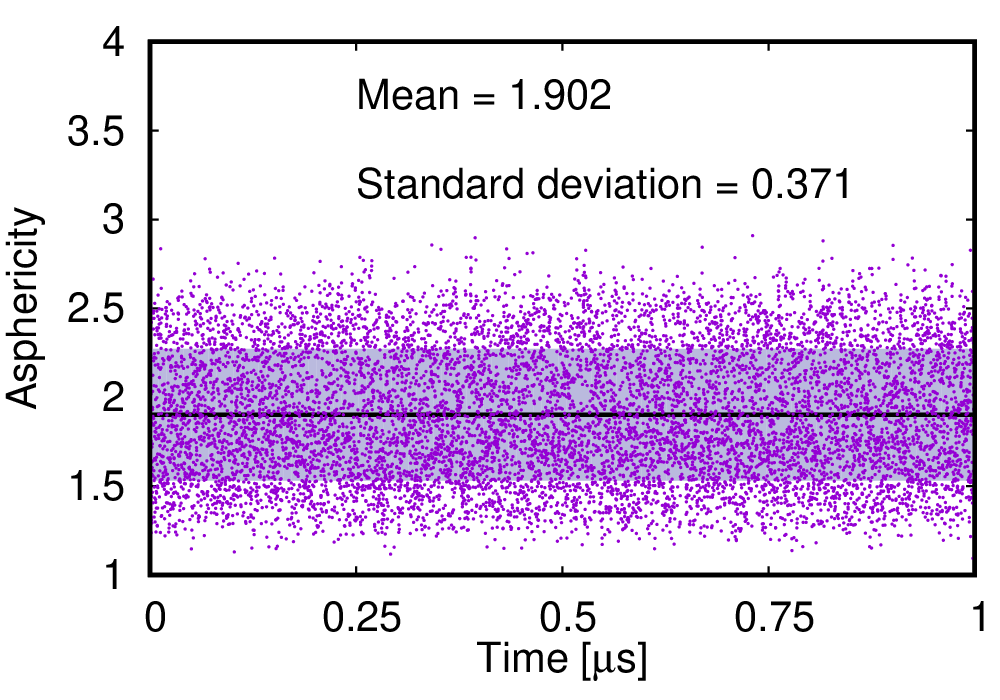

Asphericity	mean=1.902   [data] [plot]

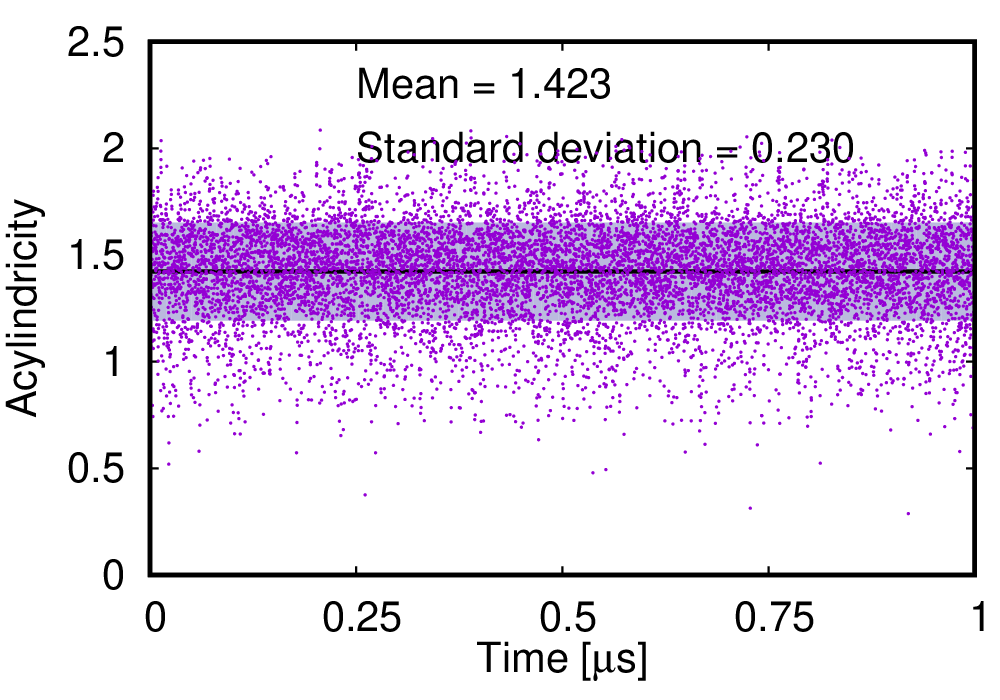

Acylindricity	mean=1.423   [data] [plot]

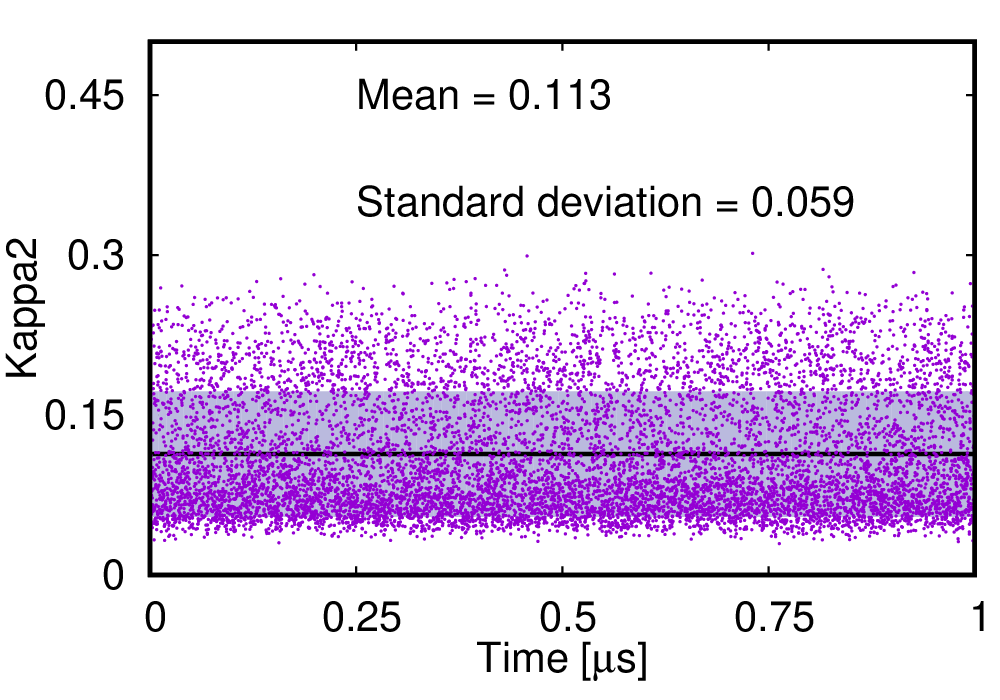

Kappa2	mean=0.113   [data] [plot]

External links

[wiki] [pubchem] [chemspider]

---
