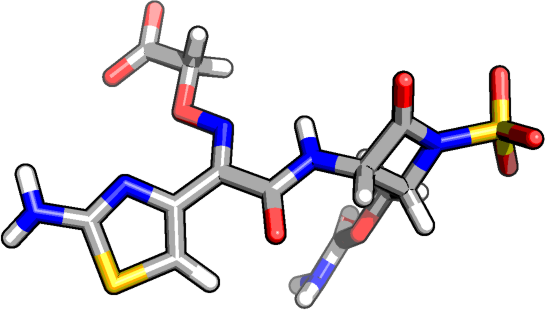

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

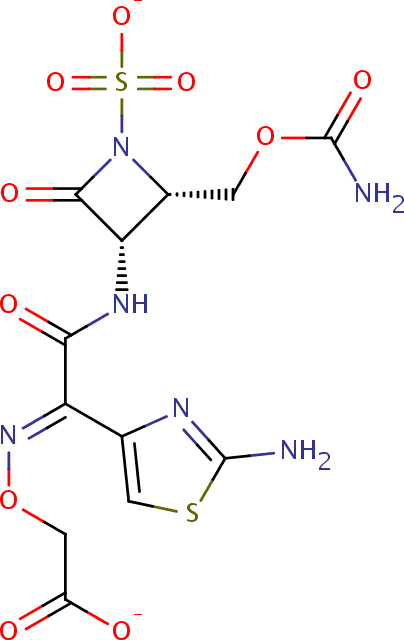

Molecular Formula | C12H12N6O10S2 |
Molecular Weight (Da) | 464.38788 |
# Atoms, heavy atoms, rotatable bonds | 42     30     9 |
# H-bond donors / acceptors | 3     12 |
Physiological charge | -2 |

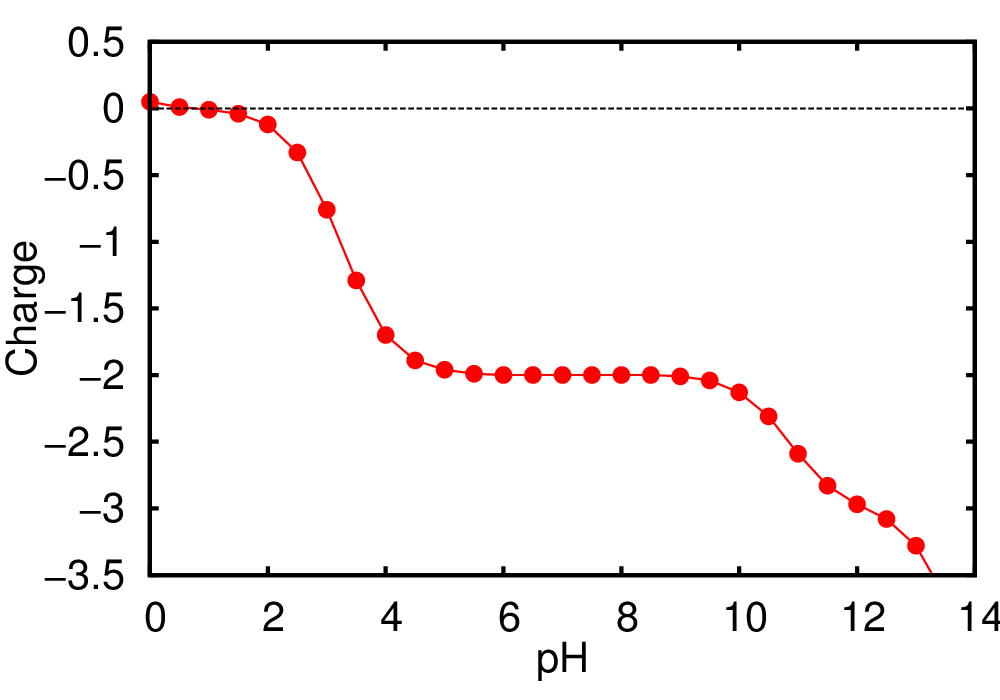

Isoelectric point | 0.82 [data] [plot] |
Van der Waals volume (Å3) | 337.21 |
logP (XLOGP3 CHEMAXON ALOGPS) | -1.36 [data]   -3.88     -0.05 |
logS (CHEMAXON ALOGPS) | -3.75   -3.11 |

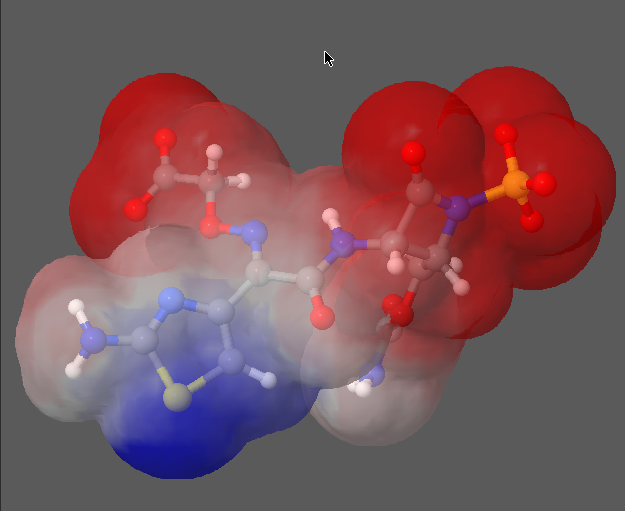

Molecular surface (Å2) | pol=295.15   nonpol=67.33   tot=362.48   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.47     -1.54     3.93 |

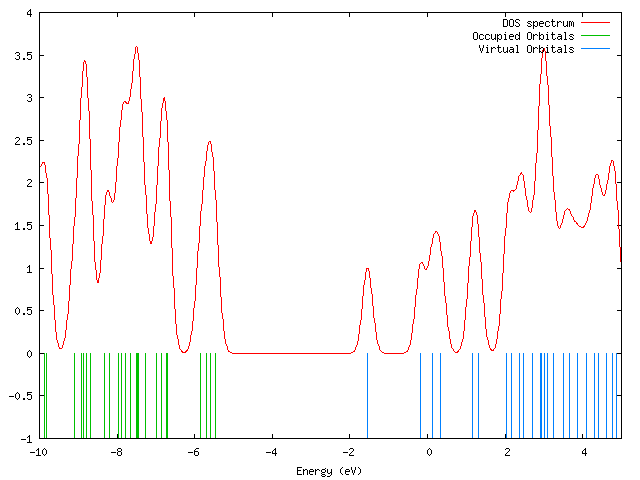

Orbital data | [data] [plot] |

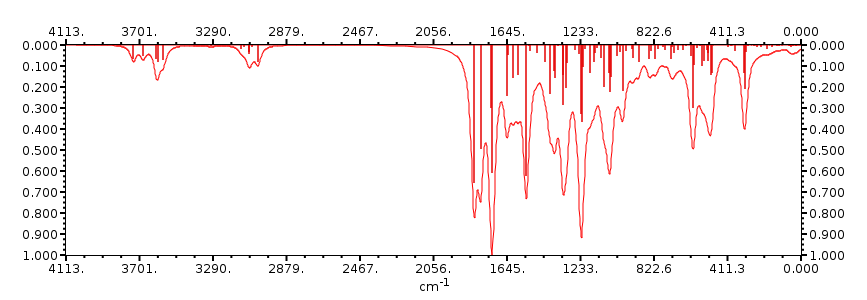

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.18477   B=0.06535   C=0.05980 |

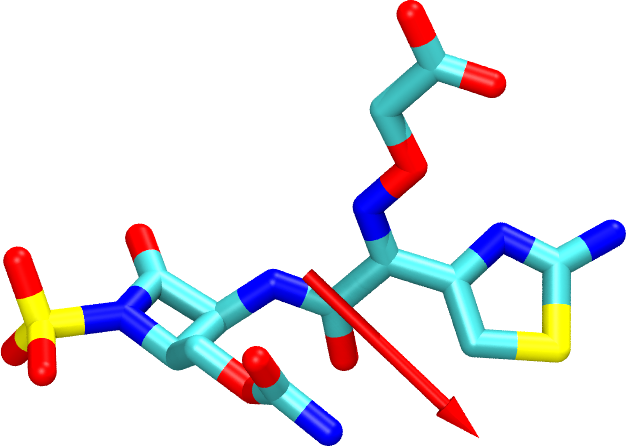

Dipole in vacuum (Debye) | 21.45     [fig] |
COMPUTED MD PROPERTIES |
|

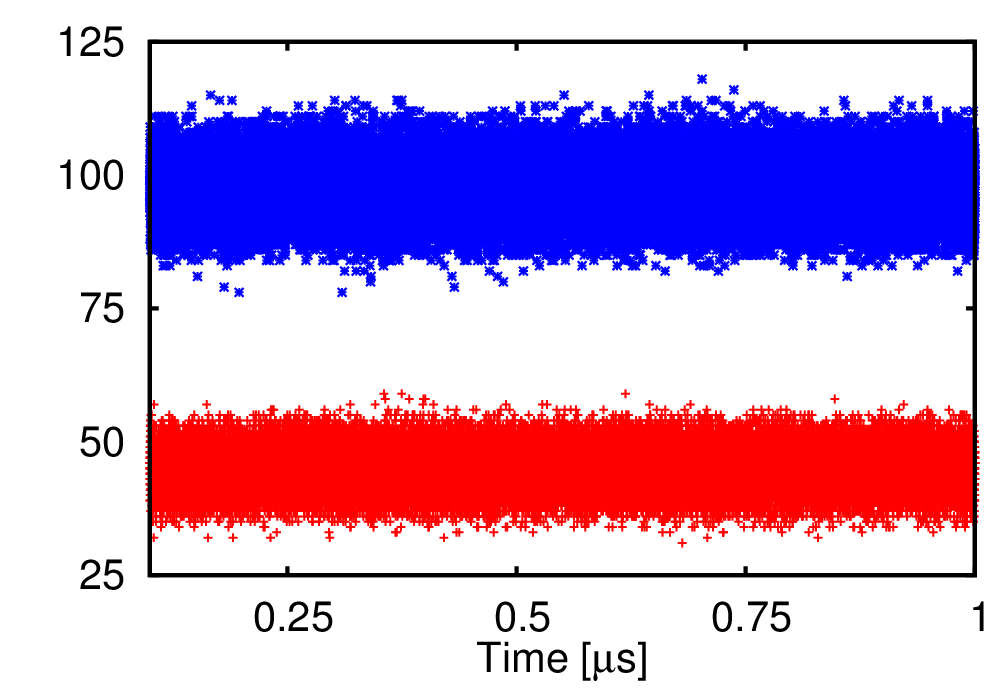

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

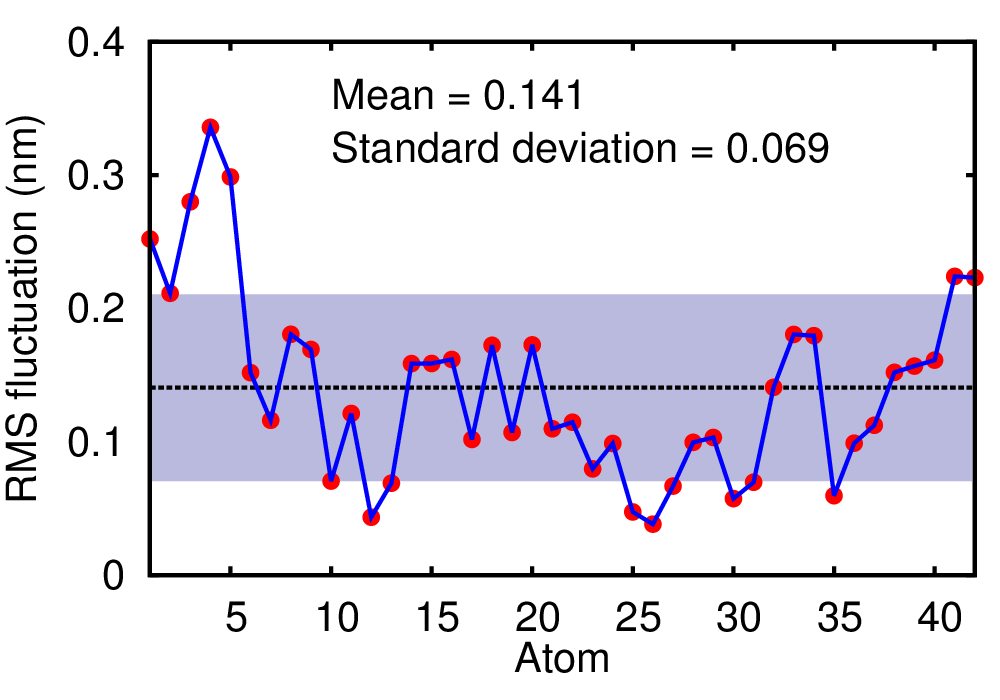

Root mean square fluctuation (nm) | mean=0.141   [data] [plot] |

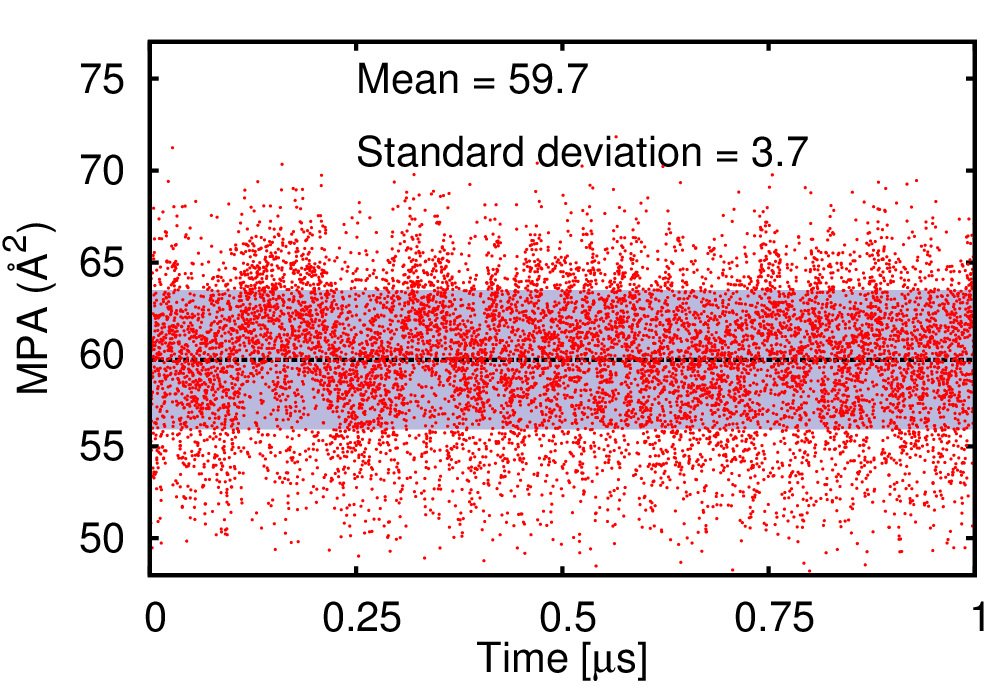

Minimal projection area (Å2) | mean=59.70   [data] [plot] |

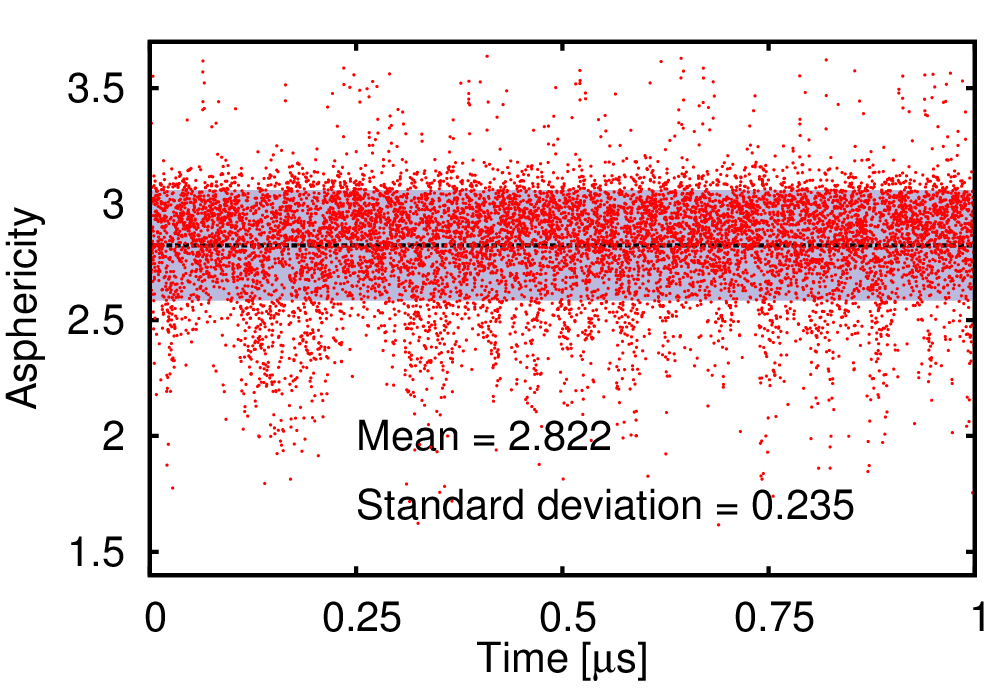

Asphericity | mean=2.822   [data] [plot] |

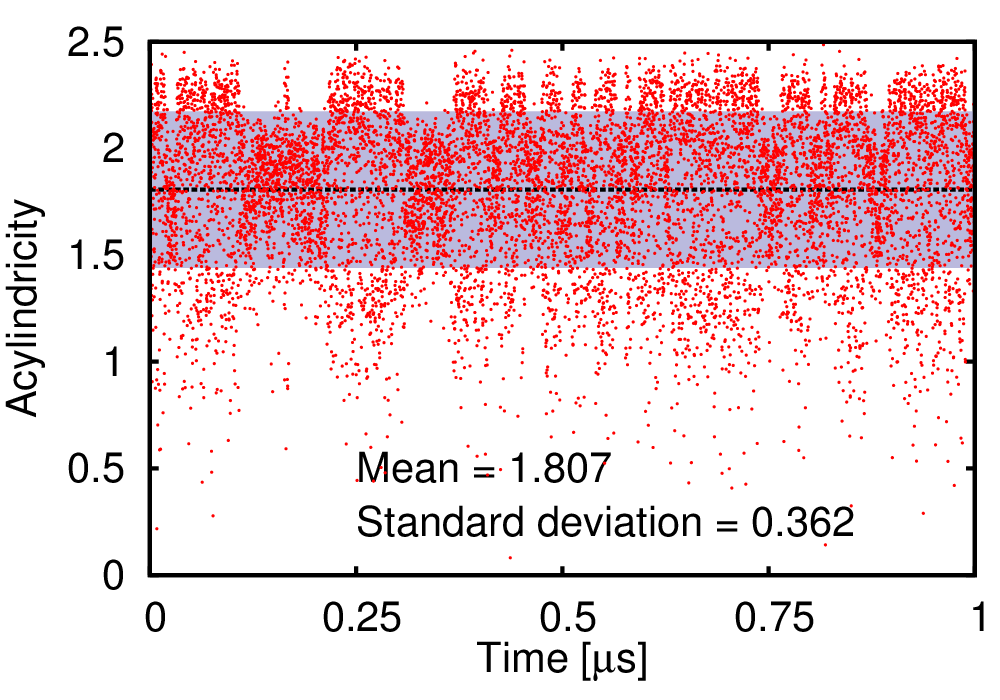

Acylindricity | mean=1.807   [data] [plot] |

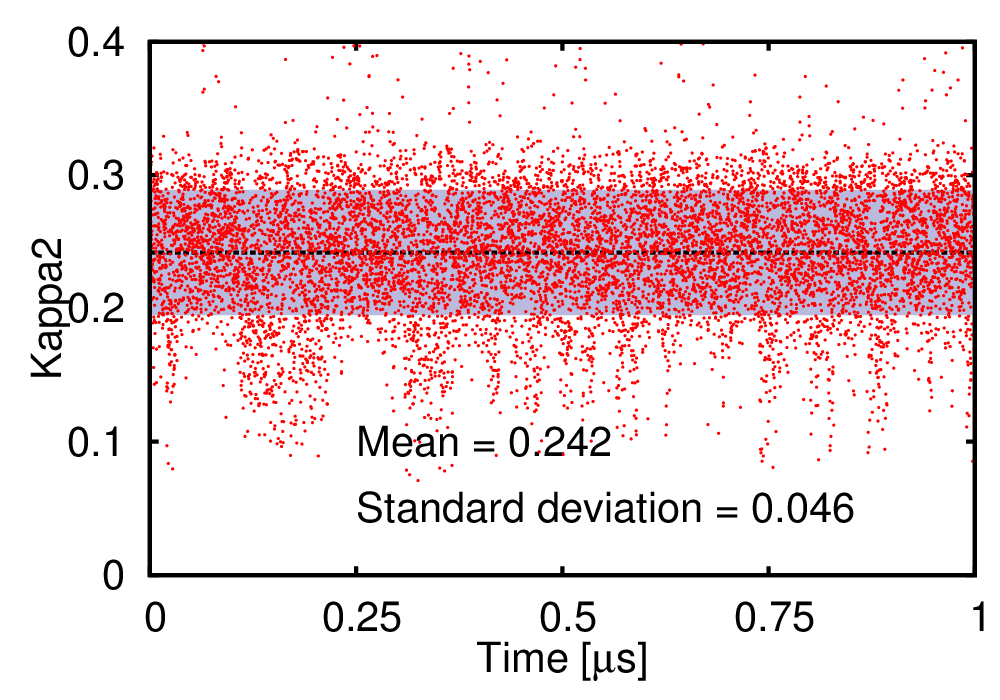

Kappa2 | mean=0.242   [data] [plot] |
External links |
[wiki]
[pubchem] [chemspider] |
