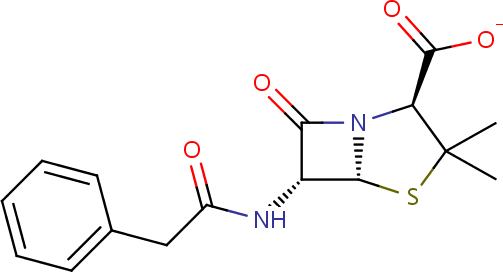

Benzylpenicillin

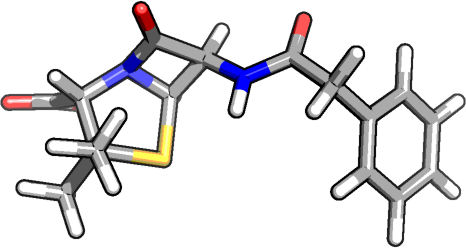

CLICK IMAGE TO ACTIVATE 3D

FORCE-FIELD PARAMETERS
GAFF files	[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf]

GENERAL PROPERTIES
Molecular Formula	C16H17N2O4S
Molecular Weight (Da)	333.38218
# Atoms, heavy atoms, rotatable bonds	40     23     4
# H-bond donors / acceptors	1     4
Physiological charge	-1

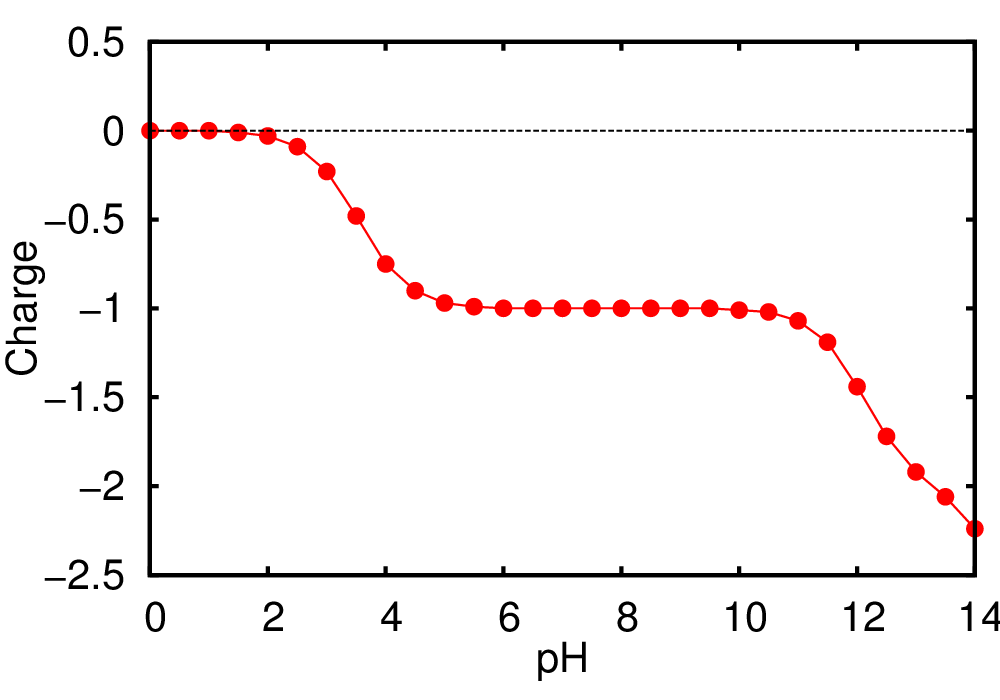

Isoelectric point	0.39 [data] [plot]
Van der Waals volume (Å3)	287.31
logP (XLOGP3 CHEMAXON ALOGPS)	1.95 [data]   1.08   1.57
logS (CHEMAXON ALOGPS)	-5.05   -3.02

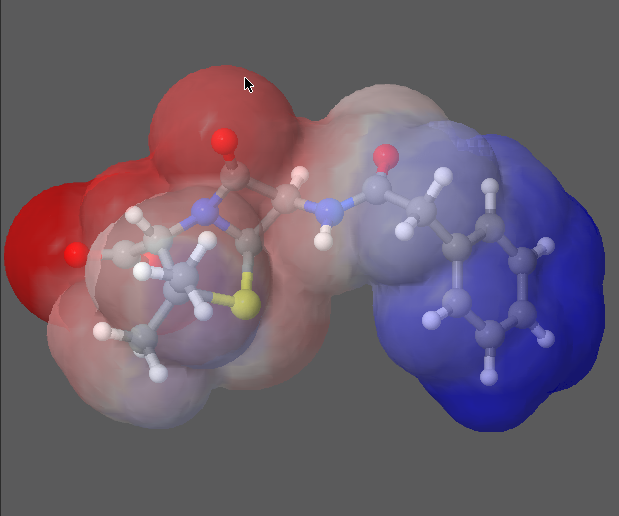

Molecular surface (Å2)	pol=140.25   nonpol=141.60   tot=281.85   [fig]
COMPUTED QM PROPERTIES
Optimized geometry	[xyz] [sdf]
HOMO, LUMO, GAP (eV)	-5.47     -0.27     5.20

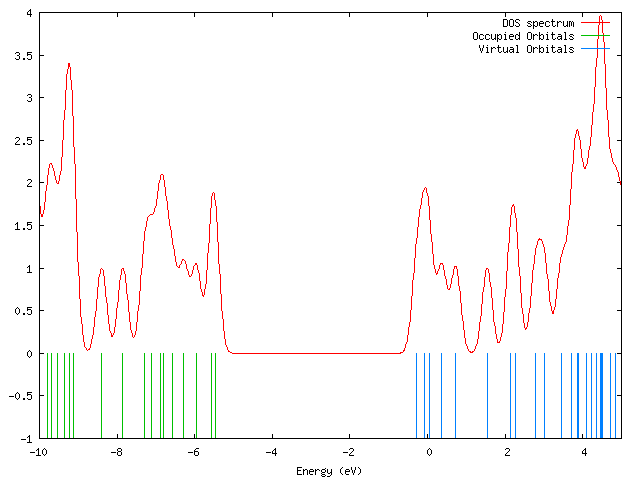

Orbital data	[data] [plot]

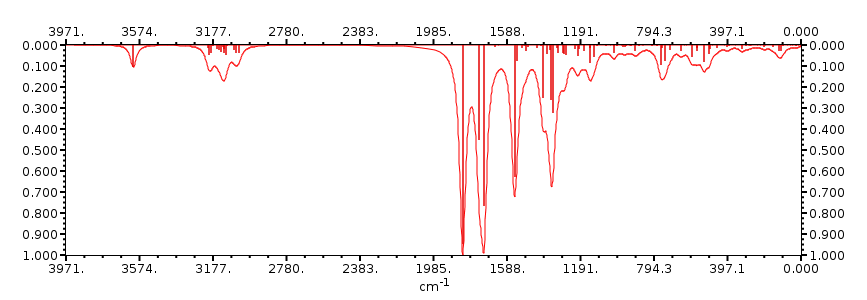

Vibrational properties	[data] [plot]
Rotational constants (GHz)	A=0.51292   B=0.11356   C=0.10575

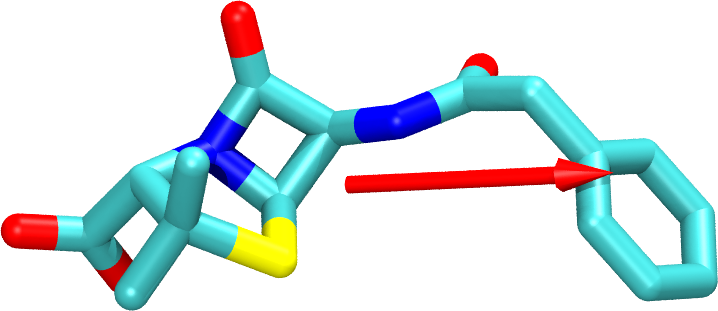

Dipole in vacuum (Debye)	17.53     [fig]
COMPUTED MD PROPERTIES

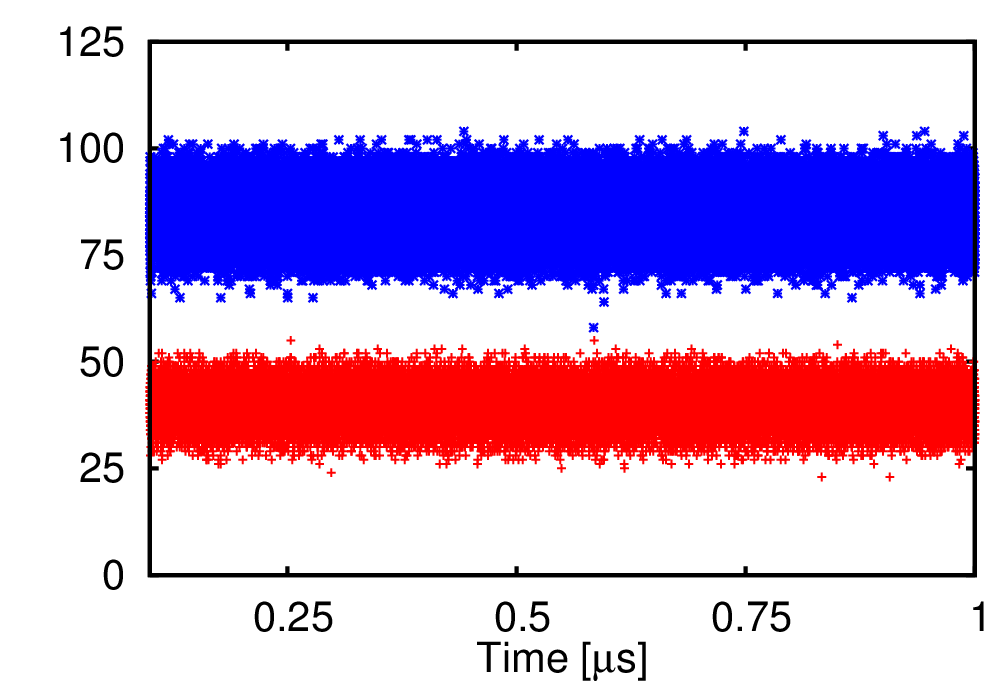

First and second water shells	[data] [plot]
Intramolecular / water H-bonds	[data] [data]
Cluster analysis	[txt] [pdb] [tgz]

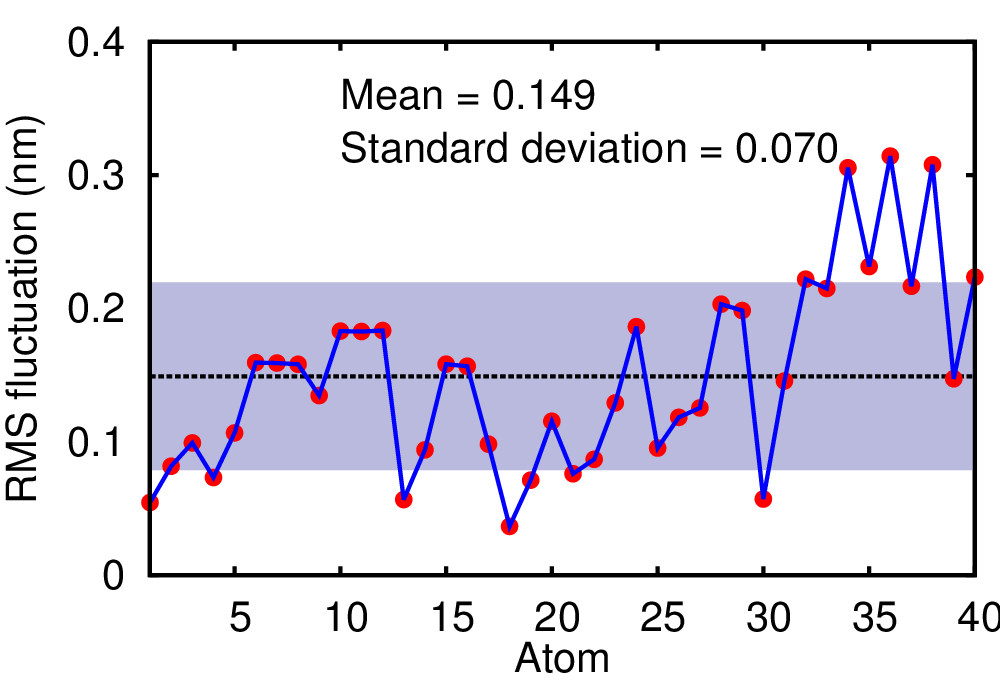

Root mean square fluctuation (nm)	mean=0.149   [data] [plot]

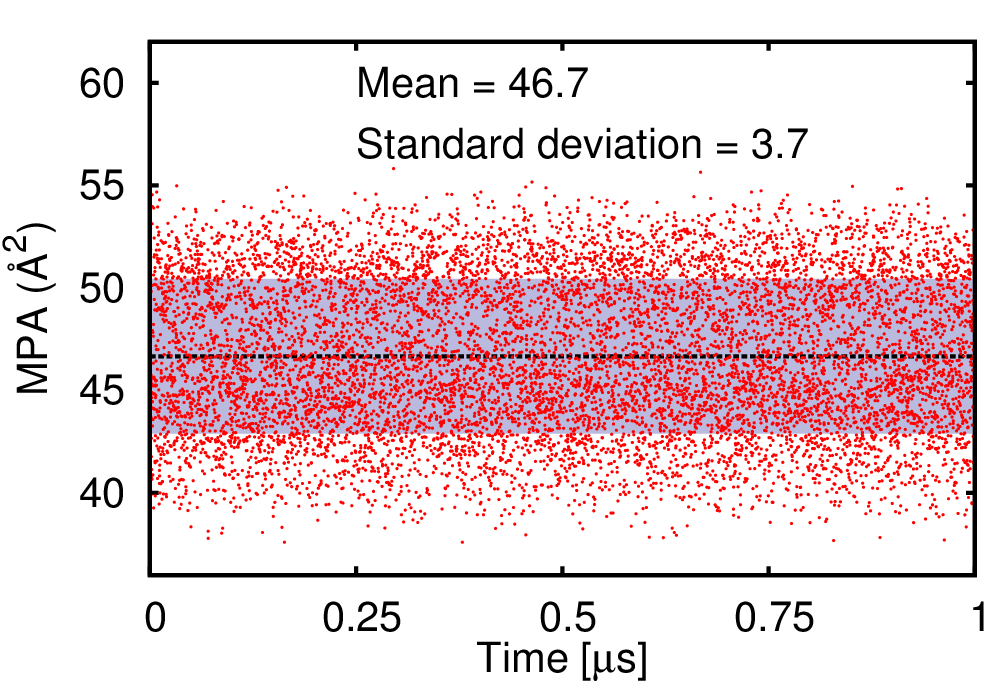

Minimal projection area (Å2)	mean=46.67   [data] [plot]

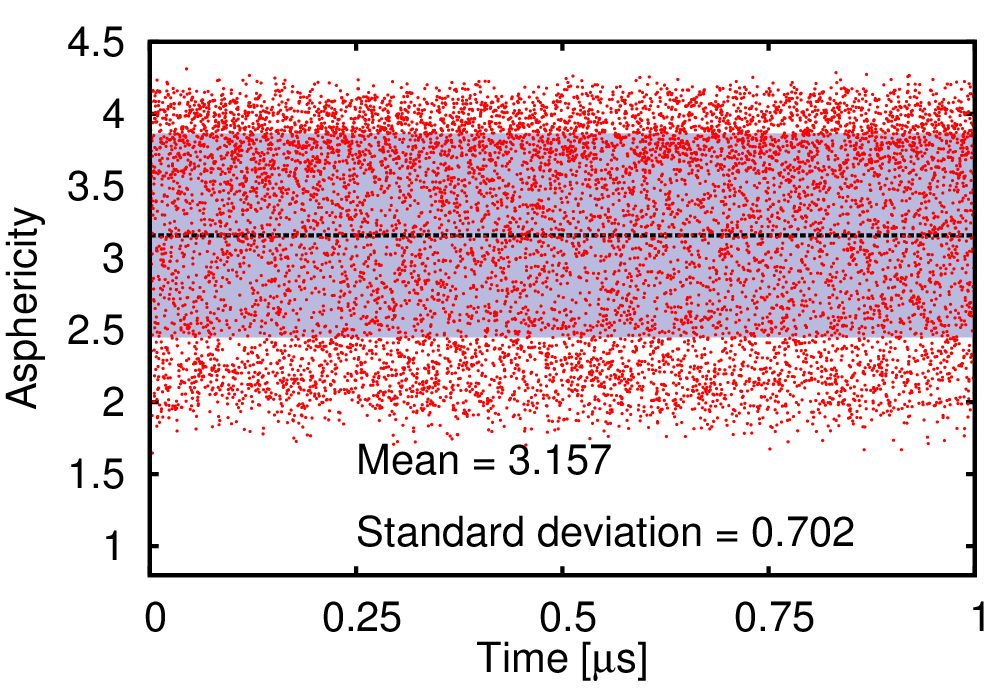

Asphericity	mean=3.157   [data] [plot]

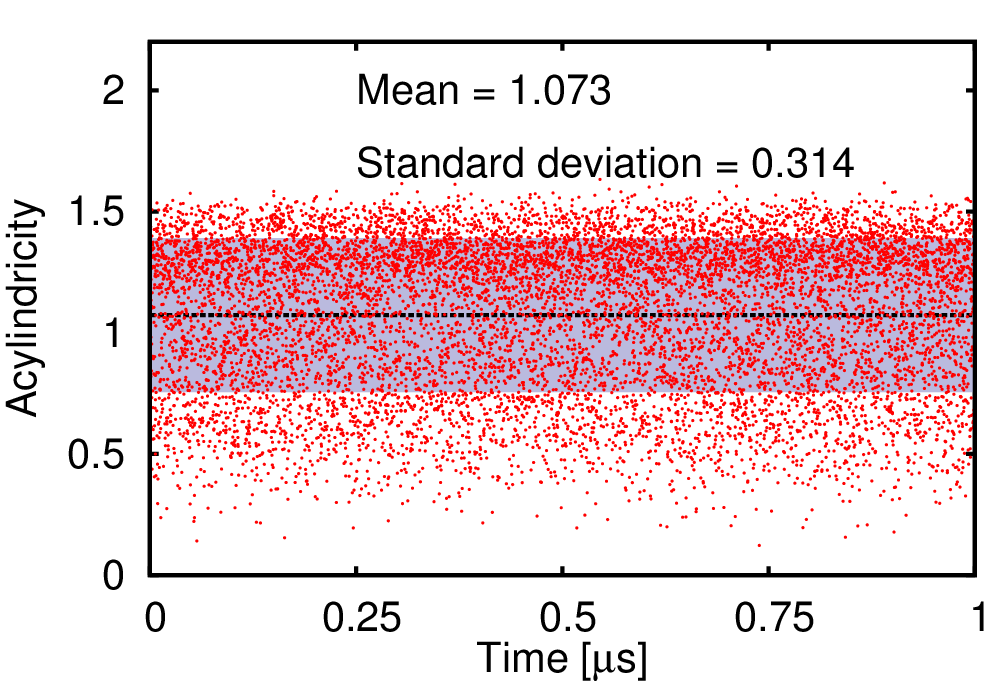

Acylindricity	mean=1.073   [data] [plot]

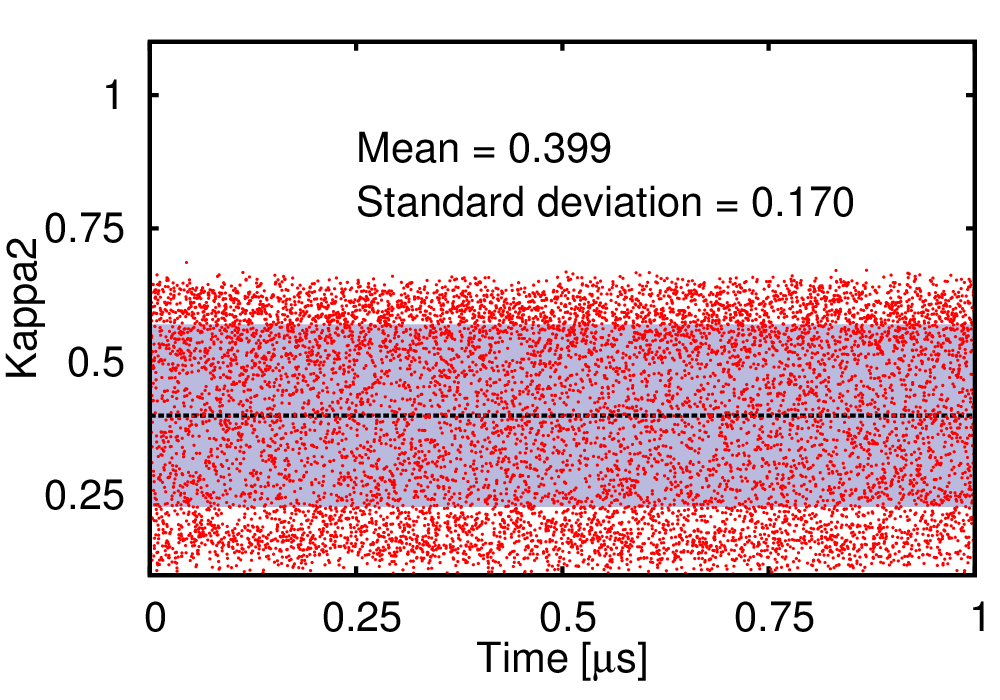

Kappa2	mean=0.399   [data] [plot]

External links

[wiki] [pubchem] [chemspider]

---

Maintained by G. Malloci

Last modified: 30/07/2015
