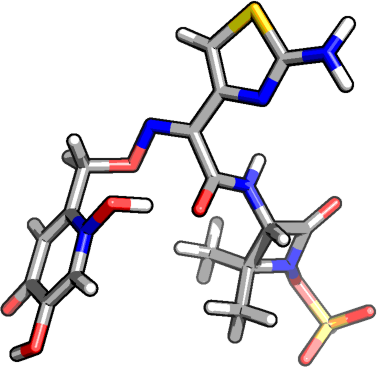

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

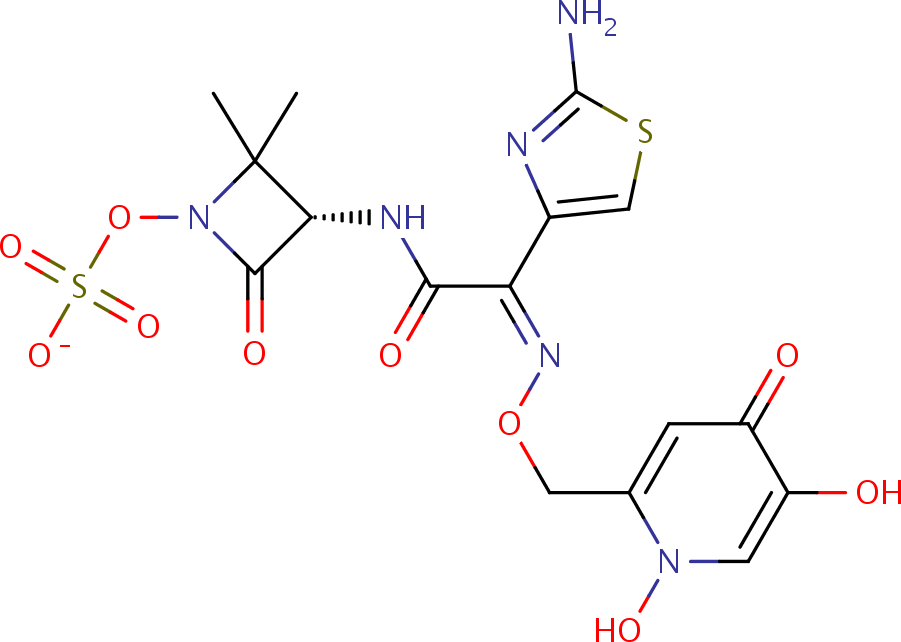

Molecular Formula | C16H17N6O10S2 |
Molecular Weight (Da) | 517.47038 |
# Atoms, heavy atoms, rotatable bonds | 51     34     8 |
# H-bond donors / acceptors | 4     13 |
Physiological charge | -1 |

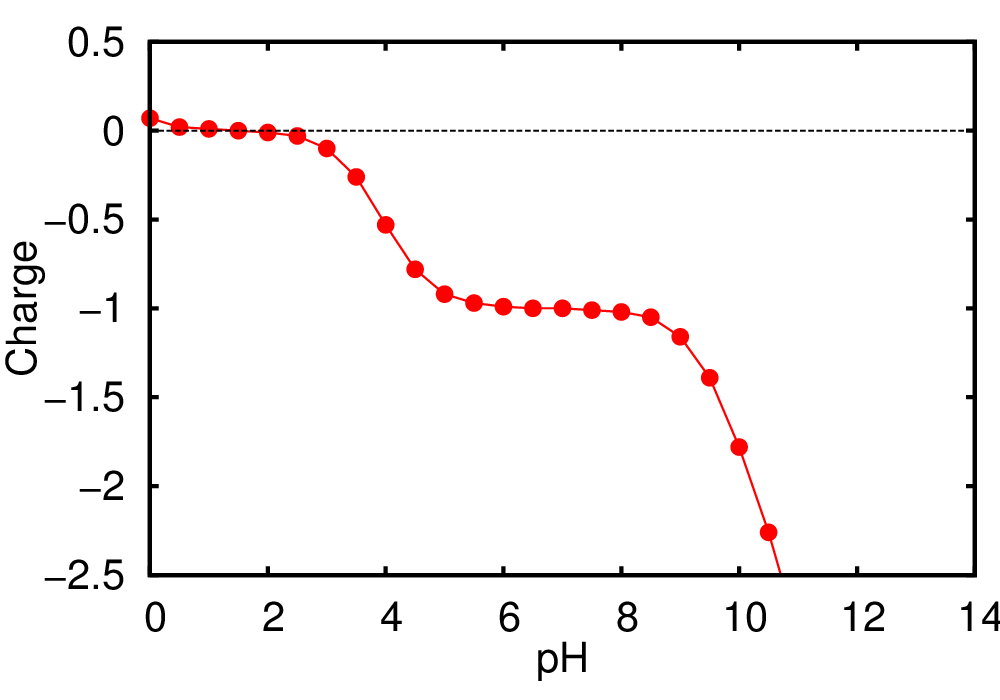

Isoelectric point | 1.41 [data] [plot] |
Van der Waals volume (Å3) | 390.94 |
logP (XLOGP3 CHEMAXON ALOGPS) | 0.49 [data]   -2.60   0.13 |
logS (CHEMAXON ALOGPS) | -3.31   -3.13 |

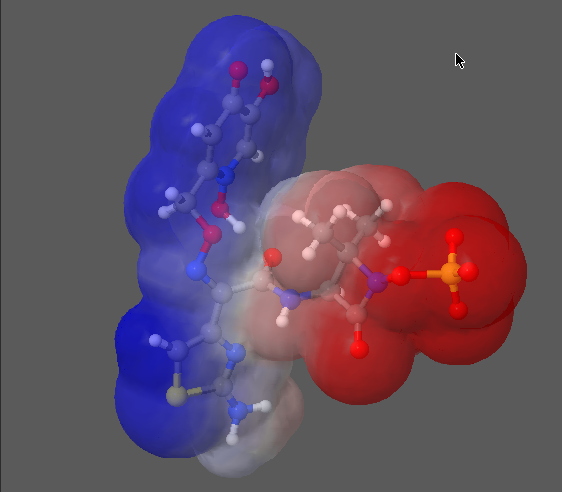

Molecular surface (Å2) | pol=187.85   nonpol=194.90   tot=382.75   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.71     -1.80     3.91 |

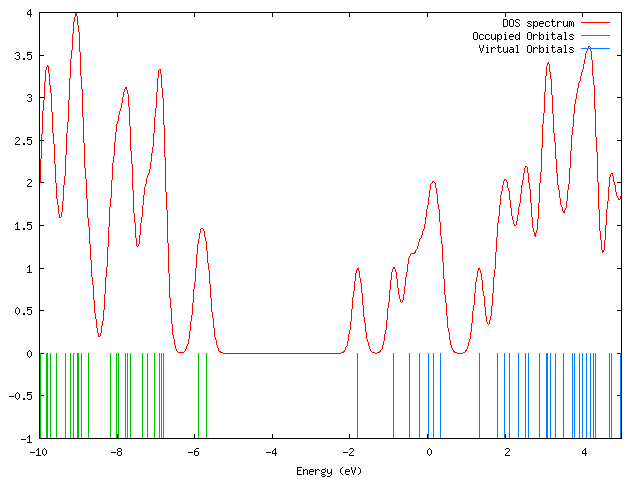

Orbital data | [data] [plot] |

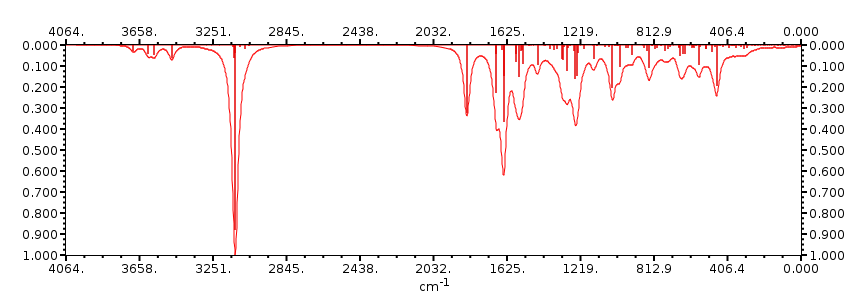

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.09267   B=0.07767   C=0.04593 |

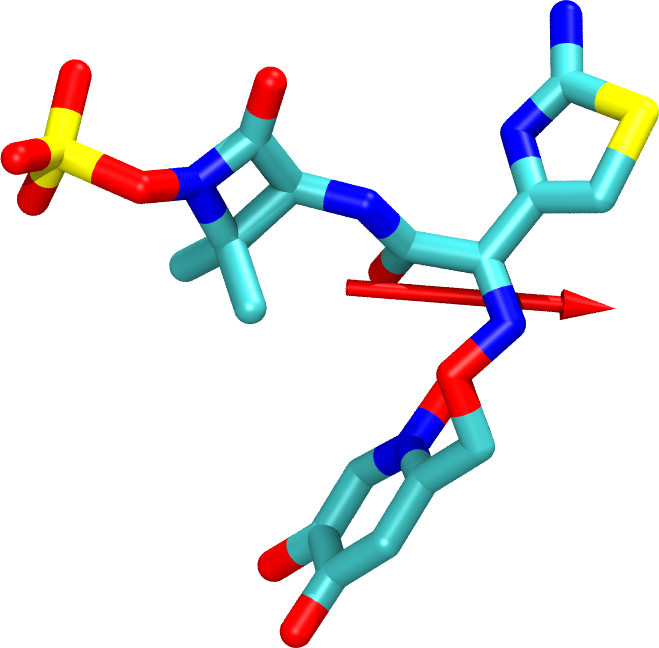

Dipole in vacuum (Debye) | 25.24     [fig] |
COMPUTED MD PROPERTIES |
|

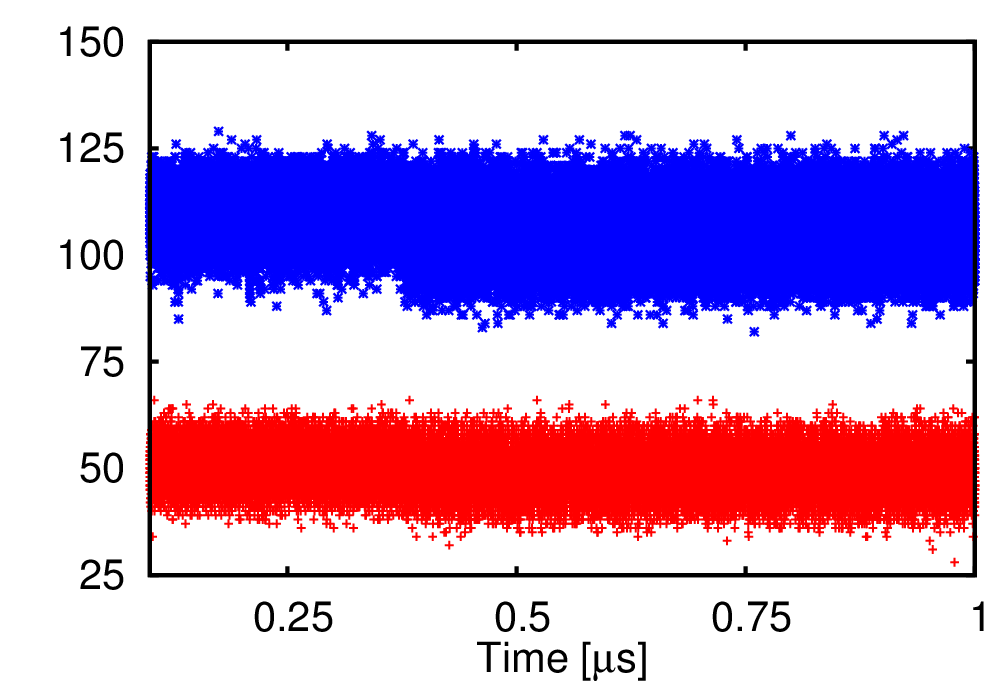

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

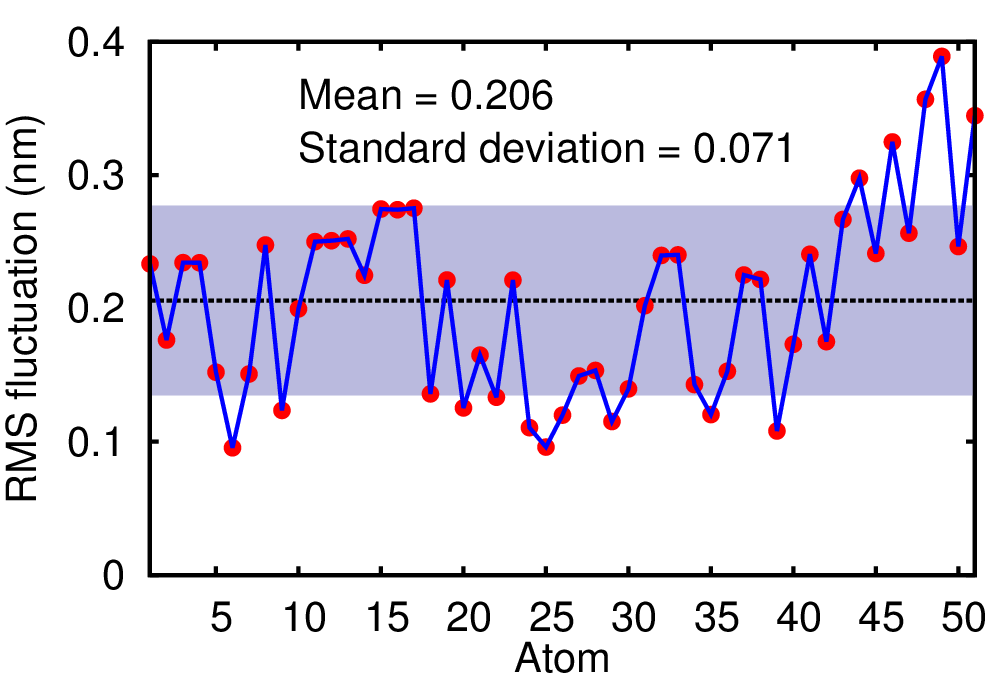

Root mean square fluctuation (nm) | mean=0.206   [data] [plot] |

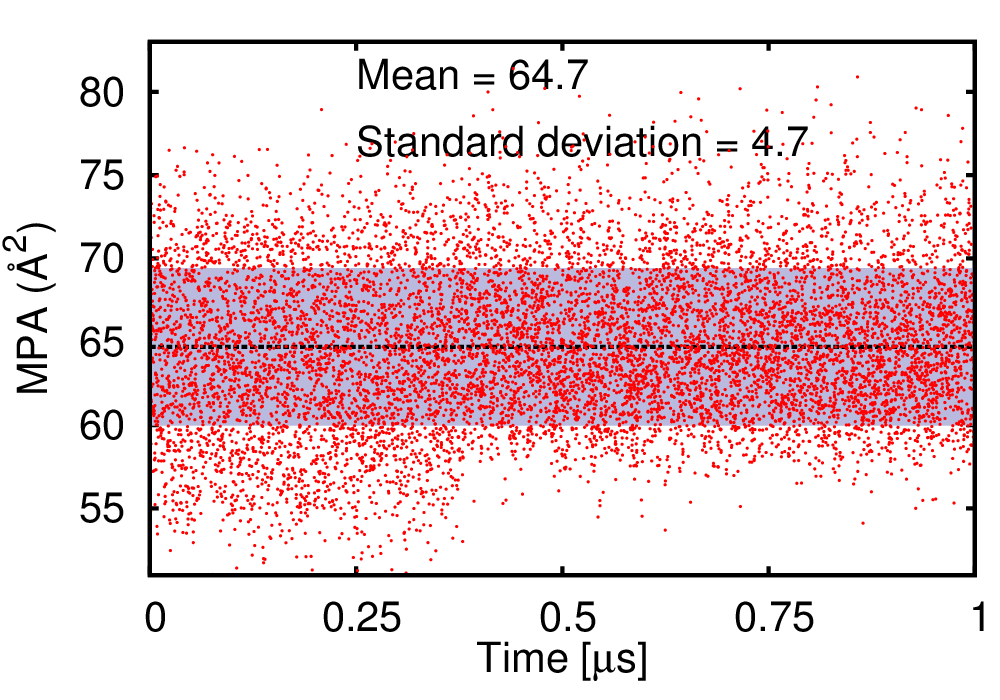

Minimal projection area (Å2) | mean=64.70   [data] [plot] |

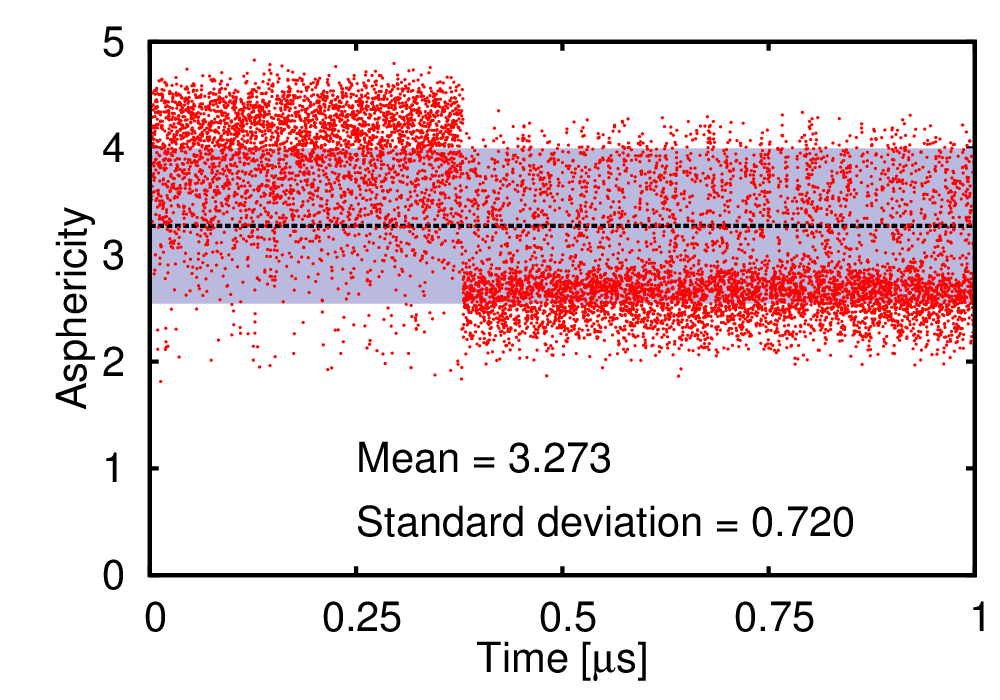

Asphericity | mean=3.273   [data] [plot] |

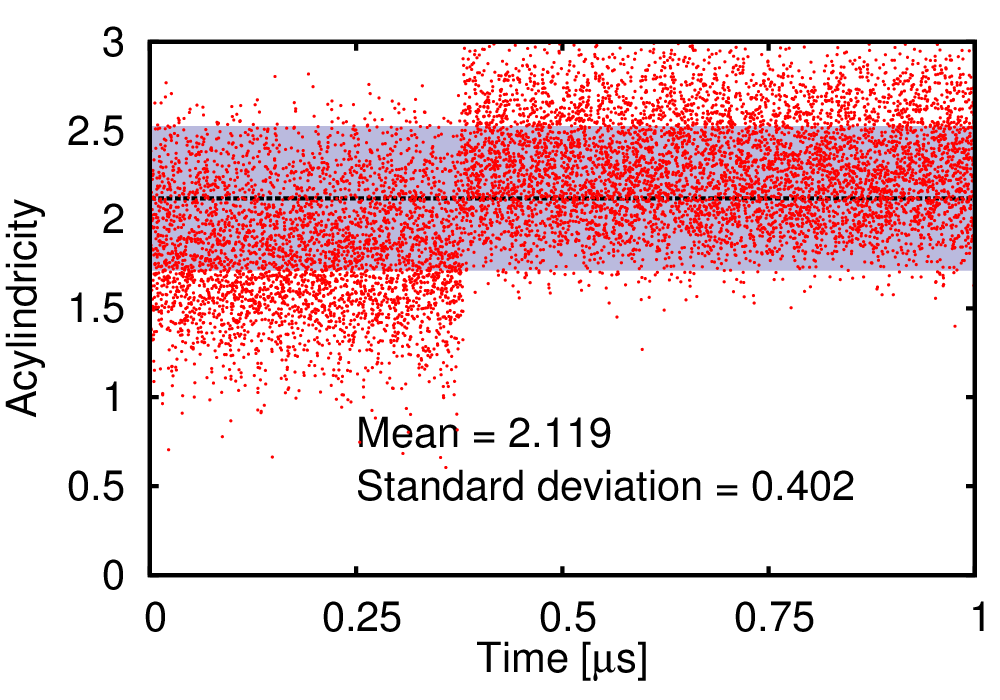

Acylindricity | mean=2.119   [data] [plot] |

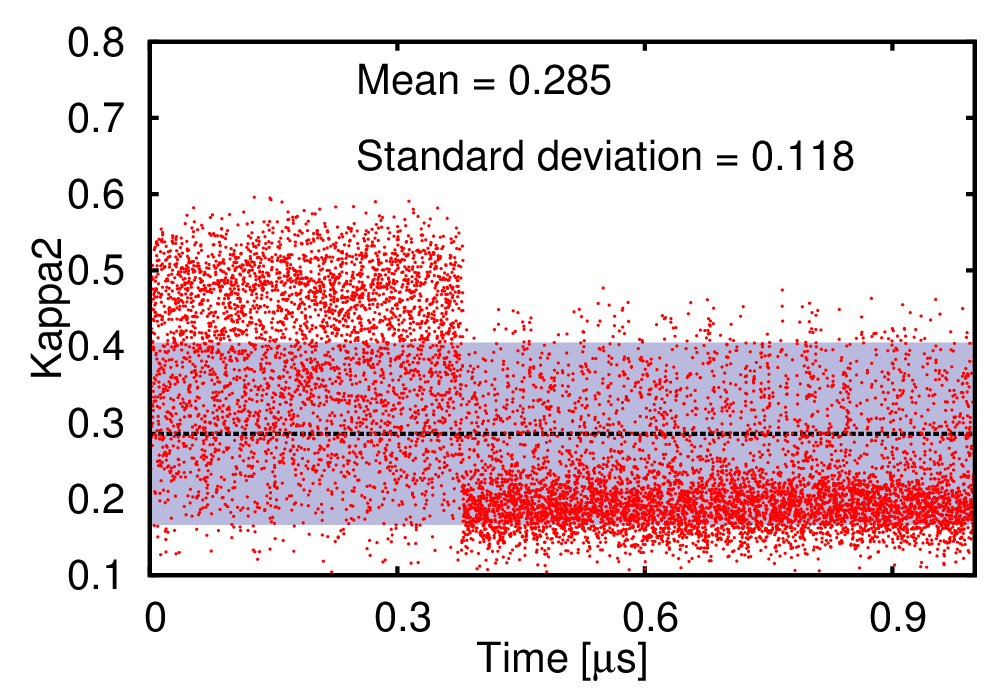

Kappa2 | mean=0.285   [data] [plot] |
External links |
[Basilea
Pharmaceutica]
[pubchem] |
