Aztreonam

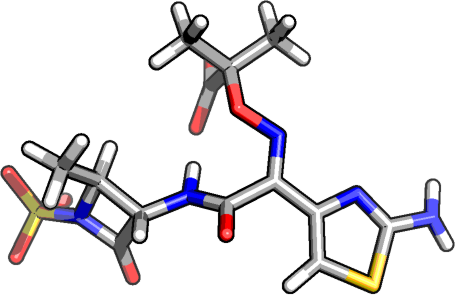

CLICK IMAGE TO ACTIVATE 3D

FORCE-FIELD PARAMETERS
GAFF files	[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf]

GENERAL PROPERTIES

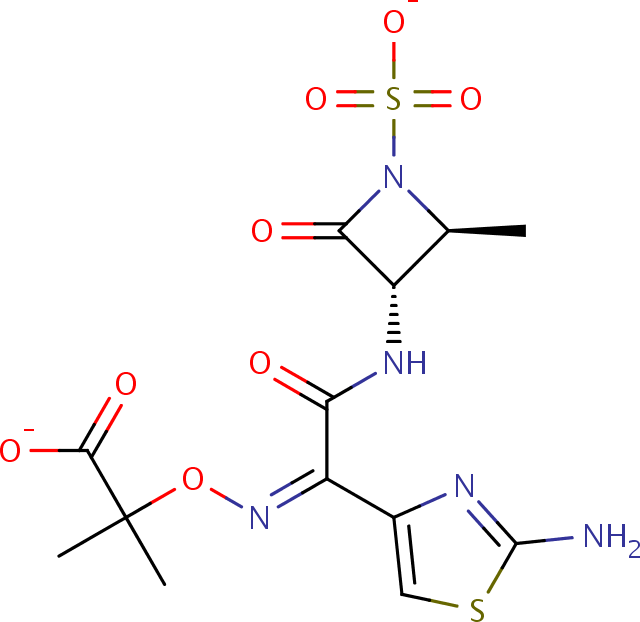

Molecular Formula	C13H15N5O8S2
Molecular Weight (Da)	433.41690
# Atoms, heavy atoms, rotatable bonds	43     28     6
# H-bond donors / acceptors	2     11
Physiological charge	-2

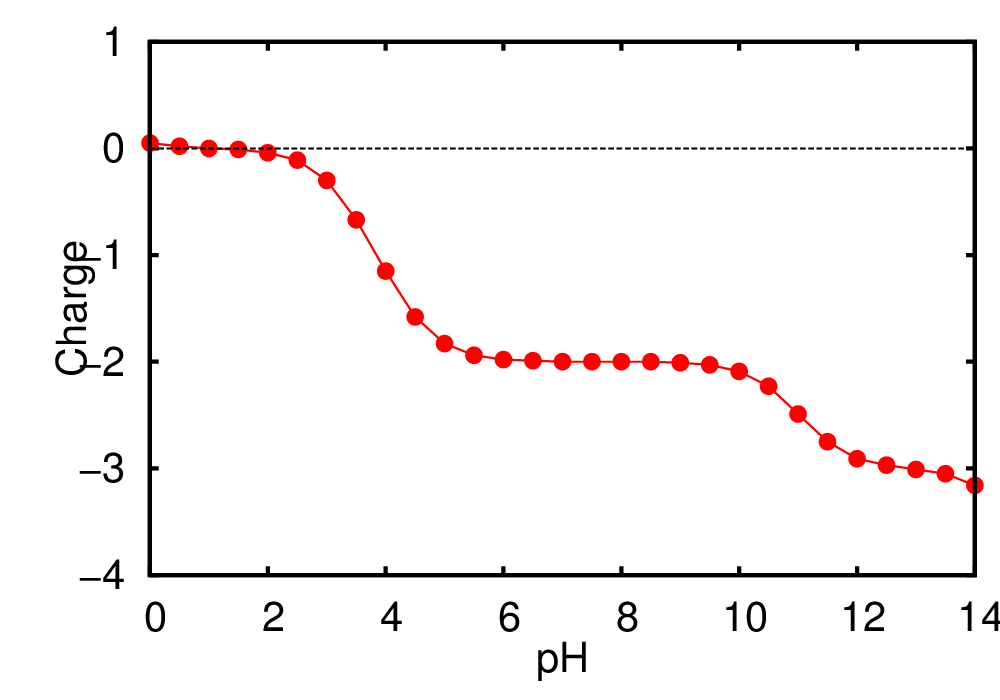

Isoelectric point	1.07 [data] [plot]
Van der Waals volume (Å3)	331.56
logP (XLOGP3 CHEMAXON ALOGPS)	0.28 [data]   -1.92   1.05
logS (CHEMAXON ALOGPS)	-4.38   -3.23

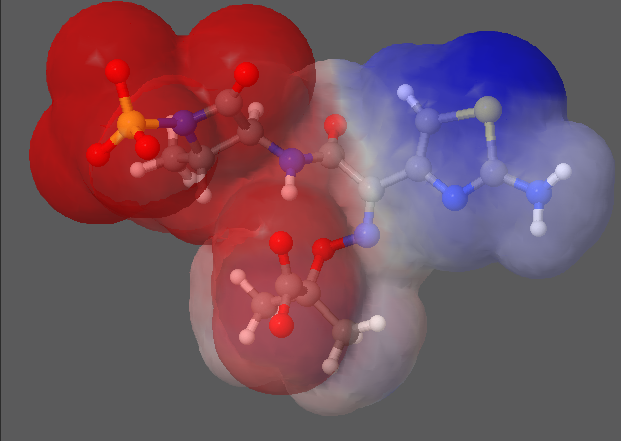

Molecular surface (Å2)	pol=225.97   nonpol=108.00   tot=333.97   [fig]
COMPUTED QM PROPERTIES
Optimized geometry	[xyz] [sdf]
HOMO, LUMO, GAP (eV)	-5.44     -1.16     4.28

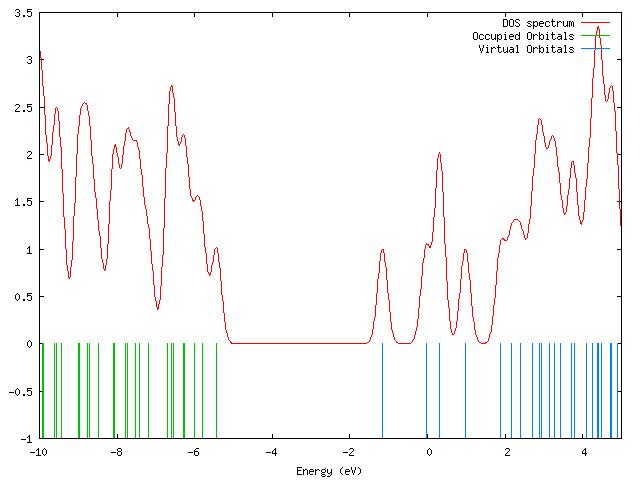

Orbital data	[data] [plot]

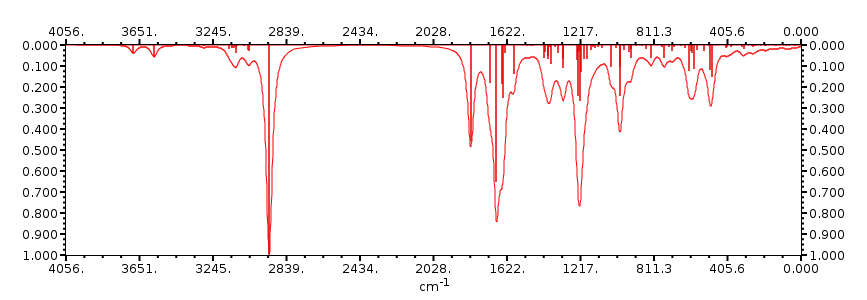

Vibrational properties	[data] [plot]
Rotational constants (GHz)	A=0.22245   B=0.08870   C=0.07297

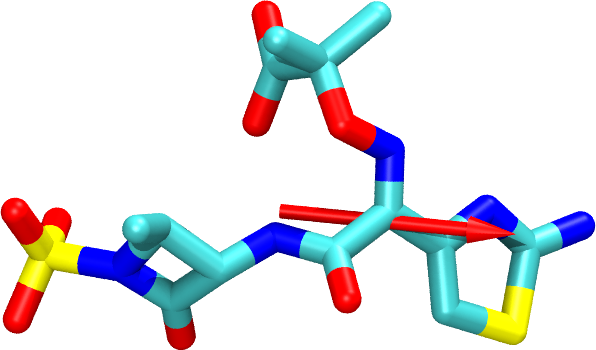

Dipole in vacuum (Debye)	20.93     [fig]
COMPUTED MD PROPERTIES

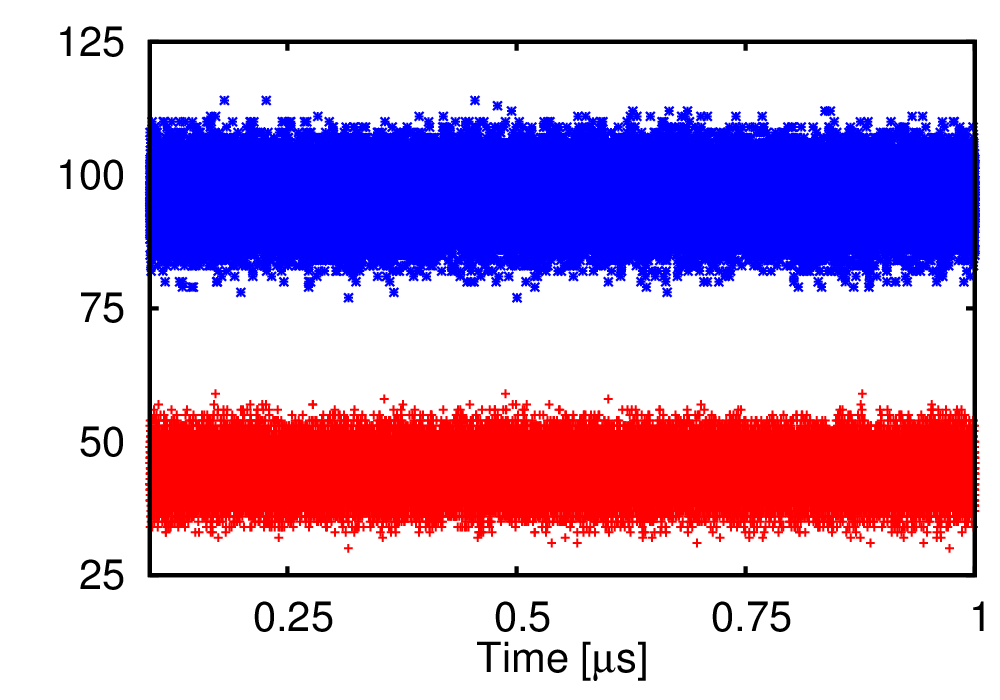

First and second water shells	[data] [plot]
Intramolecular / water H-bonds	[data] [data]
Cluster analysis	[txt] [pdb] [tgz]

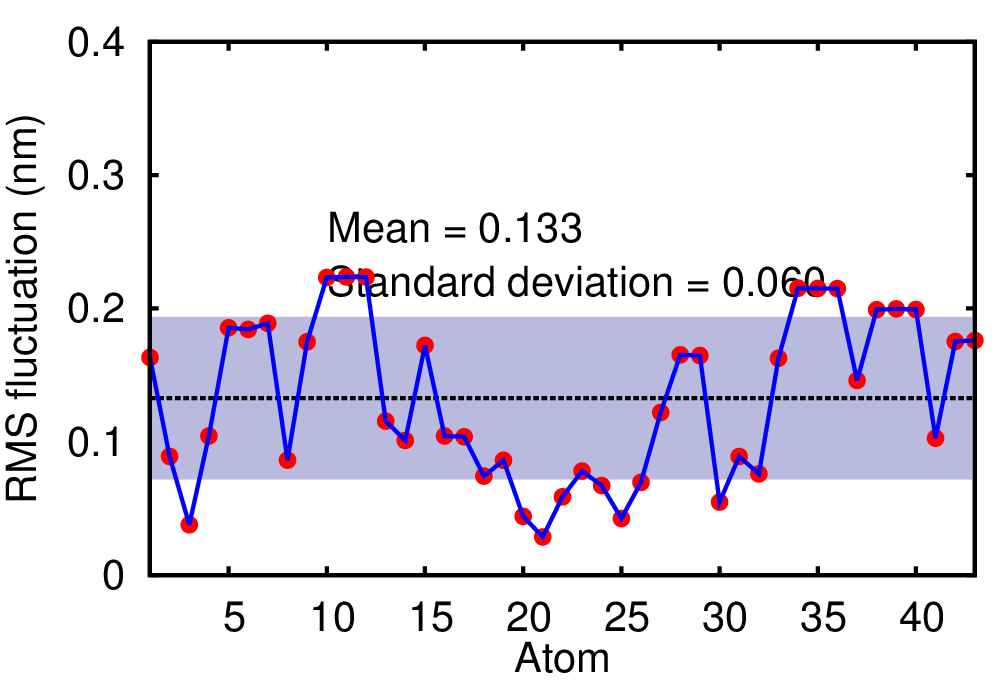

Root mean square fluctuation (nm)	mean=0.133   [data] [plot]

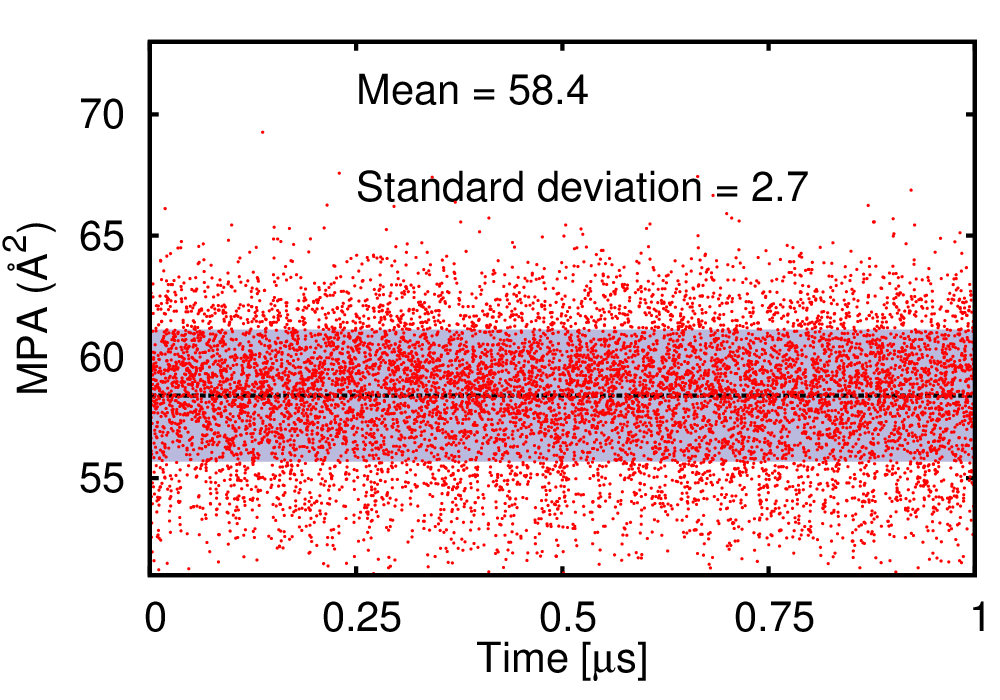

Minimal projection area (Å2)	mean=58.40   [data] [plot]

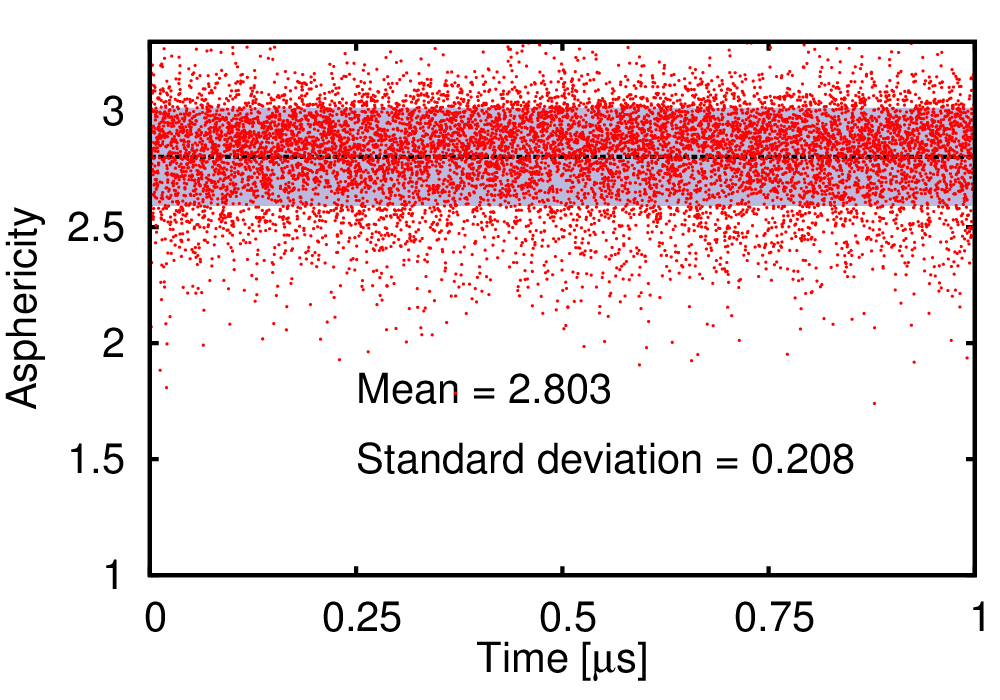

Asphericity	mean=2.803   [data] [plot]

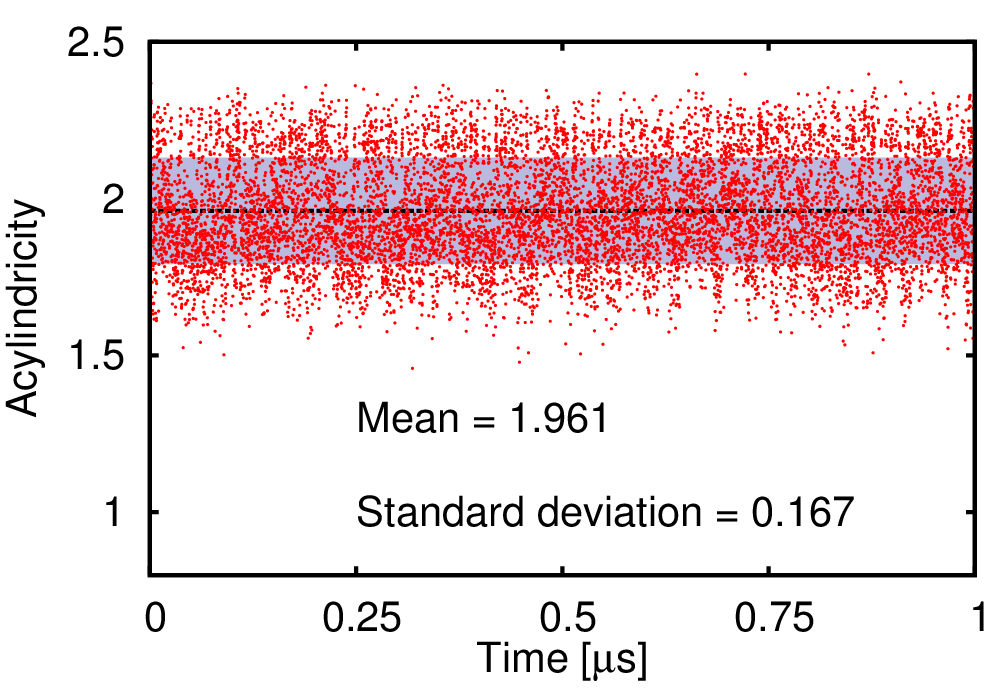

Acylindricity	mean=1.961   [data] [plot]

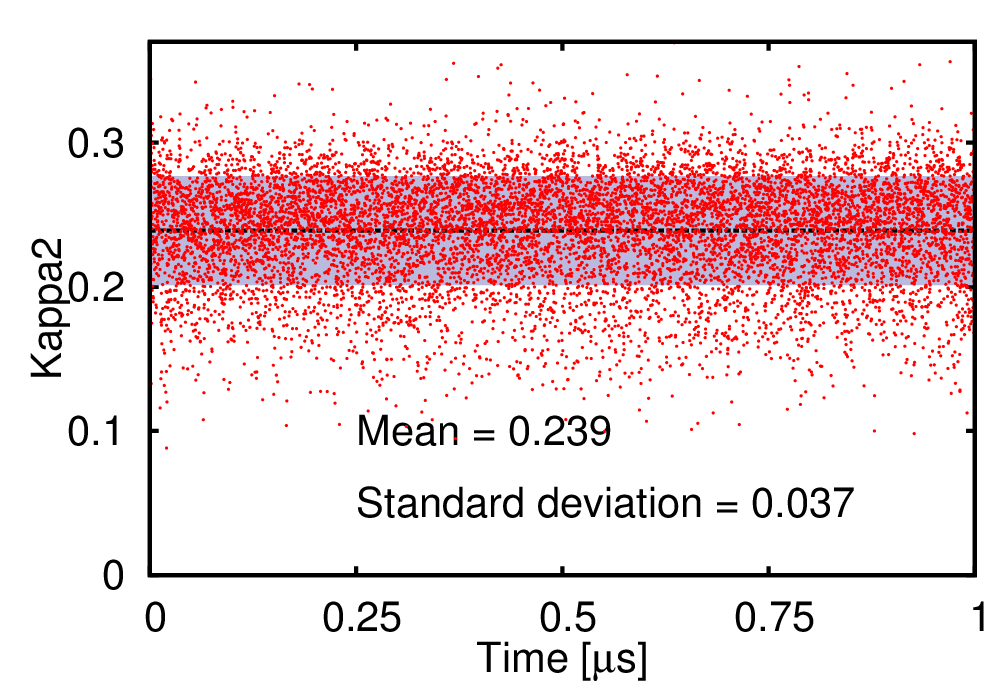

Kappa2	mean=0.239   [data] [plot]

External links

[wiki] [pubchem] [chemspider]

---
