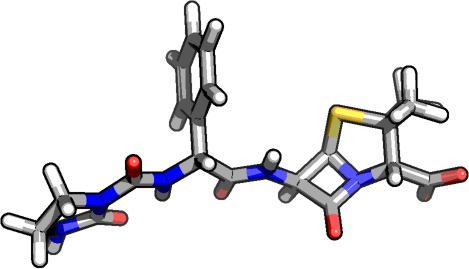

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

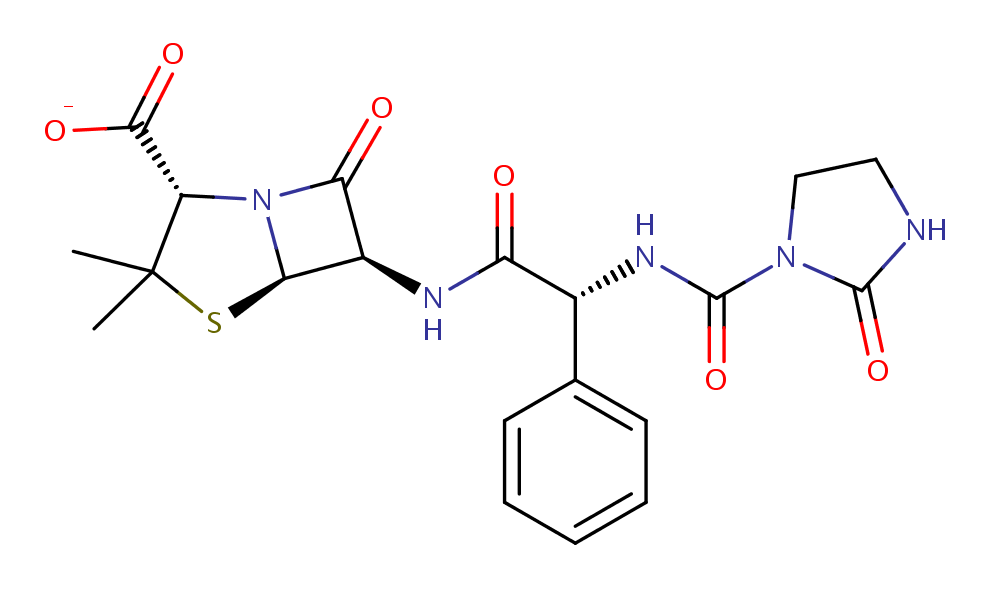

Molecular Formula | C20H22N5O6S |
Molecular Weight (Da) | 460.48358 |
# Atoms, heavy atoms, rotatable bonds | 54     32     5 |
# H-bond donors / acceptors | 3     6 |
Physiological charge | -1 |

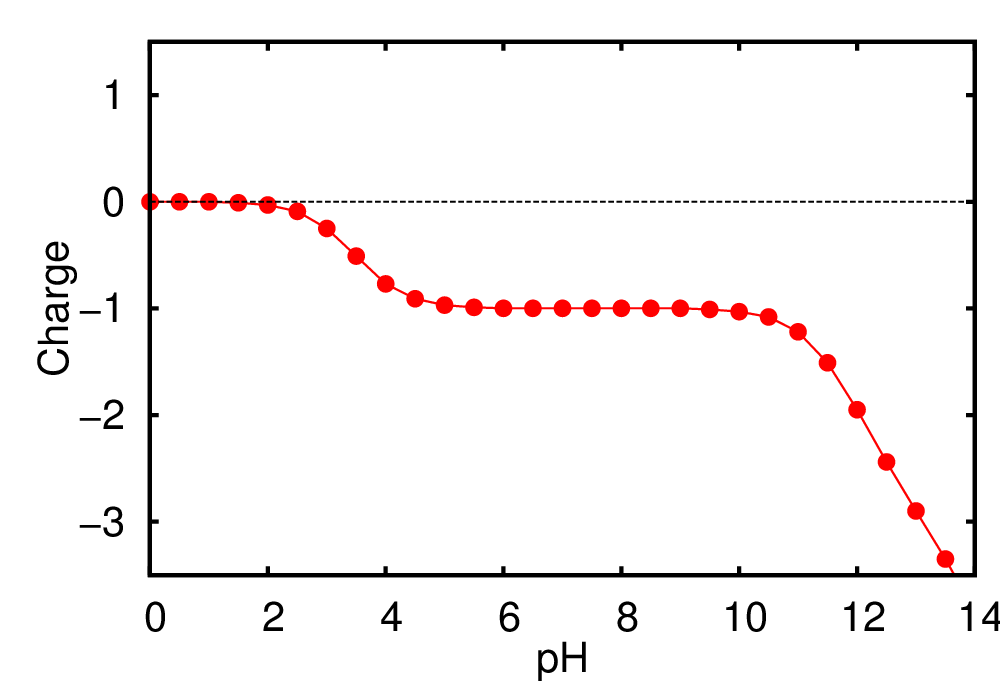

Isoelectric point | undefined [data] [plot] |
Van der Waals volume (Å3) | 384.63 |
logP (XLOGP3 CHEMAXON ALOGPS) | 1.35 [data]   -0.33   0.77 |
logS (CHEMAXON ALOGPS) | -6.03   -2.50 |

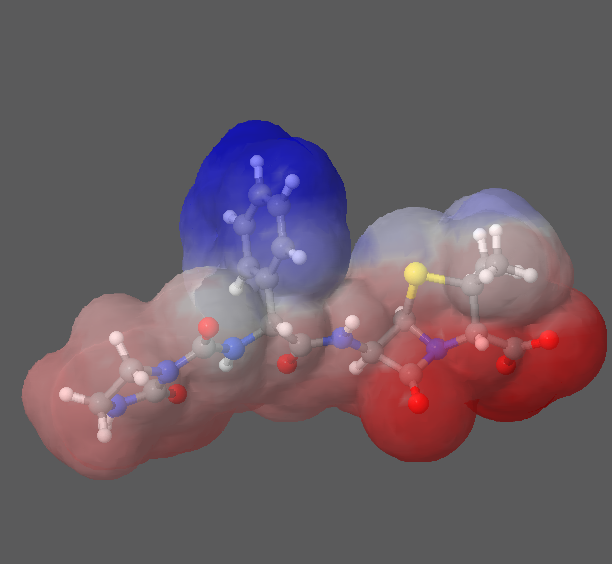

Molecular surface (Å2) | pol=255.64   nonpol=124.60   tot=380.24   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.49     -0.48     5.01 |

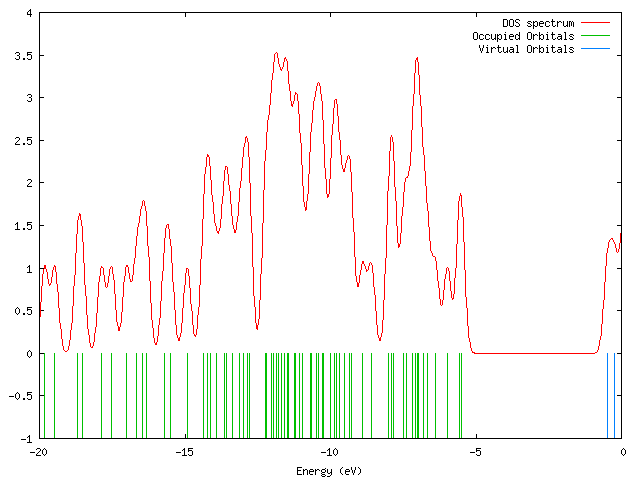

Orbital data | [data] [plot] |

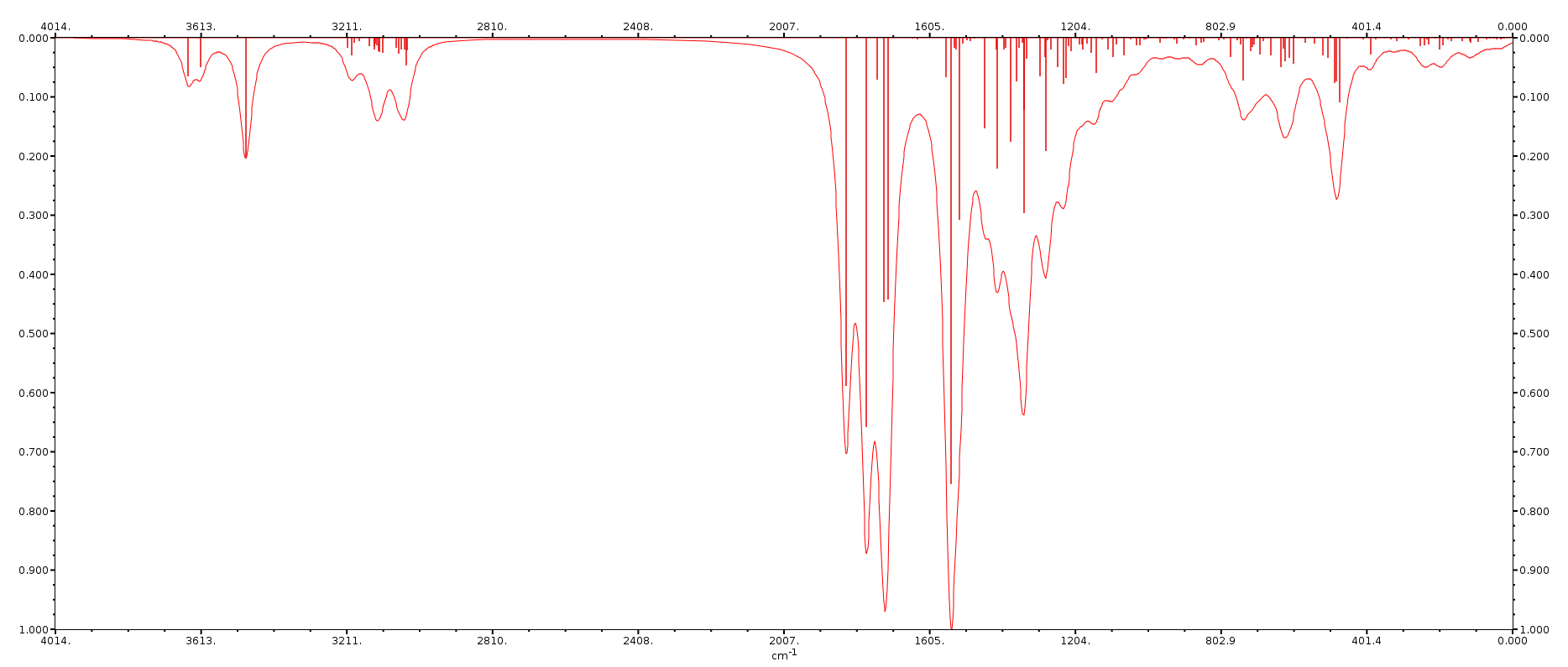

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.26419   B=0.05626   C=0.05034 |

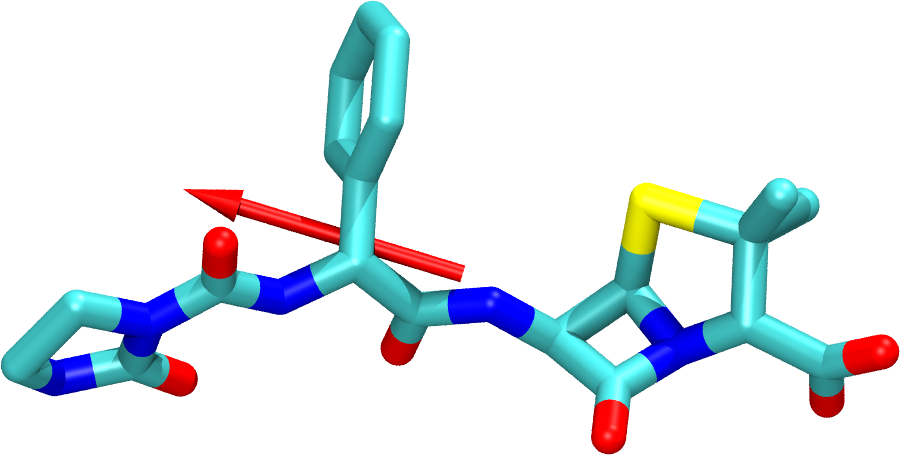

Dipole in vacuum (Debye) | 27.96     [fig] |
COMPUTED MD PROPERTIES |
|

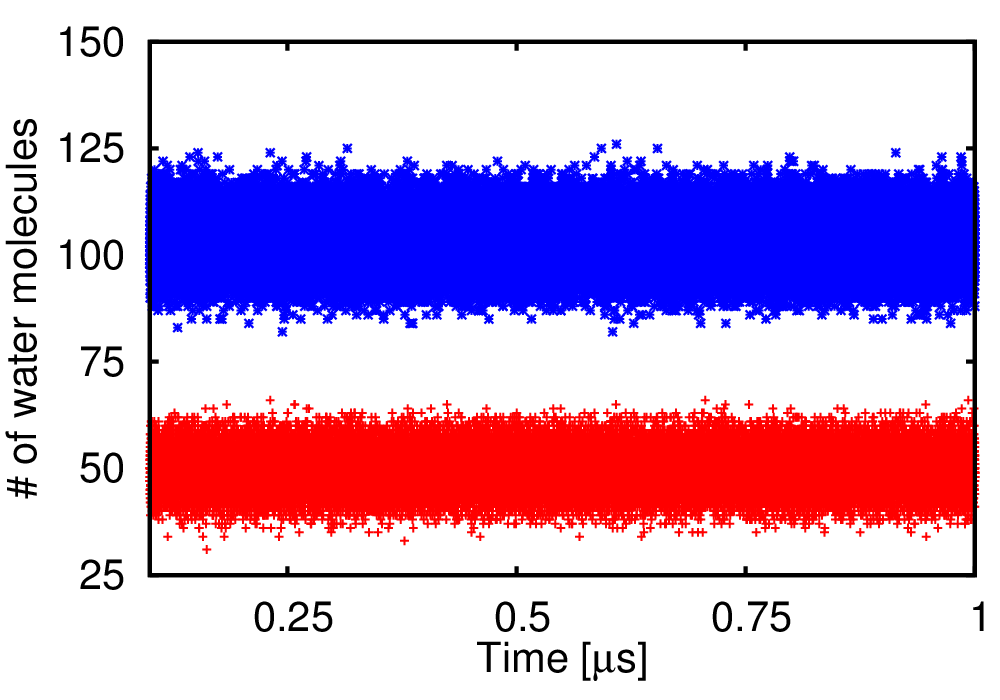

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] [tgz] |

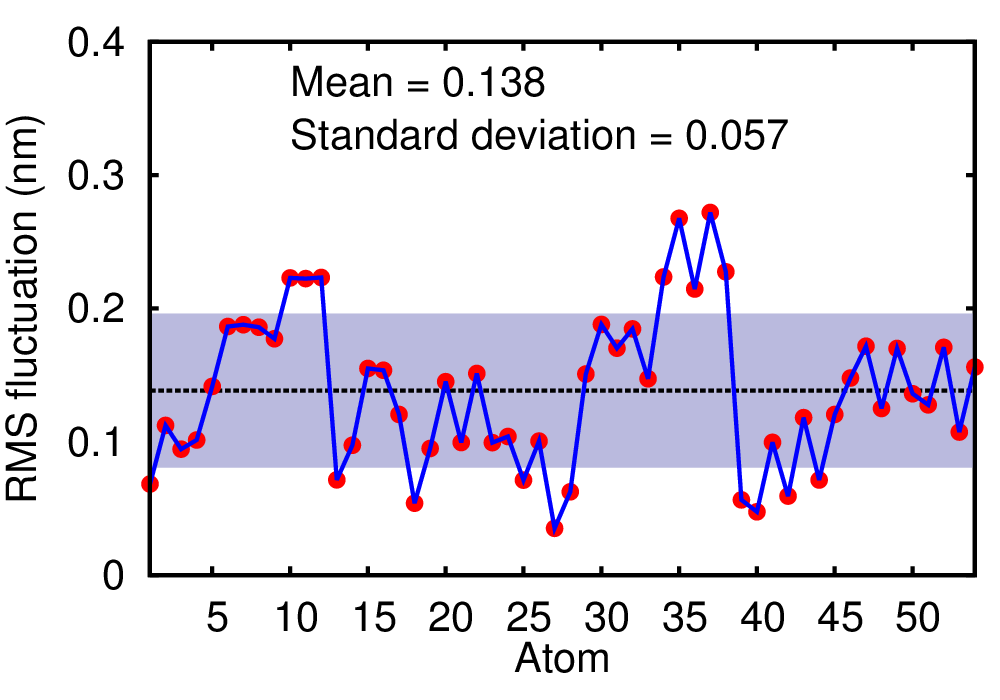

Root mean square fluctuation (nm) | mean=0.138   [data] [plot] |

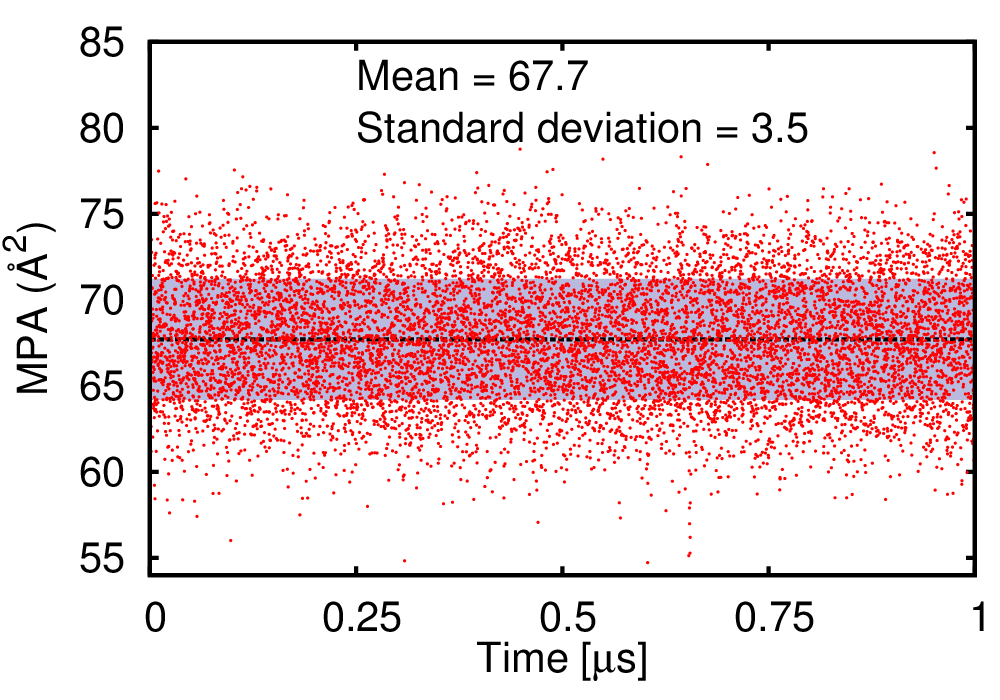

Minimal projection area (Å2) | mean=67.70   [data] [plot] |

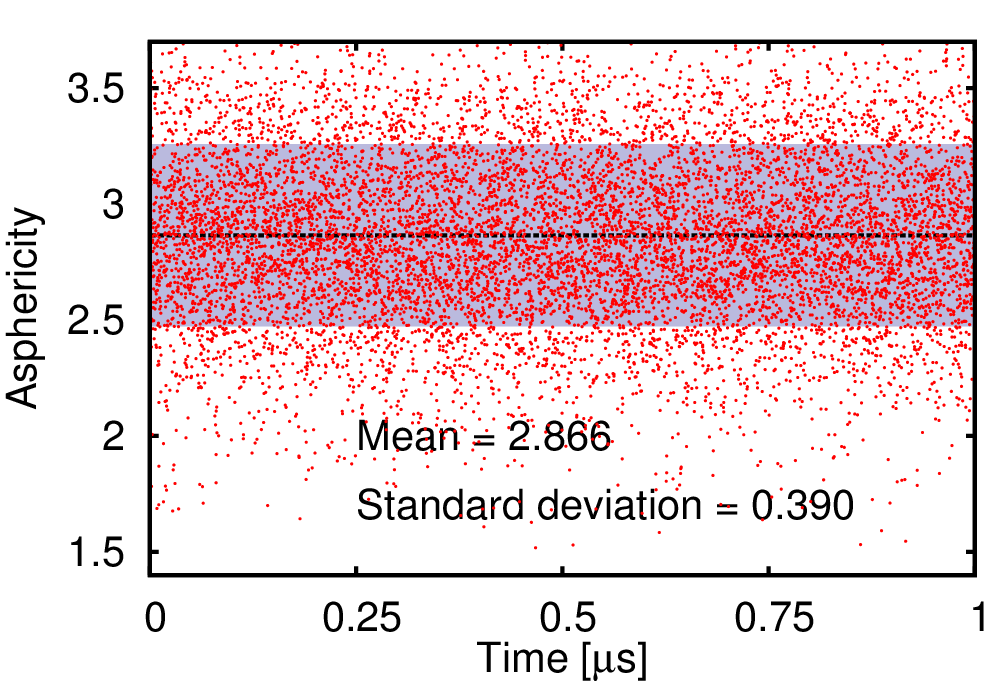

Asphericity | mean=2.866   [data] [plot] |

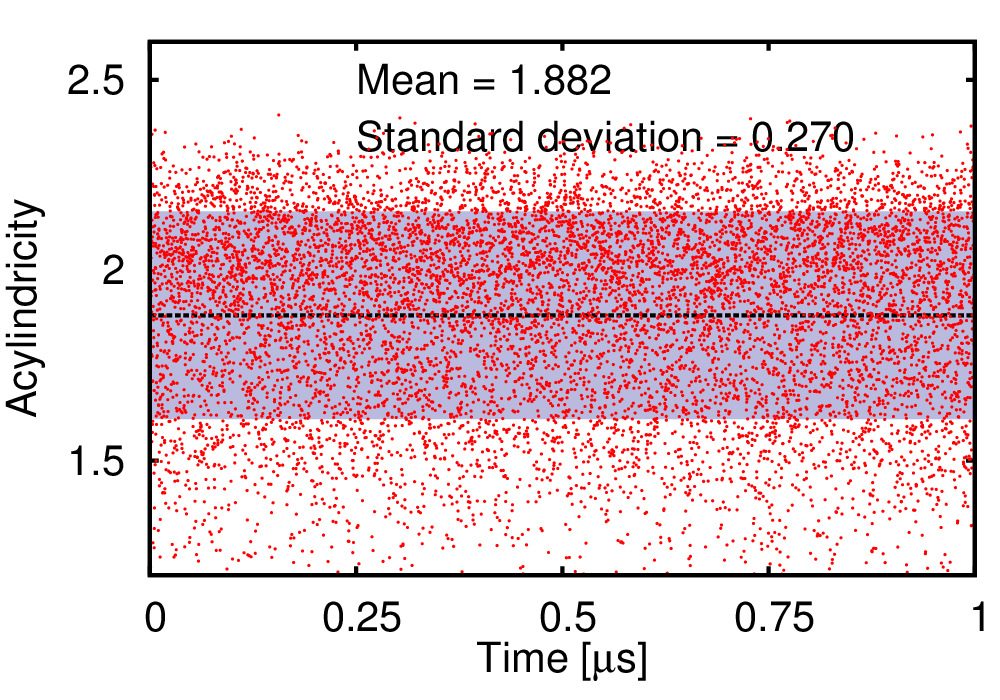

Acylindricity | mean=1.882   [data] [plot] |

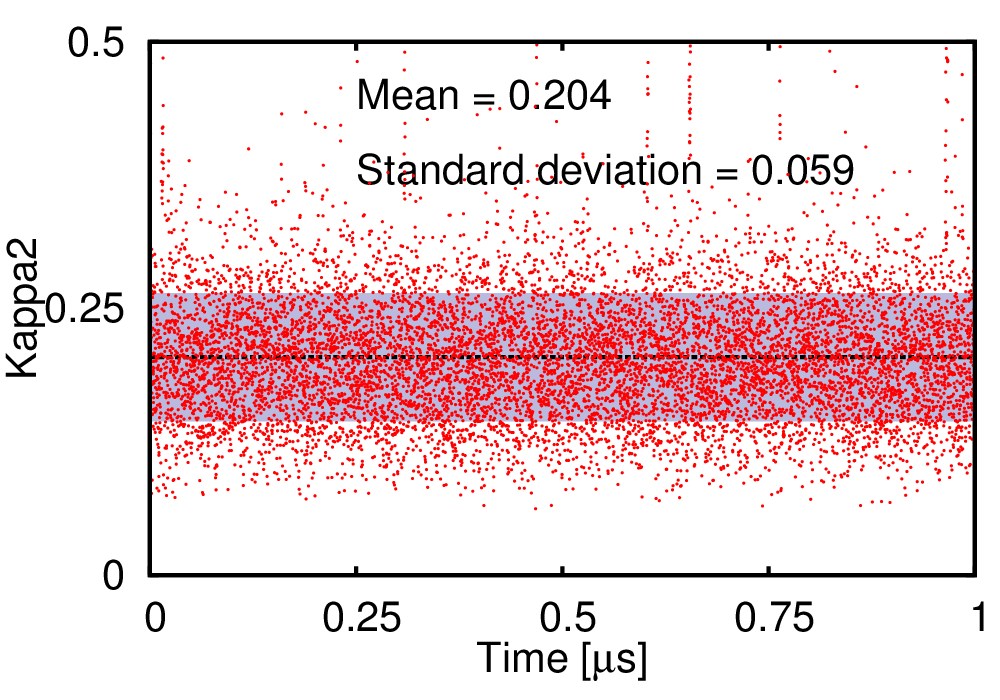

Kappa2 | mean=0.204   [data] [plot] |
External links |
[wiki]
[pubchem] |
