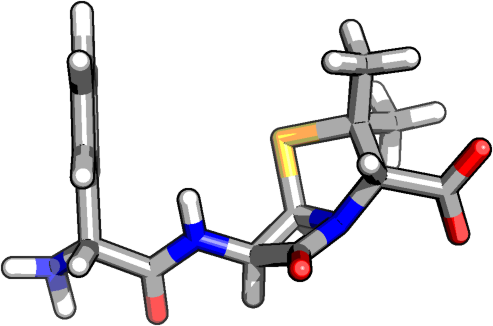

CLICK IMAGE TO ACTIVATE 3D |
FORCE-FIELD PARAMETERS |
|
GAFF files |
[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf] |
GENERAL PROPERTIES |
|

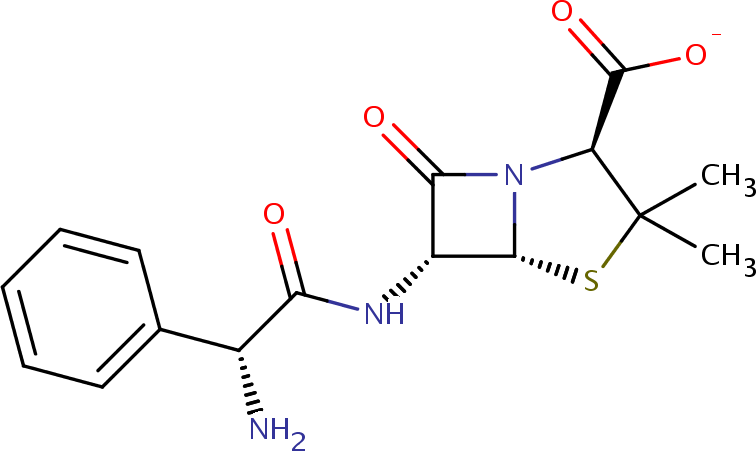

Molecular Formula | C16H18N3O4S |
Molecular Weight (Da) | 348.39682 |
# Atoms, heavy atoms, rotatable bonds | 42     24     4 |
# H-bond donors / acceptors | 2     5 |
Charge | -1 |

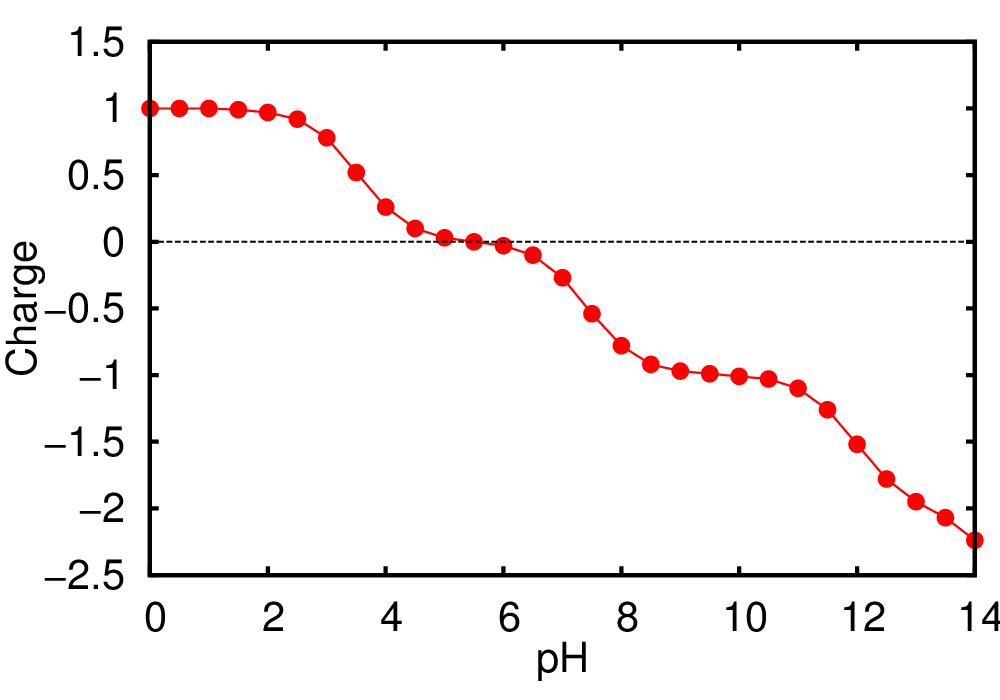

Isoelectric point | 5.49 [data] [plot] |
Van der Waals volume (Å3) | 299.28 |
logP (XLOGP3 CHEMAXON ALOGPS) | -1.13 [data] |

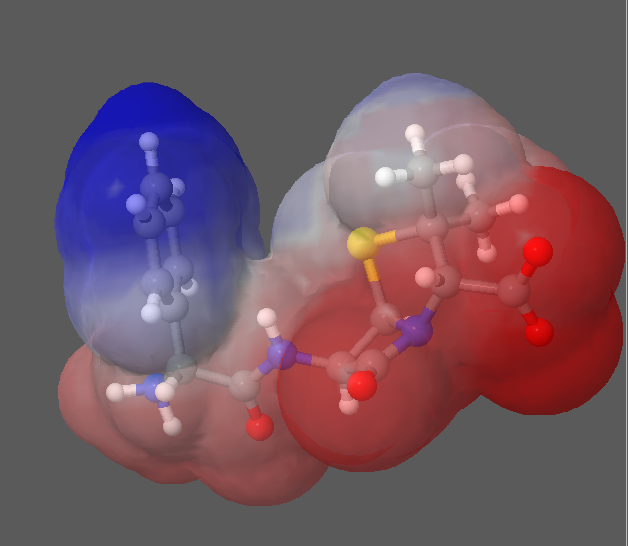

Molecular surface (Å2) | pol=192.62   nonpol=109.23   tot=301.85   [fig] |
COMPUTED QM PROPERTIES |
|
Optimized geometry | [xyz] [sdf] |
HOMO, LUMO, GAP (eV) | -5.47     -0.28     5.19 |

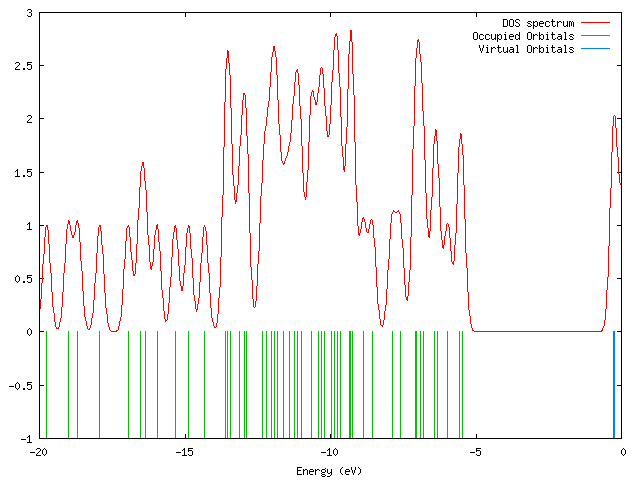

Orbital data | [data] [plot] |

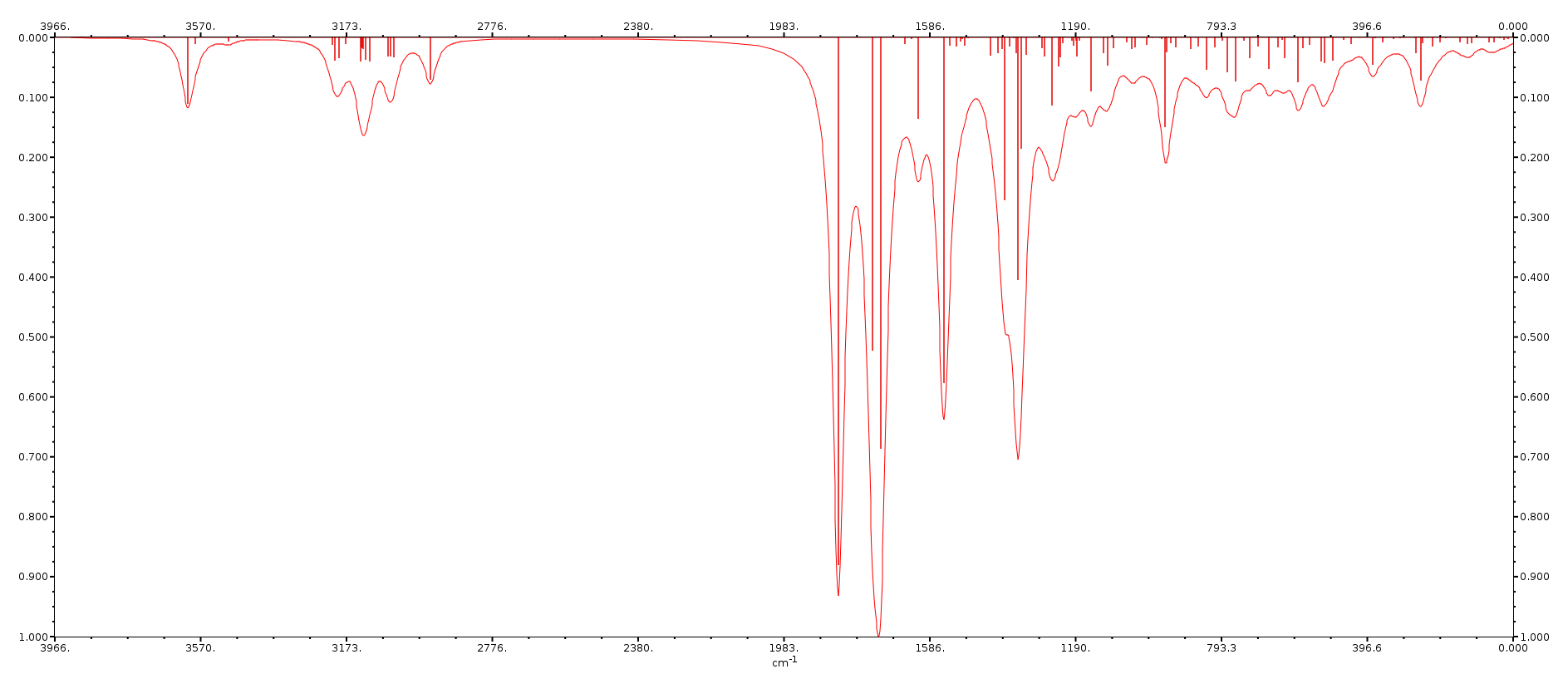

Vibrational properties | [data] [plot] |
Rotational constants (GHz) | A=0.39441   B=0.13369   C=0.11418 |

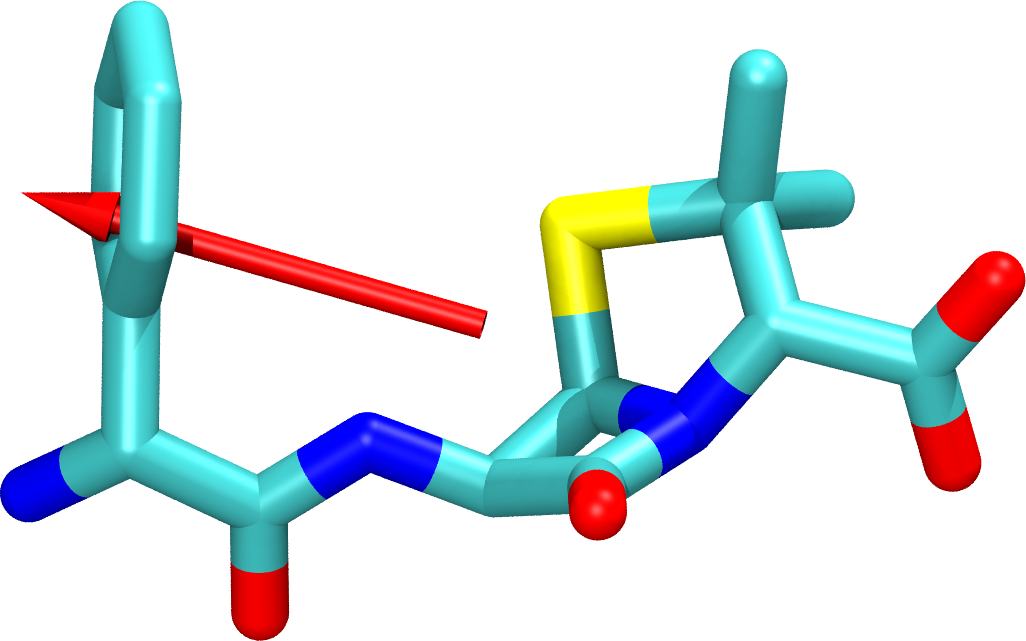

Dipole in vacuum (Debye) | 18.73     [fig] |
COMPUTED MD PROPERTIES |
|

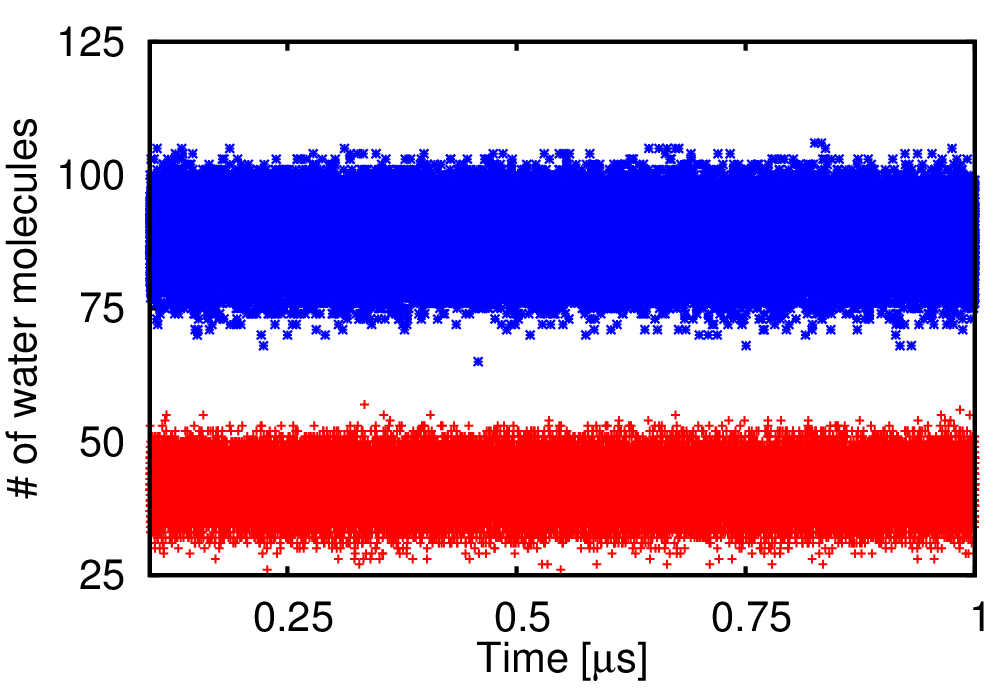

First and second water shells | [data] [plot] |
Intramolecular / water H-bonds | [data] [data] |
Cluster analysis | [txt] [pdb] |

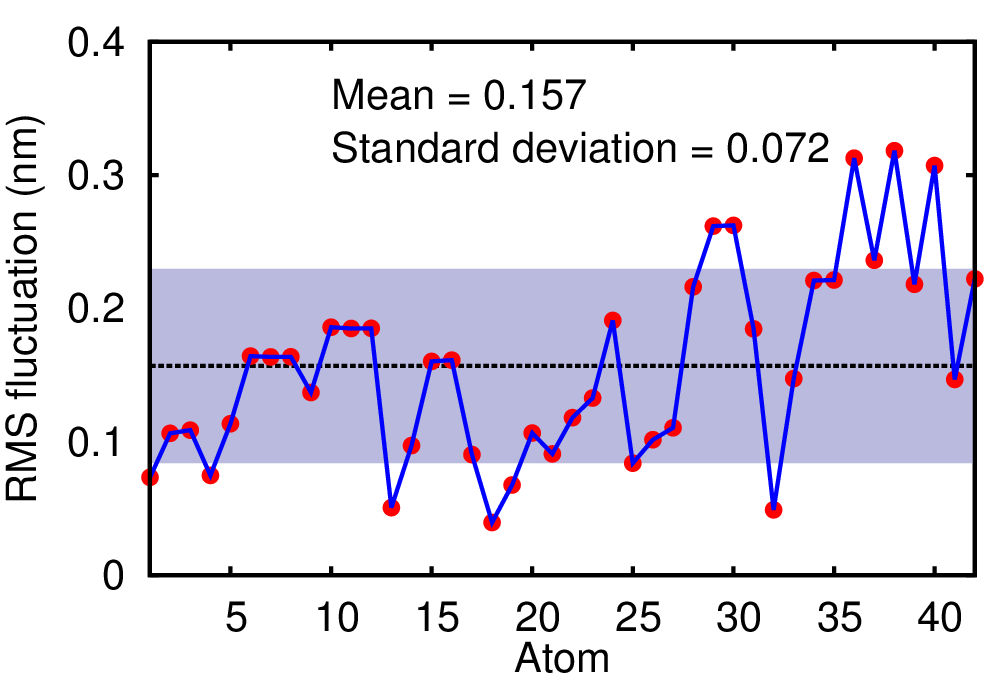

Root mean square fluctuation (nm) | mean=0.157   [data] [plot] |

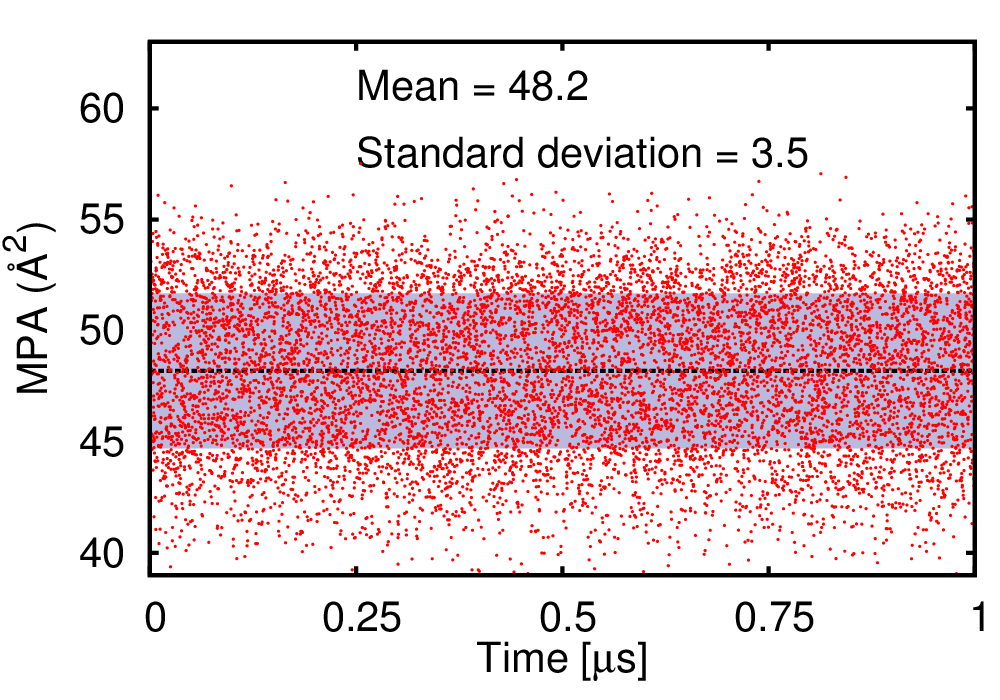

Minimal projection area (Å2) | mean=48.20   [data] [plot] |

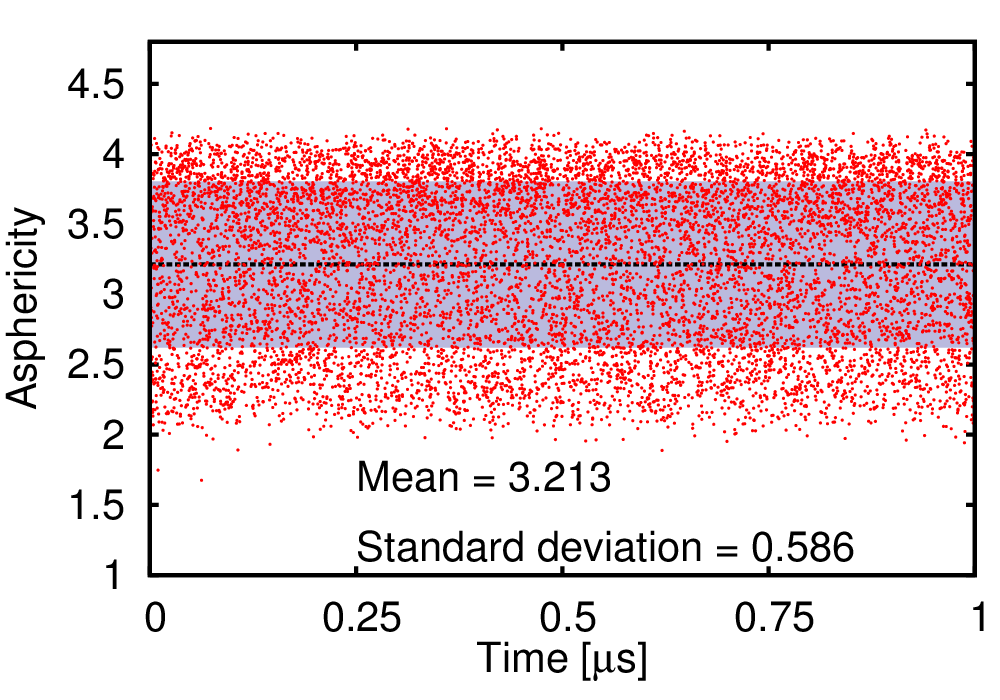

Asphericity | mean=3.213   [data] [plot] |

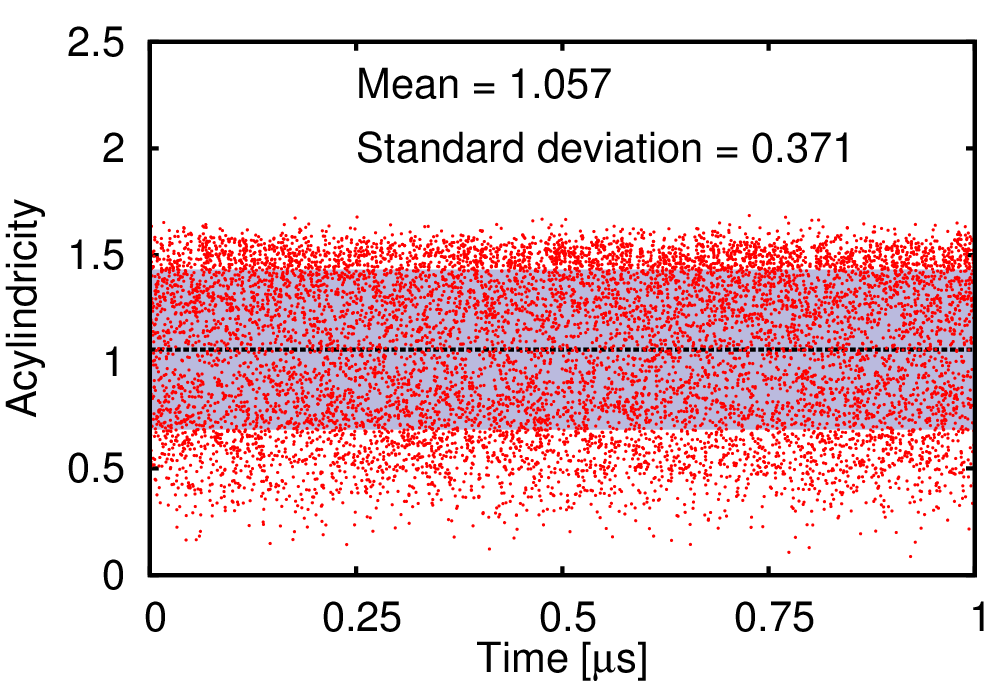

Acylindricity | mean=1.057   [data] [plot] |

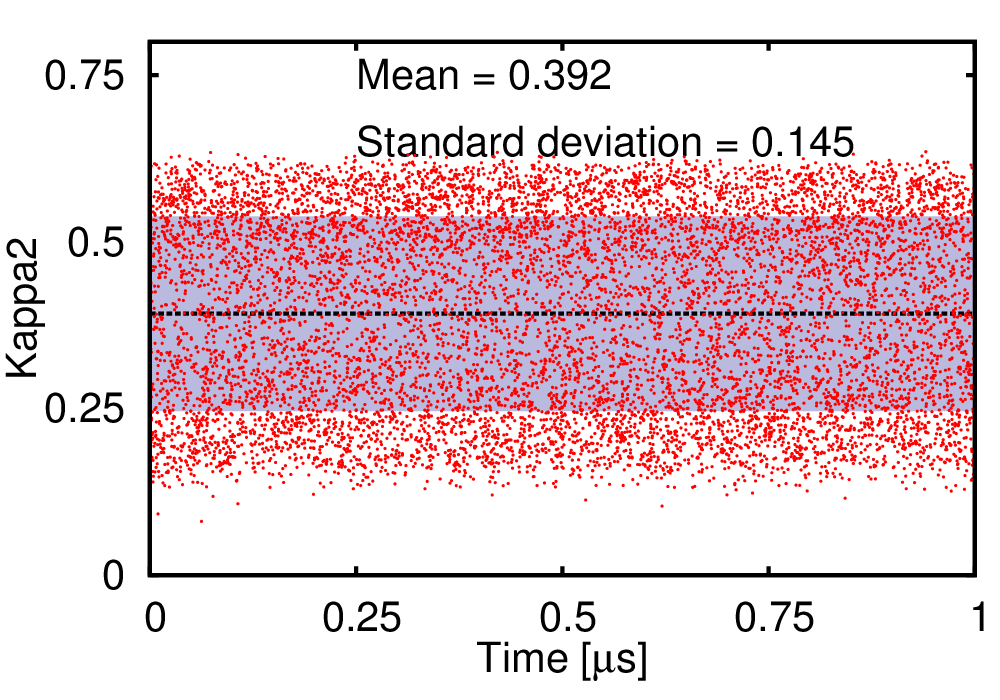

Kappa2 | mean=0.392   [data] [plot] |
External links |
[wiki]
[pubchem] |
