Ampicillin--

CLICK IMAGE TO ACTIVATE 3D

FORCE-FIELD PARAMETERS
GAFF files	[pdb] [frcmod] [prep_chelpg] [prep_mk] [prep_mk_hf]

GENERAL PROPERTIES

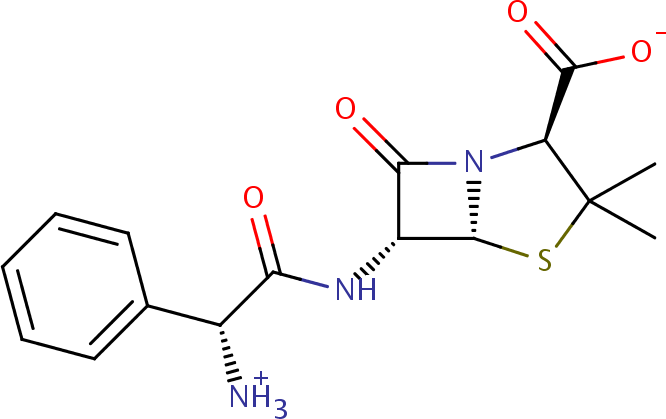

Molecular Formula	C16H17N3O4S
Molecular Weight (Da)	347.38888
# Atoms, heavy atoms, rotatable bonds	41     24     4
# H-bond donors / acceptors	1     6
Charge	-2
Isoelectric point	5.49 [data] [plot]
Van der Waals volume (Å3)	297.26
logP (XLOGP3 CHEMAXON ALOGPS)	-1.13 [data]

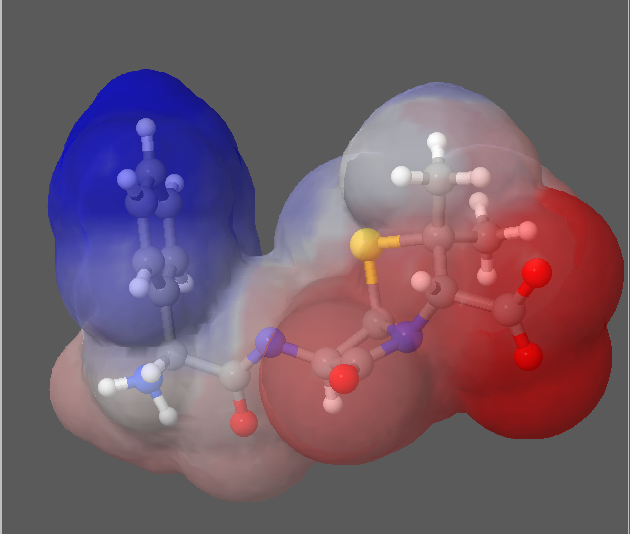

Molecular surface (Å2)	pol=133.40   nonpol=167.75   tot=301.15   [fig]
COMPUTED QM PROPERTIES

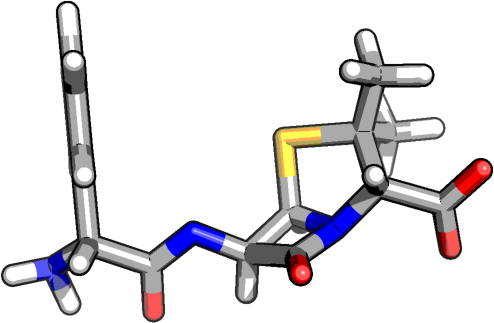

Optimized geometry	[xyz] [sdf]
HOMO, LUMO, GAP (eV)	-4.92     0.22     5.14

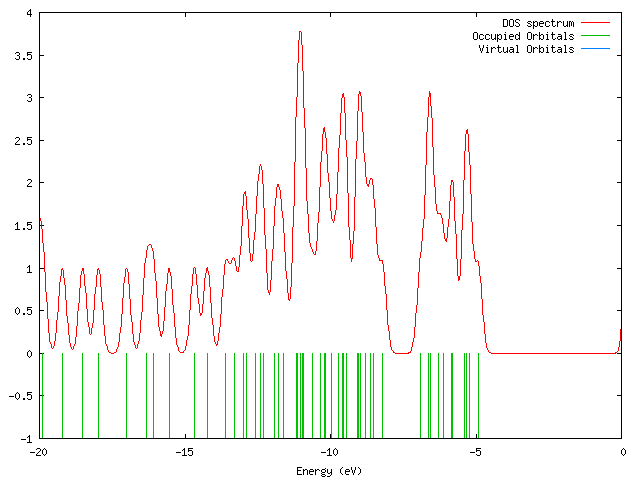

Orbital data	[data] [plot]

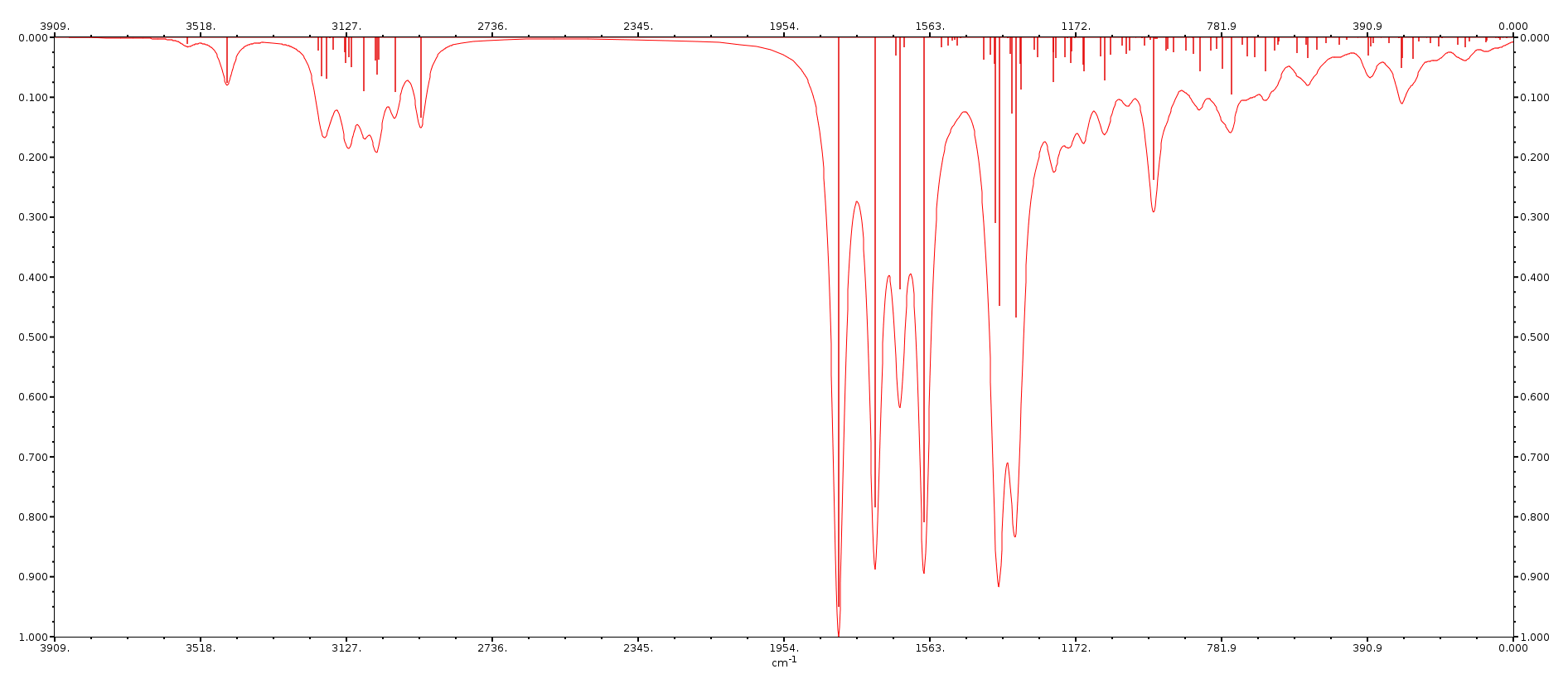

Vibrational properties	[data] [plot]
Rotational constants (GHz)	A=0.41305   B=0.12151   C=0.10358

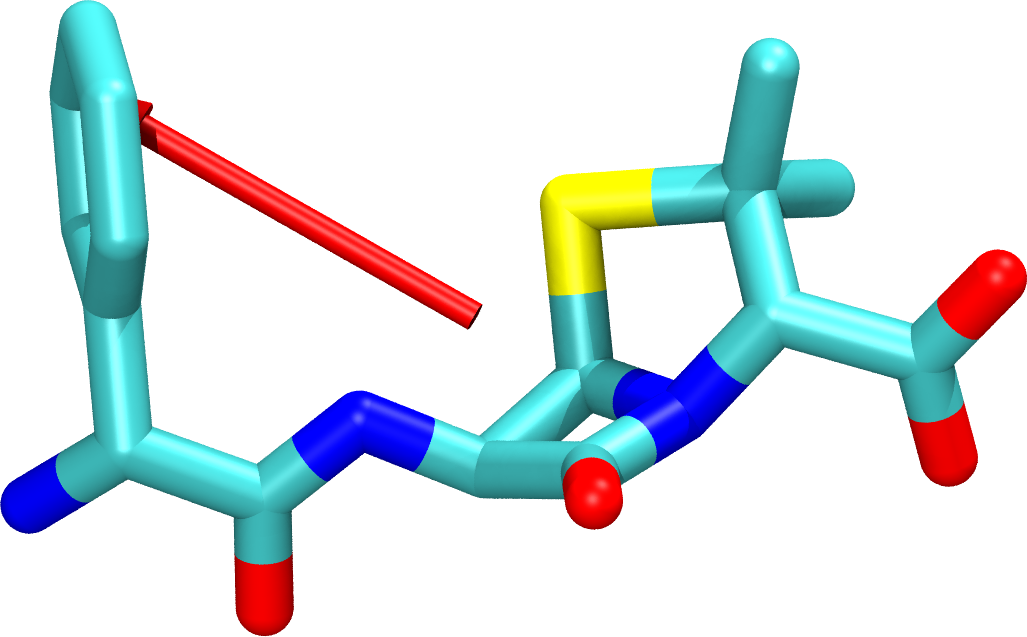

Dipole in vacuum (Debye)	14.58     [fig]
COMPUTED MD PROPERTIES

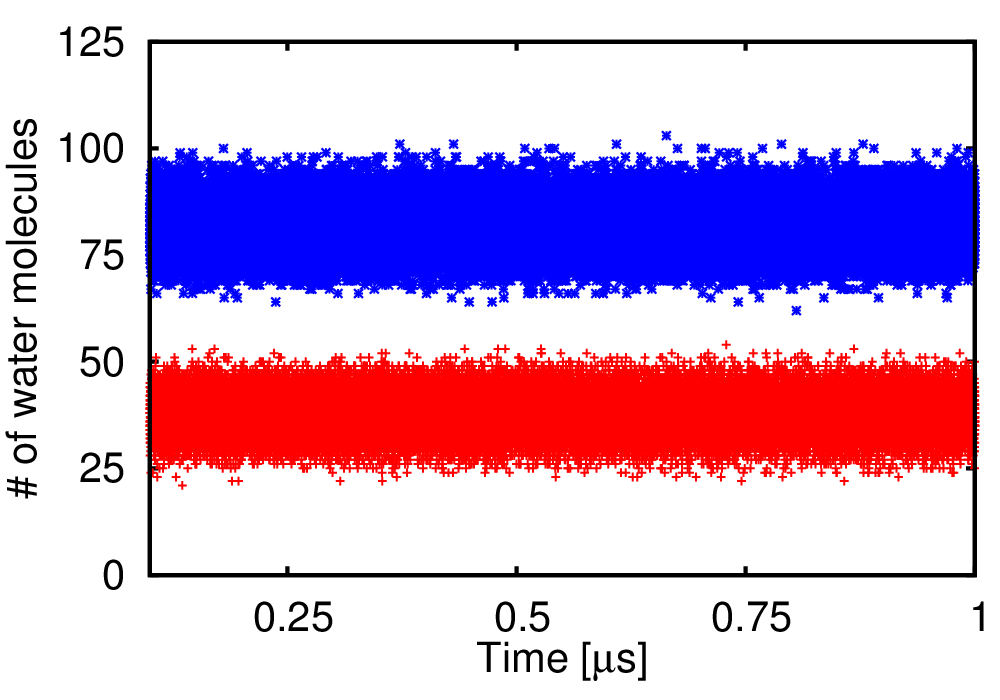

First and second water shells	[data] [plot]
Intramolecular / water H-bonds	[data] [data]
Cluster analysis	[txt] [pdb]

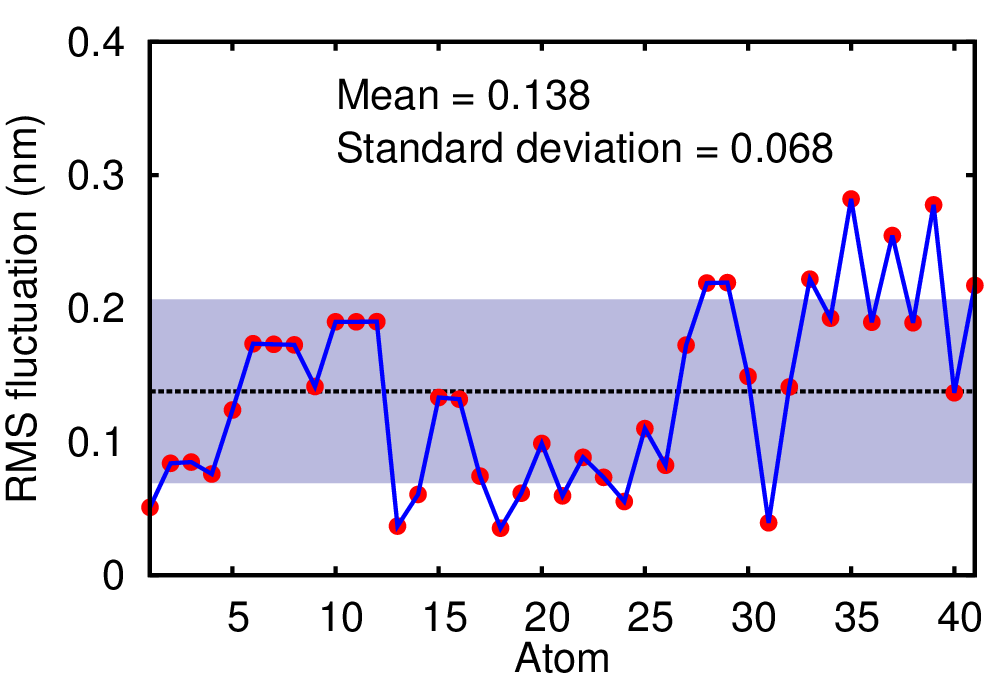

Root mean square fluctuation (nm)	mean=0.138   [data] [plot]

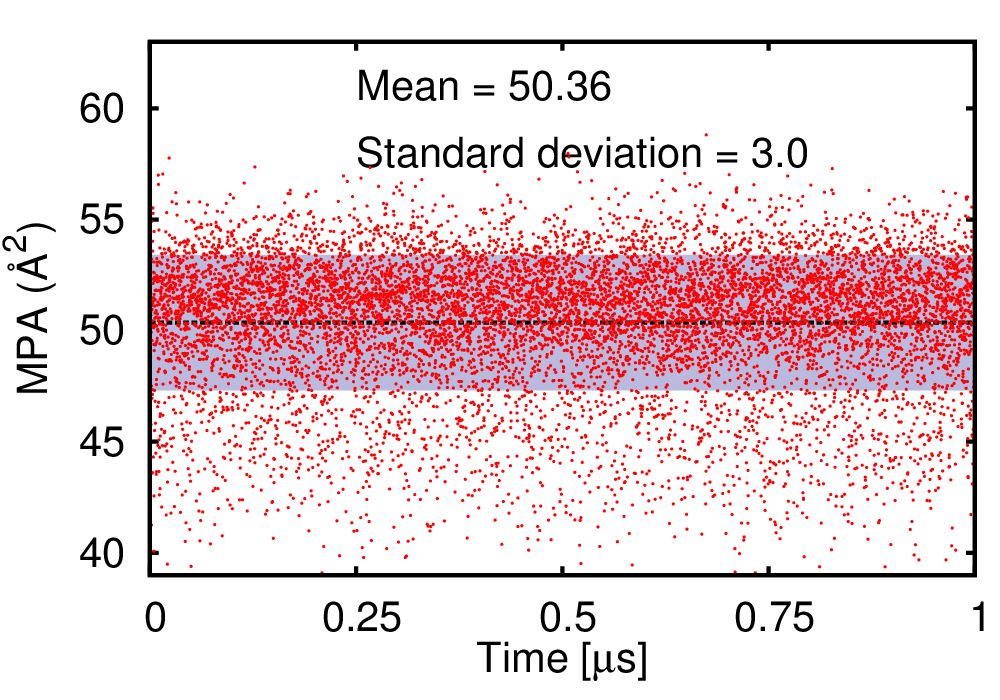

Minimal projection area (Å2)	mean=50.36   [data] [plot]

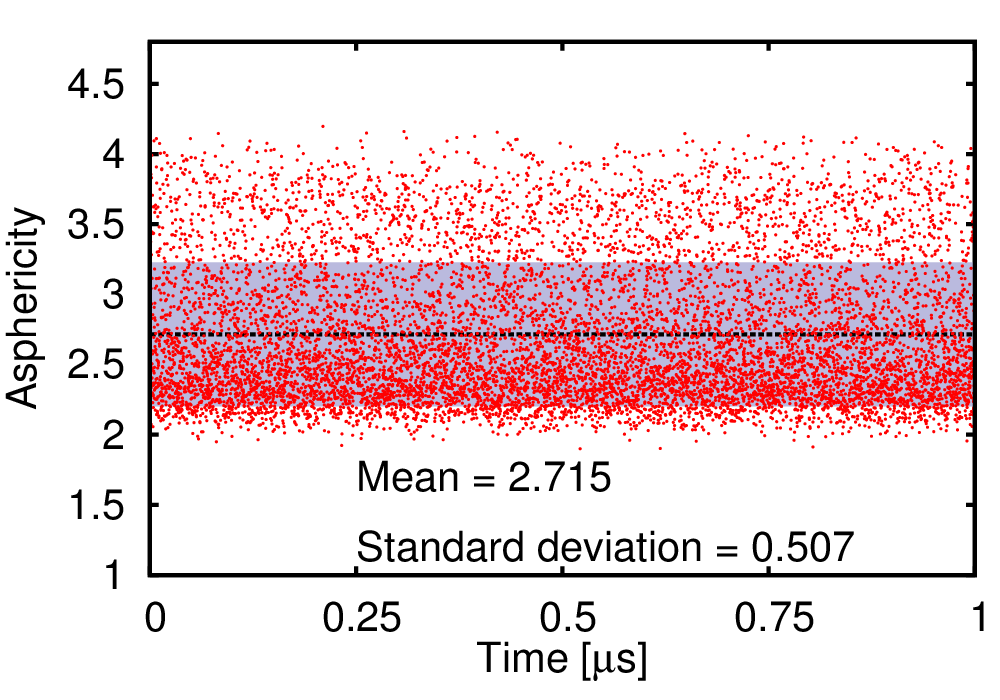

Asphericity	mean=2.715   [data] [plot]

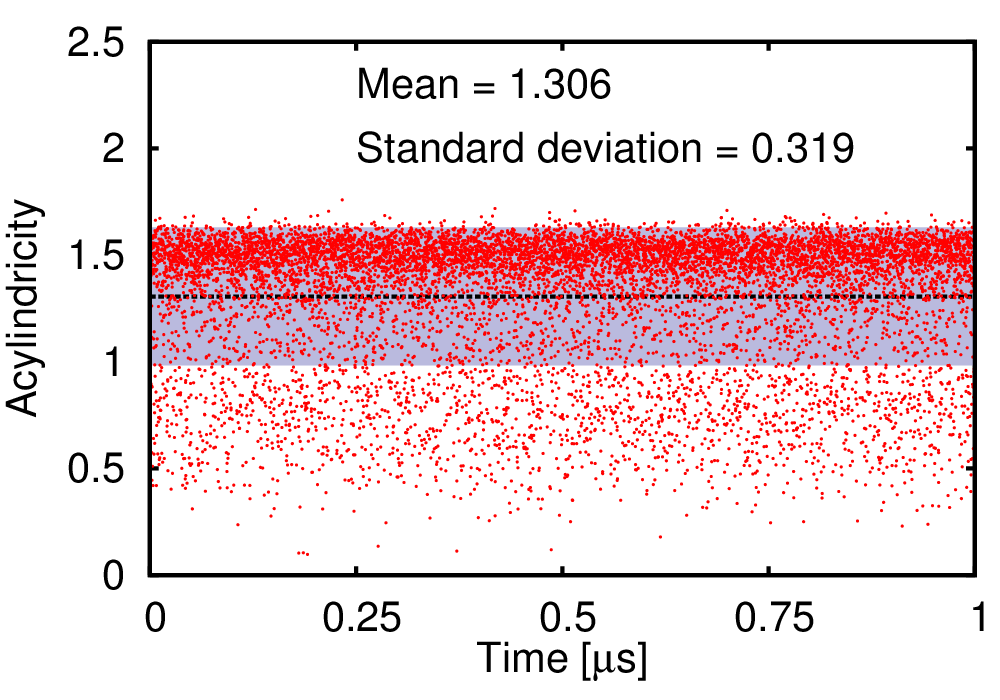

Acylindricity	mean=1.306   [data] [plot]

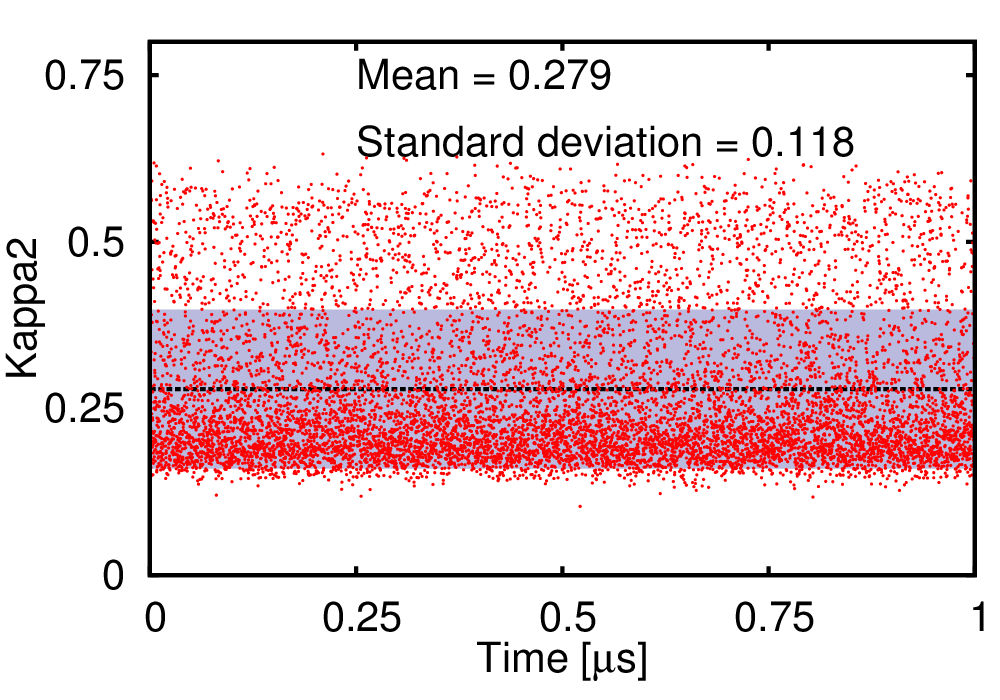

Kappa2	mean=0.279   [data] [plot]

External links

[wiki] [pubchem]

---
